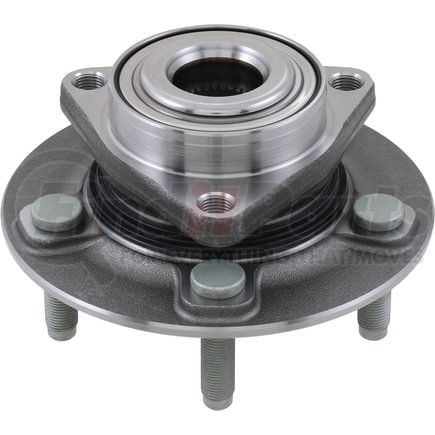

(888) 312-8812 Login SignupBCA WE61566 Gen 3 Wheel Hub Assembly
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
BCA WE61566 Part Description
Manufacturer
Product Description
Gen 3 Wheel Hub Assembly
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
BCA WE61566 Specifications
Product Attributes
| Knuckle Pilot Hole Diameter | 90 MM |
| Knuckle Bolt Circle Diameter | 4.961 IN |
| Knuckle Bolt Hole Size | 14 MM |
| Flange Quantity | 2 |
| 10496 | 1.5 MM |
| Spline Quantity | 33 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | 0.5625 IN |
| Wheel Pilot Diameter | 77.7 MM |
| Brake Pilot Diameter | 78.4 MM |
| Wheel Stud Quantity | 5 |
| Flange Shape | Modified Triangle |
| Anti Lock Braking System | No |
| Bearing Generation | Gen 3 |
| Drive Type | Driven |
| Bearing Type | Taper |
| Flange Offset | 1.843 IN |
| Weight | 5.05 Kg |
| Flange Diameter | 183 MM |
| Stud Thread Type | Fine |
| Stud Threads Per Inch | 18 |
| Bolt Circle Diameter | 139.7 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Harmonized Tariff Code (HTS) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00662810615661 |
| VMRS Code | 018005000 |
BCA WE61566 Cross References
| Brand | Part Number |
|---|---|
| Alltech Automotive | 515072 |
| Autopart International | 141149115 |
| CENTRIC | 400.67007, 402.66020 |
| CRS Automotive | NT515072 |
| Carquest | 94-49115 |
| Centric Parts | 400.67007E, 400.67007 |
| Chrysler | 52070321AA, 52070321AC, 68081028AA, 52070321AB |
| DT Components | 515072 |
| Dorman | 930-610 |
| Drive Tech America | NT515072 |
| DuraGo | 29515072 |
| Fenco | WH515072 |
| GMB | 7990172 |
| GSP | 126072 |
| MOOG Chassis Products | 515072 |
| MPA | WH515072 |
| Mevotech | TXF515072, H515072 |
| Parts Master | PM515072 |
| Parts Plus | P515072 |
| Power Train | PT515072 |
| Precision Bearing | 515072 |
| Raybestos Brakes | 715072 |
| SKF | BR930284 |
| Schaeffler | 102011, FW772 |
| Timken | HA500100 |
| WJB | WA515072 |
BCA WE61566 Fits Vehicles
- Suzuki Aerio (2002)
BCA WE61566 Customer Reviews
No reviews yet
Be the first to review this product!
BCA WE61566 Manufacturer Information
The Bearing Corporation of America (BCA®) is backed by over 100 years of experience supplying the American market with top-of-the-line wheel-end solutions. Headquartered in a 670,000-square-foot state-of-the-art facility in Illinois, BCA is renowned as the top supplier of automotive and medium-duty hub assemblies, seals, and bearings for various domestic and foreign applications. BCA products are designed for technicians that need replacement parts that fit right the first time they are installed. These OE solutions, which provide an exact fit, superior performance, unmatched durability, and longer service life, are products of BCA’s commitment to modern technological advancements and the brand’s design philosophy that focuses on performance.
BCA WE61566 Questions & Answers
No questions yet
Be the first to ask a question about this product!
