BCA WE60912 Part Description
Manufacturer
Product Description

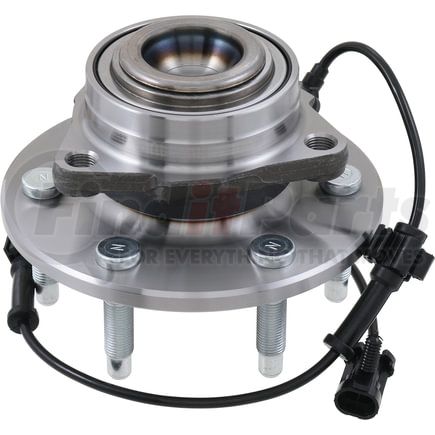

Gen 3 Wheel Hub Assembly
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
BCA WE60912 Specifications
Product Attributes
| Knuckle Pilot Hole Diameter | 3.91 IN |
| Knuckle Bolt Circle Diameter | 126 MM |
| Knuckle Bolt Hole Size | 14 MM |
| Flange Quantity | 2 |
| 10496 | 1.5 MM |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | 14 MM |
| Wheel Pilot Diameter | 3.063 IN |
| Brake Pilot Diameter | 78.4 MM |
| Wheel Stud Quantity | 6 |
| Flange Shape | Modified Triangle |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone Ring with Sensor |
| Bearing Generation | Gen 3 |
| Drive Type | Non-driven |
| Bearing Type | Taper |
| Flange Offset | 1.965 IN |
| Flange Diameter | 180 MM |
| Wheel Stud Thread Pitch | 1.5 MM |
| Bolt Circle Diameter | 139.7 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Harmonized Tariff Code (HTS) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00662810609127 |
| VMRS Code | 018005000 |
BCA WE60912 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | FW290, FW113, 515054 |
| Autopart International | 1411423158 |
| CENTRIC | 407.66005 |
| CRS Automotive | NT515054 |
| Carquest | 94-02566 |
| Centric Parts | 407.66005, 407.66005E |
| DT Components | 515054 |
| Dorman | 951-060, 951-046 |
| Drive Tech America | NT515054 |
| DuraGo | 29515054 |
| Fenco | WH515054 |
| GMB | 7300056, 7300237 |
| GSP | 106054 |
| General Motors | 15141239, 84356641, 15016169, 15102293, 15863442, 22818353, 10393164, 25840784 |
| MOOG Chassis Products | 515161, 515054 |
| MPA | WH515054 |
| Magneti Marelli | 1AMH515054 |
| Mevotech | H515054 |
| Parts Master | PM515054 |
| Parts Plus | P515054 |
| Power Train | PT515054 |
| Precision Bearing | 515054 |
| Raybestos Brakes | 715054 |
| SKF | BR930417, BR930762 |
| Schaeffler | 102187, 102730 |
| Timken | SP550305, SP450703, HA592444, SP550306 |
| WJB | WA515054 |
BCA WE60912 Fits Vehicles
- Suzuki Aerio (2002)
BCA WE60912 Customer Reviews
No reviews yet
Be the first to review this product!
BCA WE60912 Manufacturer Information
The Bearing Corporation of America (BCA®) is backed by over 100 years of experience supplying the American market with top-of-the-line wheel-end solutions. Headquartered in a 670,000-square-foot state-of-the-art facility in Illinois, BCA is renowned as the top supplier of automotive and medium-duty hub assemblies, seals, and bearings for various domestic and foreign applications. BCA products are designed for technicians that need replacement parts that fit right the first time they are installed. These OE solutions, which provide an exact fit, superior performance, unmatched durability, and longer service life, are products of BCA’s commitment to modern technological advancements and the brand’s design philosophy that focuses on performance.
