(888) 312-8812 Login SignupRAYBESTOS 780254FZN Raybestos Element3 Coated Brake Rotor
$84.05
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 780254FZN Part Description
Manufacturer
Product Description

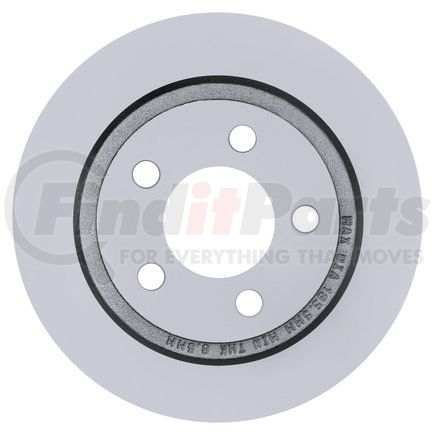

Raybestos Element3 Coated Brake Rotor
Application Summary
2022-2006 Dodge Charger Rear, 2023-2005 Chrysler 300 Rear, 2022-2009 Dodge Challenger Rear, 2008-2005 Dodge Magnum Rear
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 780254FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.86 IN |
| Center Hole Diameter | 72.65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.335 IN |
| Discard Thickness | 8.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.87 IN |
| Inside Diameter | 199.9 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 0.658 IN |
| Mounting Bolt Hole Diameter | 16.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 12.595 IN |
| Outside Diameter | 319.9 MM |
| Overall Height | 2.635 IN |
| Overall Height | 66.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309990 |
| UPC | 00887213091588 |
RAYBESTOS 780254FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH145567, YH145567C, YH145567P |
| ADVICS | P6R214U |
| AUTOPARTSOURCE | 591025 |
| AUTOXTRA | 80780254, AX53021 |
| AUTOZONE | 53021DG |
| AutoZone | 53021 |
| BENDIX | 145567 |
| BOSCH | 16010287 |
| BRAKEBEST | 16010287, 780254, 780254FZN, 780254R, 780254RGS |
| BREMBO | 08.A403.10, 27353 |
| BrakeBest | 712103RGS |
| Brembo | 08.A403.11 |
| CENTRIC | 120.63060, 121.63060, 125.63060, 125.63060CRY, 126.63060CSL, 126.63060CSR, 126.63060SL, 126.63060SR, 127.63060L, 127.63060R, 127.63060CL, 127.63060CR, 128.63060CL, 128.63060CR, 128.63060L, 128.63060R, 227.63060L, 227.63060R, 320.63060, 321.63060, 120.6306 |
| CHRYSLER | 04779208AB, 04779208AE, 04779208AG, 4779208AA, 4779208AB, 4779208AC, 4779208AD, 4779208AE, 4779208AF, 4779208AG, 4779208AH, 68368070AA |
| Casting Numbers | 204302063, 211650-C, 326206 |
| Centric Parts | 120.63060, 121.63060, 125.63060, 125.63060CRY, 126.63060CSL, 126.63060CSR, 126.63060SL, 126.63060SR, 127.63060CL, 127.63060CR, 127.63060L, 127.63060R, 128.63060CL, 128.63060CR, 128.63060L, 128.63060R, 227.63060L, 227.63060R, 320.63060, 321.63060 |
| DURA CORP | BR53021, BR5302102 |
| Dura Corp | BR901036 |
| DuraGo | BR53021, BR5302102, BR901036 |
| Eurorotor | 53213 |
| MIGHTY DISTRIBUTING SYSTEM | 53021 |
| MONROE BRAKES | BD126264 |
| NEWTEK AUTOMOTIVE | 53021 |
| Newtek Automotive USA | 53021 |
| POWERSTOP | AR8361EVC |
| PROMAX | 14-53021 |
| Qualis | 53021 |
| TRW | 6027 |
| TopNotch | TN780254GEO |
| UAP | 2053021, 53021 |
| Ultra Brake | 53213 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51669 |
| WABCO | PS126264 |
| WABCO - Archived | PS126264 |
| WAGNER BRAKE | BD126264, BD126264E |
| WINHERE | 661698 |
| WORLDPAC | 1407-26849, 1427-731848 |
| Winhere | 6612103 |
RAYBESTOS 780254FZN Fits Vehicles
- Dodge Challenger (2009-2023)
- Dodge Charger (2006-2023)
- Chrysler 300 (2005-2023)
- Dodge Magnum (2005-2008)
