CENTRIC 125.63060 Part Description
Manufacturer
Product Description
Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

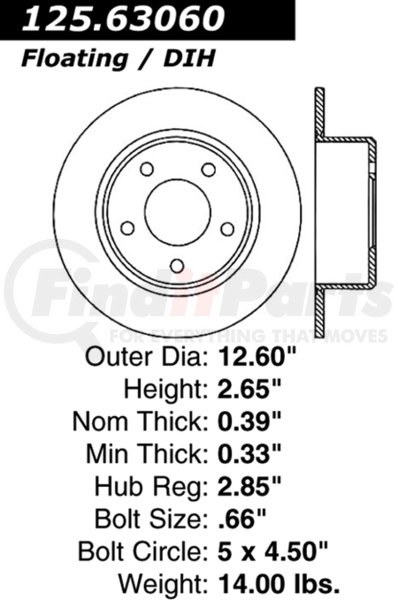

CENTRIC 125.63060 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.360 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] In | 6.075 |
| Max Pb Drum Dia [cntrc] In | 7.303 |
| Disc Mounting [cntrc] | Floating / DIH |
| Hat Id [cntrc] Mm | 154.300 |
| Weight [cntrc] Lbs | 14.000 |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] Mm | 185.500 |
| Discard Thickness | 8.500 MM |
| Discard Thickness | 0.335 IN |
| Nominal Thickness | 10.000 MM |
| Nominal Thickness | 0.394 IN |
| Hat Finish | Painted |
| Overall Height | 2.646 IN |
| Overall Height | 67.200 MM |
| Outside Diameter | 320.000 MM |
| Outside Diameter | 12.598 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 183.900 MM |
| Nominal Drum Diameter | 7.240 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.854 IN |
| Center Hole Diameter | 72.500 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.657 IN |
| Stud/Lug Hole Diameter | 16.700 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890439141 |
CENTRIC 125.63060 Cross References
CENTRIC 125.63060 Fits Vehicles
- Dodge Challenger (2009-2022)
- Dodge Charger (2006-2022)
- Chrysler 300 (2005-2022)
- Dodge Magnum (2005-2008)
