Raybestos 56593FZN - Raybestos Element3 Coated Brake Rotor & Hub Assy
$24599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
Product Description

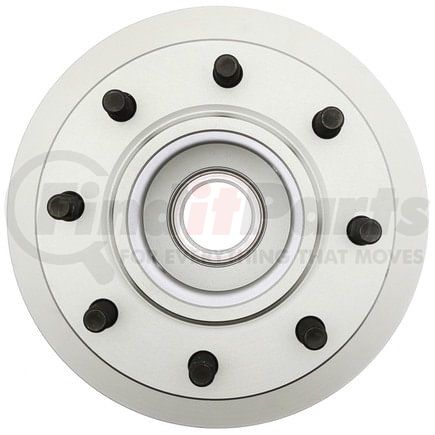

Raybestos Element3 Coated Brake Rotor & Hub Assy
Application Summary
2002-1996 Chevrolet Express 3500 Front, 2000-1995 Chevrolet C3500 Front, 2002-1996 GMC Savana 3500 Front, 2000-1995 GMC C3500 Front
Product Attributes
| ABS Tone Ring Included | Yes |
| Discard Thickness | 1.465 IN |
| Discard Thickness | 37.2 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Mounting Bolt Hole Diameter | 0.603 IN |
| Mounting Bolt Hole Diameter | 15.3 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.535 IN |
| Nominal Thickness | 39 MM |
| Overall Height | 8.197 IN |
| Overall Height | 208.2 MM |
| Salability Restrictions | No |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00887213144536 |
Part Interchanges
- General Motors 15691956
- General Motors 18039566
- General Motors 18060213
- General Motors 19152698
- General Motors 19202726
- Brembo 09.8447.85
- Brembo 27170
- Delphi RB734
- Mighty Distributing System 55032
- Universal 101701
- Wagner Brake BD125471
- ACDelco 177-0983
- ACDelco 177-768
- Bendix 145134
- Autospecialty AR8634
- Autospecialty AR8634E
- California Drum & Rotor 125471
- Eurorotor 55768
- Guardian 52-125471
- Quality Brand 55032
- VIPAR - Vehicle Indusrty Parts & Manufacturing X51229
- BrakeBest 56593
- BrakeBest 56593FZN
- BrakeBest 56593R
- BrakeBest 56593RGS
- BrakeBest 81-125471
- BrakeBest BD125471
- Centric Parts 120.66034
- Centric Parts 121.66034
- Centric Parts 125.66034
- Centric Parts 126.66034CSL
- Centric Parts 126.66034CSR
- Centric Parts 126.66034SL
- Centric Parts 126.66034SR
- Centric Parts 320.66034F
- WABCO - Archived PS125471
- AutoZone 55032
- Monroe Brakes BD125471
- Advance Auto Parts 145134
- Advance Auto Parts G12456SD
- Advance Auto Parts YH145134
- American Remanufactured 789-44034
- American Remanufactured 89-44034
- Autoxtra 8056593
- Autoxtra AX55032
- Casting Numbers 204873
- Casting Numbers 211145-C
- Casting Numbers 325437
- Dura Corp BR55032
- Continental-ContiTech CW39702
- Standard Rotors and Drums 55032
- GREN 671603
- Qualis 55032
- Winhere 443112
- Winhere YH3112
- Newtek Automotive USA 55032
- Pep Boys 55032G
- Formula Blue Hydraulic Brake Parts E12671039
- Promax 14-55032
- UAP 55032
- DuraGo BR55032
RAYBESTOS 56593FZN Cross Reference
We have 57 alternatives for the 56593FZN by RAYBESTOS:
- ACDELCO 177-0983
- ACDELCO 177-768
- AUTOSPECIALTY AR8634
- AUTOSPECIALTY AR8634E
- BENDIX 145134
- DELPHI RB734
- GM 15691956
- GM 18060213
- GM 18039566
- GM 19152698
- GM 19202726
- THE UNIVERSAL GROUP 101701
- WABCO PS125471
- ADVANCE AUTO PARTS 145134
- ADVANCE AUTO PARTS G12456SD
- ADVANCE AUTO PARTS YH145134
- AMERICAN REMANUFACTURED 789-44034
- AMERICAN REMANUFACTURED 89-44034
- AUTOXTRA 8056593
- AUTOXTRA AX55032
- AUTOZONE 55032
- BRAKEBEST 56593
- BRAKEBEST 56593FZN
- BRAKEBEST 56593R
- BRAKEBEST 56593RGS
- BRAKEBEST 81-125471
- BRAKEBEST BD125471
- BREMBO 09.8447.85
- BREMBO 27170
- CALIFORNIA DRUM & ROTOR 125471
- CENTRIC 120.66034
- CENTRIC 121.66034
- CENTRIC 125.66034
- CENTRIC 126.66034CSL
- CENTRIC 126.66034CSR
- CENTRIC 126.66034SL
- CENTRIC 126.66034SR
- CENTRIC 320.66034F
- CONTINENTAL-CONTITECH CW39702
- DURA CORP BR55032
- EUROROTOR 55768
- FORMULA BLUE HYDRAULIC BRAKE PARTS E12671039
- GREN 671603
- GUARDIAN 52-125471
- MIGHTY DISTRIBUTING SYSTEM 55032
- MONROE BRAKES BD125471
- NEWTEK AUTOMOTIVE 55032
- PEP BOYS 55032G
- PROMAX 14-55032
- QUALIS 55032
- QUALITY BRAND 55032
- STANDARD ROTORS AND DRUMS 55032
- UAP 55032
- VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING X51229
- WAGNER BRAKE BD125471
- WINHERE 443112
- WINHERE YH3112
Fits Vehicles
- GMC Savana 3500 (1996-2002)
- GMC C3500 (1995-2000)
- Chevrolet Express 3500 (1996-2002)
- Chevrolet C3500 (1995-2000)
