Centric 120.66034 - Centric Premium Brake Rotor
$32449
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

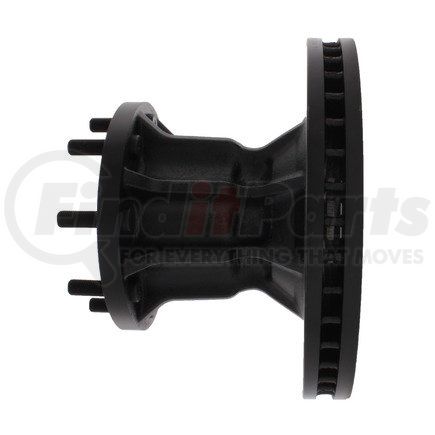

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 22.270 |
| Inner Seal # [cntrc] | 417.66008 |
| Misc Holes [cntrc] | 0 |
| Outer Race # [cntrc] | 416.66000 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Outer Bearing # [cntrc] | 415.66000 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 49.000 |
| Inner Bearing # [cntrc] | 410.91035 |
| Discard Thickness | 37.210 MM |
| Discard Thickness | 1.465 IN |
| Nominal Thickness | 39.100 MM |
| Nominal Thickness | 1.539 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 208.200 MM |
| Overall Height | 8.197 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 317.400 MM |
| Rotor Outside Diameter | 12.496 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 116.000 MM |
| Center Hole Diameter | 4.567 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890043898 |
Part Interchanges
CENTRIC 120.66034 Cross Reference
We have 5 alternatives for the 120.66034 by CENTRIC:
Fits Vehicles
- Chevrolet C3500 (1995-2000)
- GMC Savana 3500 (1996-2002)
- GMC G3500 (1996)
- GMC C3500 (1995-2000)
- Chevrolet G30 (1996)
- Chevrolet Express 3500 (1996-2002)
