(888) 312-8812 Login SignupRAYBESTOS 56919FZN Raybestos Element3 Coated Brake Rotor
$106.43
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 56919FZN Part Description
Manufacturer
Product Description

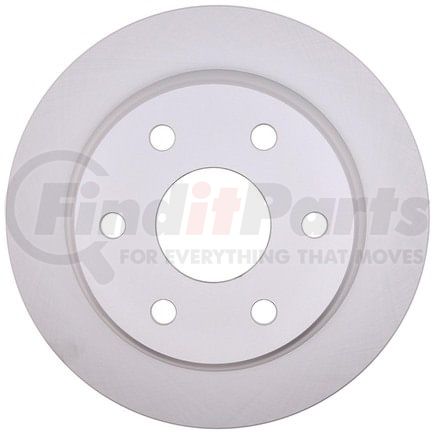

Raybestos Element3 Coated Brake Rotor
Application Summary
2003-2000 GMC Yukon XL 1500 Rear, 2002 GMC Sierra 1500 Rear, 2003-2002 Cadillac Escalade Rear, 2000 Chevrolet Suburban 1500 Rear, 2006-2000 Chevrolet Sonora Rear
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 56919FZN Specifications
Product Attributes
| Center Hole Diameter | 3.09 IN |
| Center Hole Diameter | 78.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.122 IN |
| Discard Thickness | 28.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.645 IN |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.185 IN |
| Nominal Thickness | 30.1 MM |
| Outside Diameter | 13 IN |
| Outside Diameter | 330.2 MM |
| Overall Height | 3.76 IN |
| Overall Height | 95.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213144550 |
RAYBESTOS 56919FZN Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-870 |
| ADVANCE AUTO PARTS | 145282, N1000191788BRC, YH145282, YH145441C, YH145441P |
| AMERICAN REMANUFACTURED | 89-44045 |
| AUTOPARTSOURCE | 593075, 593545 |
| AUTOSPECIALTY | AR8645, AR8645E |
| AUTOXTRA | 8056919, AX55067 |
| AUTOZONE | 55067, 55067DG, 55067DL, DL55067 |
| Advance Auto Parts | G12489SD |
| Autoxtra | AX55067P |
| BENDIX | 145282 |
| BRAKEBEST | 56919, 56919FZN, 56919PER, 56919R, 56919RGS |
| BREMBO | 09.8608.80, 27050, 27285 |
| CENTRIC | 120.66045CRY, 125.66045, 125.66045CRY |
| Casting Numbers | 15727134, 211276-C, 325516 |
| Centric Parts | 120.66045CRY, 125.66045, 125.66045CRY, 120.66045, 121.66045, 320.66045 |
| DURA CORP | BR55067, BR5506702 |
| DuraGo | BR55067, BR55067-02 |
| GM | 15712802, 15727134 |
| GUARDIAN | 52-125735 |
| General Motors | 15712802, 15727134 |
| MIGHTY DISTRIBUTING SYSTEM | 55067 |
| NEWTEK AUTOMOTIVE | 55067 |
| Newtek Automotive USA | 55067 |
| PROMAX | 14-55067 |
| QUALIS | 55067 |
| QUALITY BRAND | 55067, Q4036 |
| STANDARD ROTORS AND DRUMS | 55067 |
| THE UNIVERSAL GROUP | 101599 |
| TopNotch | TN56919GEO |
| UAP | 55067 |
| Universal | 101599 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51318 |
| WAGNER BRAKE | BD125735 |
| WINHERE | 662661, YH2661 |
RAYBESTOS 56919FZN Fits Vehicles
- Cadillac Escalade (2002-2003)
- Chevrolet Sonora (2000-2006)
- Chevrolet Suburban 1500 (2000)
- GMC Sierra 1500 (2002)
- GMC Yukon XL 1500 (2000-2003)
