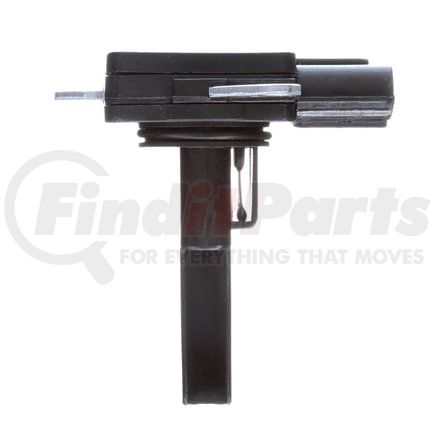

(888) 312-8812 Login SignupDELPHI AF10344 Mass Air Flow Sensor
MSRP: $142.66
$13949
Save $3.17
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI AF10344 Part Description
DELPHI AF10344 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black |
| Housing Included | No |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 65 MM |
| Sensor Casing Width | 44 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 49.20 MM |
| Mounting Hole Diameter | 4.6 MM |
| Seal Outside Diameter | 28 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.5 IN |
| Sensor Casing Width | 1.7 IN |
| Bolt Hole Center To Bolt Hole Center | 1.90 IN |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 1.1 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604242315 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10344 Part Interchanges
| Brand | Part Number |
|---|---|
| DENSO Auto Parts | 197-6120 |
| Spectra Premium | MA309 |
| BWD | 221208, MA1136 |
| Suzuki | 13800-80J00 |
| CARDONE Reman | 74-50069 |
| Standard Motor Products | MAS0306, MF21208 |
| NAPA Reman Computers | XTP450069 |
| N/A | DL-3101 |
DELPHI AF10344 Fits Vehicles
- Suzuki SX4 (2007-2009)
DELPHI AF10344 Cross References
We have 1 alternatives for the AF10344 by DELPHI:
