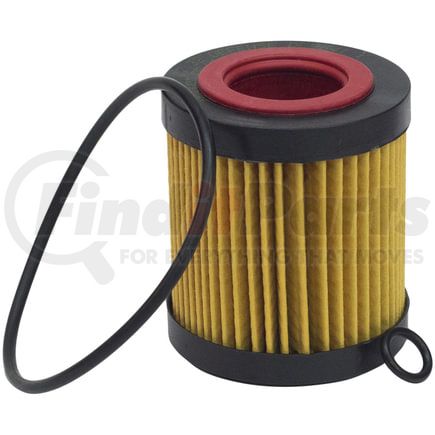

(888) 312-8812 Login SignupFRAM DL9641 Defense Filters, DL9641, Oil Filters
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM DL9641 Part Description
FRAM DL9641 Specifications
Product Attributes
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Media Material | Cellulose/Synthetic Blend |
| Filter Type | Cartridge |
| Grade | Advanced |
| Grade Type | Regular |
| Height | 2.952 IN |
| Inside Diameter Bottom | 1.084 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| Non Slip Grip | No |
| O-ring (1) Inside Diameter | 0.424 IN |
| O-ring (1) Outside Diameter | 0.527 IN |
| O-ring (1) Thickness | 0.103 IN |
| O-ring Inside Diameter | 3.109 IN |
| O-ring Outside Diameter | 3.247 IN |
| O-ring Thickness | 0.138 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.579 in |
| Outer Diameter Top | 2.579 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.084 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00009100537300 |
| UNSPSC | 15121501 |
FRAM DL9641 Cross References
| Brand | Part Number |
|---|---|
| A.L. Solutions U.S. | ALO-8135 |
| ACDelco | PF1703 |
| Baldwin | P7313 |
| Beck/Arnley | 041-0817 |
| Bosch | 3641, 72239WS |
| Carquest | 84203, R84203, R84203MP |
| Carquest Premium Filters | 84203 |
| Casite Filters | CF594 |
| Certified | CCH9641 |
| Champ | P960, P960XL |
| Champion | 55203T, COC9641 |
| Champion Filters | 55203T, COC9641 |
| Defense Filters | DL9641 |
| Driveworks | DW-5505 |
| ECOGARD | X5505 |
| EXXON/MOBIL OIL | M1C153, M1C153A |
| FRAM | CCH9641, CH9641, M1C-153A, M1C-153, XG9641, TG9641, DL9641 |
| FRAM Drive | FD9641 |
| FRAM Titanium | FS9641 |
| FRAM Tough Guard | TG9641 |
| FRAM Ultra Synthetic | XG9641 |
| FVP | G7203 |
| Factory Motor Parts | G7203 |
| Ford | 1S7G-6744-AC, 3M4G-6714-AA, 3M4G-6744-AA, 3M4Z-6714-AA, 3M4Z-6744-AC, 3S7Z-6731-A |
| Group 7 | V5505 |
| Hastings | LF594, LF594F |
| Havoline | T-59 |
| Installer Edge | AL9641, ALO17 |
| Inter-Continental Gear & Brake | ALO-8135 |
| K&N | HP-3003, HP-7013, PS-3003, PS-7013 |
| LUBER-FINER | P960 |
| MOBIL OIL | M1C153, M1C153A |
| Magneti Marelli | 1AMFL00022 |
| Mahle | OX203DECO |
| Mann-Filter | HU711/2, ML 1019 |
| Mazda | L321-14-300, L321-14-302, L321-14-302-9U, L321-14-302A-9U, LF01-14-302, M1C-153A |
| MicroGard | MGL57203, MGL9641 |
| Mighty Distributing System | M960 |
| Mileguard | CH9641, MO9641 |
| Mobil | MO5505 |
| Mobil 1 | M1C-153, M1C-153A |
| MotoMaster | MCH9641 |
| Motorcraft | FL-2017A, FL-2017B |
| NAPA Gold Filters | 7203 |
| NAPA Platinum Filters | 47203 |
| NAPA ProSelect Filters | 27203 |
| NAPA Silver Filters | 37203 |
| PUROLATOR | TL15505 |
| Parts Master | 67203, 67203BP |
| Pennzoil | PZ-159, PZ159 |
| Pentius | PCB9641, PZ159 |
| Performax | PO-159 |
| Pit Stop | PSL53 |
| Power Flo | SL15505 |
| Premium Guard | PG5505 |
| Prime Guard Filters - Archived | POF5505 |
| Pro-Tec | 190 |
| Promotive | PH5505 |
| Pronto | PO-5505 |
| PureZone | 8-57203 |
| Purolator | L15505 |
| Purolator PureONE | PL15505 |
| Purolator TECH | TL15505 |
| PurolatorONE | PL15505 |
| Quaker State | QS15505 |
| STP | S9641 |
| STP Filters | S9641, S9641XL |
| SUPERTECH | ST9641 |
| Service Champ | CF5505 |
| Service Pro | M5505 |
| Silverline | 27203 |
| Super Tech Filters | ST9641 |
| Tough Guard | TG9641 |
| Ultra | XG9641 |
| VIPER | 9641 |
| Valvoline | VO-80 |
| Wix | 57203, 57203XP |
FRAM DL9641 Fits Vehicles
- Suzuki Aerio (2002)
- Mazda Tribute (2008-2010)
- Mazda CX-7 (2007-2009)
- Mazda 5 (2006-2010)
- Mercury Milan (2006-2009)
- Ford Fusion (2006-2009)
- Mercury Mariner (2006-2010)
- Ford Escape (2005-2009)
- Mazda 3 (2004-2009)
- Mazda 6 (2003-2011)
FRAM DL9641 Customer Reviews
No reviews yet
Be the first to review this product!
FRAM DL9641 Manufacturer Information
FRAM® is all-set to "Filter out the Nonsense." With an origin that dates back to 1932, this brand has been globally recognized as the filter authority for its world-class filtering solutions that offer maximum engine protection, unparalleled filtering performance, and superior dirt-holding capacity. FRAM provides the industry with first-rate air filters, oil filters, heavy-duty commercial filters that help keep engines running efficiently, the way a well-filtered machine should. Among FRAM's popular products are the FRAM Extra Guard air filter, Fresh Breeze cabin air filter, Titanium oil filter, heavy-duty hydraulic, coolant, or fuel filters, and many others. Whether you are a fleet manager, a seasoned mechanic, or an experienced do-it-yourselfer, FRAM will provide you with filters that deliver efficiency, quality, reliability, performance, and durability at competitive prices.
