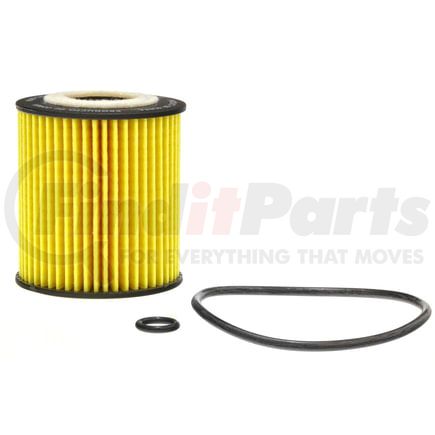

FRAM CH9641 - Cartridge Oil Filter
$549
MSRP: $11.98
Save: $6.49
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
FRAM part description
Product Description
FRAM, CH9641, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Cartridge Oil Filter
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 2.896 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 1.084 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring (1) Inside Diameter | 0.424 IN |
| O-ring (1) Outside Diameter | 0.527 IN |
| O-ring (1) Thickness | 0.103 IN |
| O-ring Inside Diameter | 3.109 IN |
| O-ring Outside Diameter | 3.247 IN |
| O-ring Thickness | 0.138 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.575 in |
| Outer Diameter Top | 2.575 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.084 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100041357 |
| UNSPSC | 15121501 |
Part Interchanges
- Beck/Arnley 041-0817
- Champ P960
- Bosch 3641
- Motorcraft FL-2017A
- Casite Filters CF594
- Hastings LF594
- K&N HP-3003
- Pennzoil PZ-159
- Promotive PH5505
- Group 7 V5505
- Ultra XG9641
- Pro-Tec 190
- ACDelco PF1703
- Purolator L15505
- Quaker State QS15505
- Wix 57203
- Baldwin P7313
- LUBER-FINER P960
- Carquest 84203
- VIPER 9641
- Mann-Filter HU711/2
- Certified CCH9641
- Ford 1S7G-6744-AC
- Mazda L321-14-300
- Champion 55203T
- Installer Edge AL9641
- Mileguard CH9641
- Pronto PO-5505
- MicroGard MGL9641
- Pentius PCB9641
- Pit Stop PSL53
- Power Flo SL15505
- Service Pro M5505
- Silverline 27203
- Performax PO-159
- MotoMaster MCH9641
- Driveworks DW-5505
- Valvoline VO-80
- Defense Filters DL9641
- STP S9641
- Parts Master 67203
- Premium Guard PG5505
- MAHLE OX203DECO
- Havoline T-59
- SUPERTECH ST9641
- PurolatorONE PL15505
- FVP G7203
- Tough Guard TG9641
- Bosch 72239WS
- Motorcraft FL-2017B
- Hastings LF594F
- K&N HP-7013
- K&N PS-3003
- K&N PS-7013
- Carquest R84203
- Carquest R84203MP
- Mann-Filter ML 1019
- Ford 3M4G-6714-AA
- Ford 3M4G-6744-AA
- Ford 3M4Z-6714-AA
- Ford 3M4Z-6744-AC
- Ford 3S7Z-6731-A
- Mazda L321-14-302-9U
- Mazda L321-14-302A-9U
- Mazda LF01-14-302
- Mazda M1C-153A
- Champion COC9641
- Installer Edge ALO17
- Mileguard MO9641
- Pentius PZ159
- Parts Master 67203BP
- Carquest Premium Filters 84203
- Mighty Distributing System M960
- Pennzoil PZ159
- FRAM CCH9641
- Service Champ CF5505
- Mahle OX203DECO
- A.L. Solutions U.S. ALO-8135
- Factory Motor Parts G7203
- Magneti Marelli 1AMFL00022
- Mobil MO5505
- STP Filters S9641
- Mobil 1 M1C-153
- Inter-Continental Gear & Brake ALO-8135
- MicroGard MGL57203
- NAPA Gold Filters 7203
- NAPA ProSelect Filters 27203
- Champion Filters 55203T
- Purolator PureONE PL15505
- ECOGARD X5505
- Prime Guard Filters - Archived POF5505
- NAPA Silver Filters 37203
- NAPA Platinum Filters 47203
- Super Tech Filters ST9641
- PureZone 8-57203
- Purolator TECH TL15505
- FRAM Tough Guard TG9641
- FRAM Ultra Synthetic XG9641
- FRAM Titanium FS9641
- FRAM Drive FD9641
- Wix 57203XP
- Champion Filters COC9641
- Mazda L321-14-302
- Mobil 1 M1C-153A
- MicroGard Select MSL57203
- Champ P960XL
- STP Filters S9641XL
FRAM CH9641 Cross Reference
We have 9 alternatives for the CH9641 by FRAM:
Fits Vehicles
- Suzuki Aerio (2002)
- Mercury Mariner (2006-2010)
- Mazda CX-7 (2007-2009)
- Mazda Tribute (2008-2010)
- Ford Escape (2005-2009)
- Mercury Milan (2006-2009)
- Mazda 5 (2006-2010)
- Ford Fusion (2006-2009)
- Mazda 3 (2004-2009)
- Mazda 6 (2003-2011)
