DONALDSON P953571 Part Description
Manufacturer
Product Description
FREIGHTLINER TRUCKS
Features & Benefits
- Aligns with the housing precisely through correct thread and dimensions
- Correct seating prevents air from escaping at the connection
- Routes air toward the desiccant bed rather than around it
- Proper sealing routes all available air to the desiccant

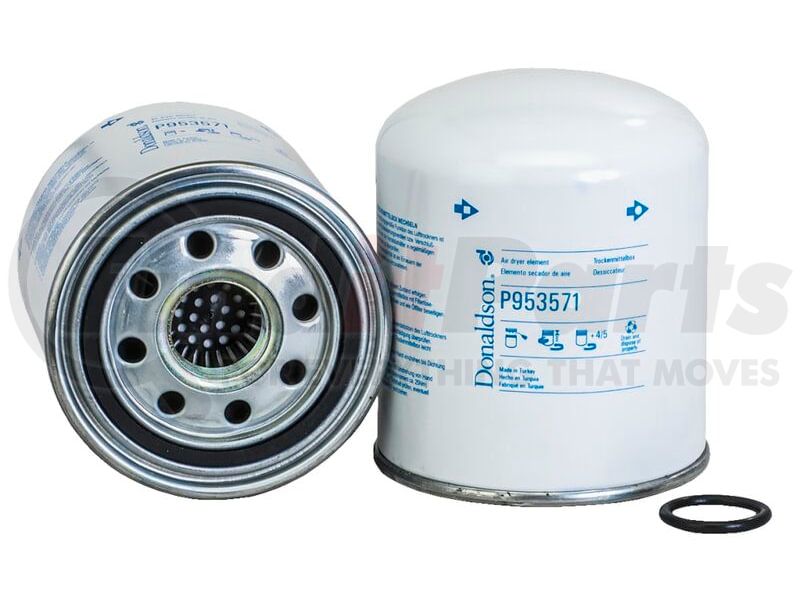

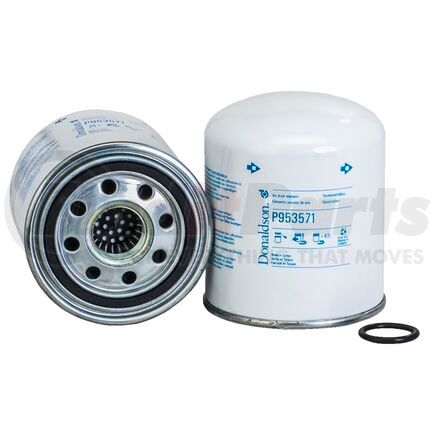

Donaldson Air Brake Dryer Cartridge
Matching thread size and cartridge dimensions matters more for the Donaldson Air Brake Dryer Cartridge than for most filters, since a loose fit at that connection can leak compressed air before it reaches the desiccant bed. The Donaldson P953571 uses an M39 x 1.5 thread paired with specific outer diameter dimensions, matching the housing the air system was built around precisely. A cartridge that seats correctly seals against system pressure at the connection instead of relying on the media to compensate. Correct thread engagement keeps compressed air routed through the desiccant bed instead of escaping around a poor connection.
Air Dryer, Spin-On
Donaldson Air Dryer
Extend the service life of your truck’s air tanks and valves by outfitting it with a superior-quality Donaldson air dryer. Positioned between the “wet tank” and the air compressor, the air dryer efficiently screens out oil vapor, water vapor, and contaminants before they get into and cause damage to the tank and valves.
DONALDSON P953571 Specifications
Product Attributes
| Gasket Id | 3.88 IN |
| Gasket Od | 4.32 IN |
| Outer Diameter | 5.51 IN |
| Thread Size | M39 x 1.5 |
| Length | 6.5 IN |
| Style | Spin-On |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8421390115 |
| UPC | 00742330983751 |
DONALDSON P953571 Cross References
| Brand | Part Number |
|---|---|
| BALDWIN | BA5374 |
| LUBER-FINER | LFP8654 |
| MANN-HUMMEL FILTERS | TB 1374/13 X |
| N/A | PFA5693, PH5693, AD27730, 24374, 524374, AD1374, BA5374, LFP8654M, 89374, 96327, AF27817, ABPNN10GR950011, N1335130010860, 4374, J8500121, 9107, 2032389, 2C462B915AA, 4C452A131AA, 4329980202, 109994K, 31004109, R950011, ABPN10GR950011, TB1374T, 15920105, RAD30011, 11017455, 110273600, TB137413X, 81521020015, 81521020019, TB1374, 4920859101, 220949, A000429369599, 8285141196, F931882140010, 109994, 5008414BXW, 272897, 5008414, 5008415, 4300969, 50000809504, 5000295421, 5000819872, 5001004902, 5001825695, 5001830112, 500295421, 5021170070, 5021170076, 8010002016, A0004300969, 0004293395, 0004293695, 0004293795, 0004300669, 0004300969, 4290897, 4291097, 4291297, 4293395, 4293595, 4293695, 4293795, 4300669, A0004290897, A0004291097, A0004291297, A0004293395, A0004293595, A0004293695, A0004293795, A0004300669, 0004290897, 0004291097, 0004291297, AC1001, 019907612, 174767, 1900812, 1907612, 19907612, 2992261, 3351454, 503135256, 8123564, 8190948, AT411898, AL204884, 571352308, 8152102008, 81521086001, 82521020013, 1368731, 79200361087, 79200361090, 815210020013, 81521020008, 815210200080, 81521020009, 81521020010, 81521020013, CV119791, 1375997, 76117673, A2750524, AD785, OP585, 637410630, AL12, 3043578, 20410155, 270694, 30902886, 3091200, 3915558, 8159915, 2725900, 950011, AL10, AL3, 107163, SP1450, S7259A, 1102751110, 0699387, 1504900R, 699387, 6993878, 99707305720, 2TA607413, 2TB607439, 6008099011006, ELD8100, 1487434004, 1487434005, 1487434006, 1487434007, 1487434009, 1487434015, 1487434901, 1987434001, 986628250, D484811002, F026404012, 0986628250, 1457434004, 1457434007, 1487434001, PRO0102002, 102002, 4324100202, 4324102212, 4324102222, 4324102227, 4324102270, 4324202202, 4324209232, 85127004, 98446957, 8480087 |
| WIX FILTERS | WIX FILTERS, 24374 |
DONALDSON P953571 Fits Vehicles
- Freightliner Century Class (1998-2003)
- Freightliner Classic (2003-2007, 2009)
- Freightliner Classic XL (2001-2009)
- Freightliner Columbia (2004-2010)
- Kenworth T2000 (1997-2011)
- Mack CL (1991-2007)
- Mack CXU (2008-2019)
- Mack LEU (2008-2016)
- Mack MRU (2008-2019)
- Peterbilt 320 (1987-2000)
- Peterbilt 330 (1995-2002)
- Peterbilt 357 (1986-2002)
- Peterbilt 362 (1988-2004)
- Peterbilt 377 (1988-2001)
- Peterbilt 384 (2014-2016)
- Peterbilt 388 (2008-2011)
- Peterbilt 579 (2014-2025)
- Volvo VNL 430 (2015-2016)
- Volvo VNL 630 (2015-2016)
- Volvo VNL 670 (2015-2016)
