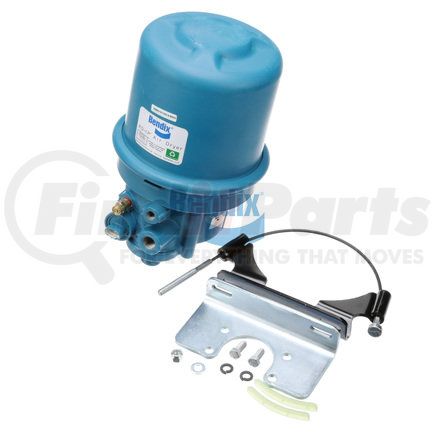

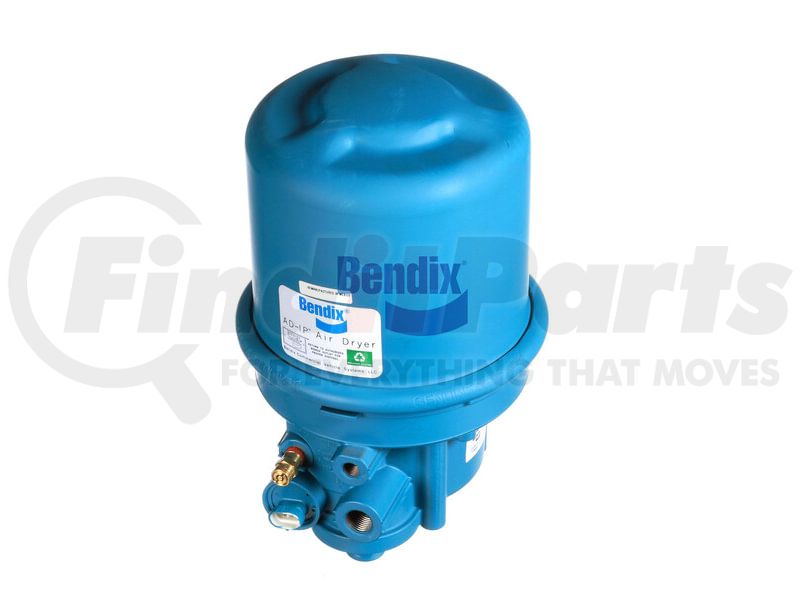

(888) 312-8812 Login SignupBENDIX 109477 Air Dryer
Tap to view 6 more
MSRP: $762.66
$44799
Save $314.67
+$234.00 core deposit
Total price w/ core: $681.99
In Stock
Get it by Friday, Jun 26
BENDIX 109477 Part Description
BENDIX 109477 Specifications
Product Attributes
| Air Dryer Type | Stand-Alone |
| Body Mounting | 3/8-16 UNC-2B (4x) |
| Cartridge Stabilizer Ring Included | Not applicable to this part |
| Cartridge Thread | 1 1/4-7 UNC-2B |
| Cartridge Type | Standard |
| Clamp Band Angle (CW from SUP) | Not applicable to this part |
| Clearance to Remove Cartridge | .50 IN |
| Control Port | 1/4-18 NPT |
| Cut-In Pressure | Not applicable to this part |
| Cut-Out Pressure | Not applicable to this part |
| Delivery Port 1 | 1/2-14 NPT |
| Delivery Port 2 | Not applicable to this part |
| Extended Purge Port | 1/8-27 NPT (Plugged) |
| Governor Included | No |
| Governor Mounting Bracket | Not applicable to this part |
| Governor Mounting Bracket Angle (CCW from SUP) | Not applicable to this part |
| Governor Type | Not applicable to this part |
| Heater / Thermostat Rating | 12V / 90W |
| Heater Connector Color | White |
| Heater Connector Type | Metri-Pack 280 Series 2-Way Sealed Connector (Male) |
| Lower Mounting Bracket | Not applicable to this part |
| Lower Mounting Bracket Angle (CCW from SUP) | Not applicable to this part |
| Market Indicator | Aftermarket Remanufactured |
| Maximum Inlet Temperature | 160 AdegF (71 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Purge Exhaust Port | Standard |
| Purge Valve Type | Hard Seat |
| Purge Volume | Standard |
| Remote Fill Feature | Not applicable to this part |
| Remote Purge Port | Not applicable to this part |
| Safety Valve Opening Pressure | 200 PSI |
| Supply Port | 1/2-14 NPT |
| Turbo Cut-off Function | Not applicable to this part |
| Upper Mounting Bracket | Not applicable to this part |
| Upper Mounting Bracket Angle (CCW from SUP) | Not applicable to this part |
| Upper Mounting Bracket Height (from Lower Mounting Bracket) | Not applicable to this part |
| Upper Mounting Type | Not applicable to this part |
Additional Information
| Core Class | 79 |
| Core Group | 9A |
| Country of Origin (Primary) | MX |
| UPC | 07894294756155 |
| VMRS Code | 013010252 |
BENDIX 109477 Cross References
| Brand | Part Number |
|---|---|
| BWP | M-109477 |
| BWP-NSI | M-109477 |
| MERITOR | R955109477PGX, R955109477X, R955109477XCF |
| N/A | 109477X, 065624 |
| NEWSTAR | S-23097 |
| TORQUE PARTS | TR065612 |
| WORLD AMERICAN | WA65612 |
