(888) 312-8812 Login SignupCONTITECH AS8709 Air Spring for Hendrickson - Rolling Lobe - Base Height: 4.75” - Min Max Height: 6.00”– 19.40”
Tap to view 6 more
MSRP: $605.06
$18799
Save $417.07
Limited availability at this price!
In Stock
Get as soon as Wednesday, Oct 7

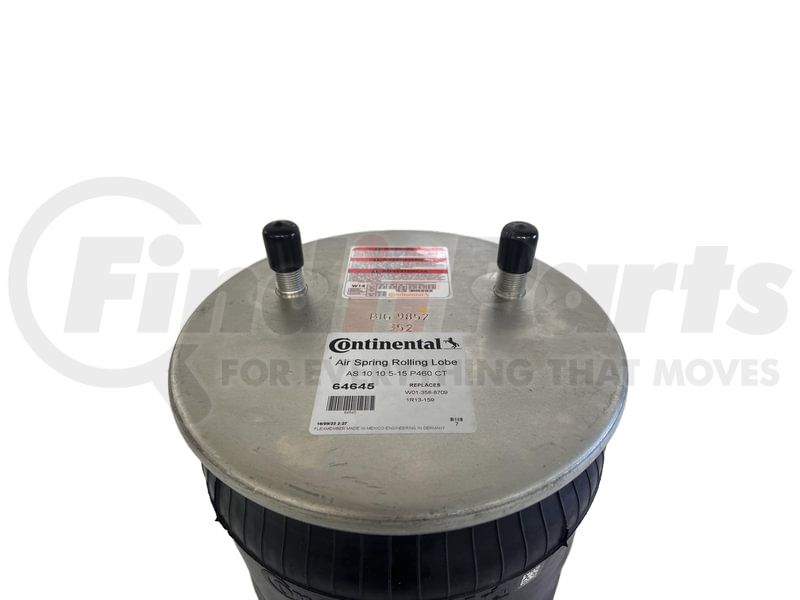

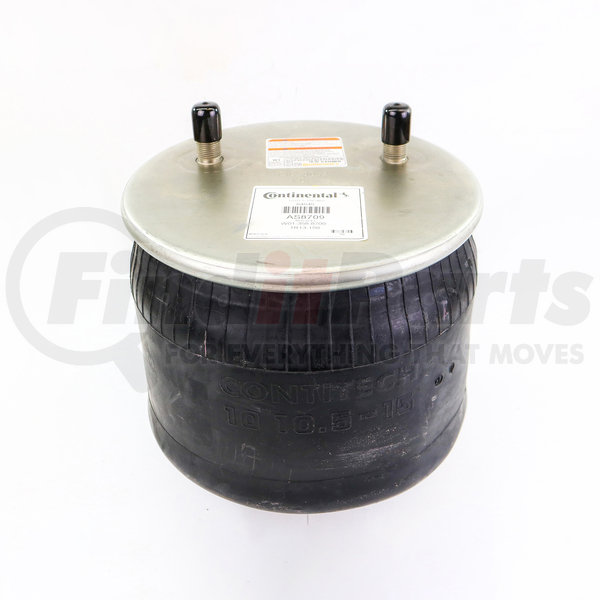

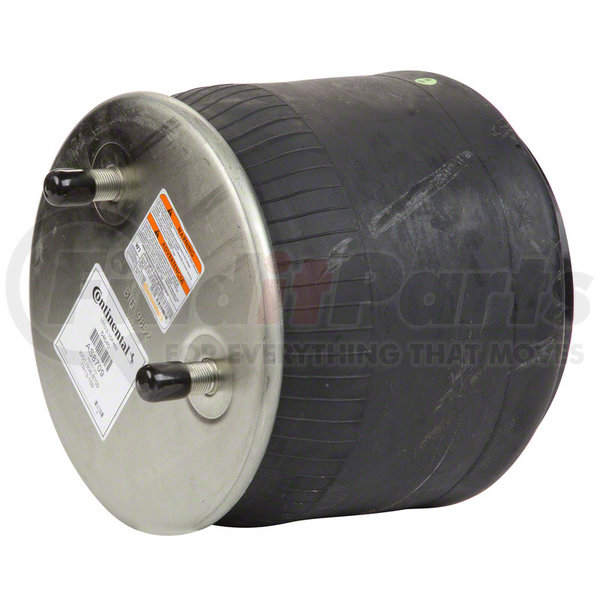

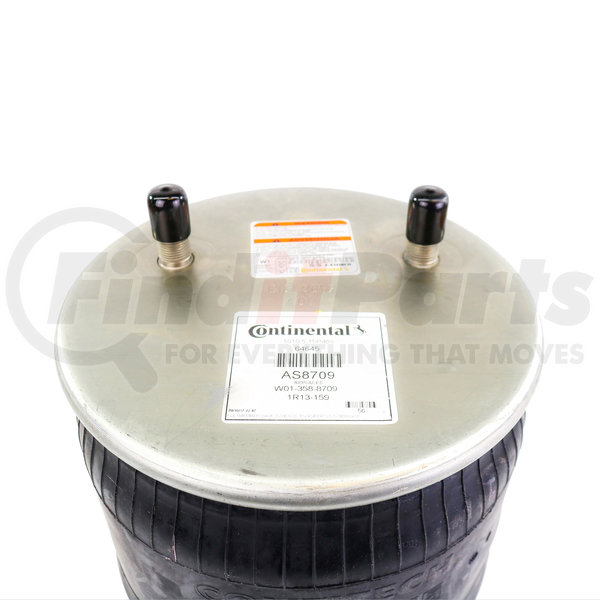

CONTITECH AS8709 Part Description
Manufacturer
Features & Benefits
- Rolling-lobe motion lets the bellows move over its piston through long axle travel
- Carries chassis weight while the spring changes shape instead of acting like a rigid mount
- Road inputs are softened before they pass from the axle into the vehicle structure
- Preserves hendrickson service can renew the air spring while retaining usable suspension hardware
ContiTech Suspension Air Spring Kit
Rolling-lobe travel gives the ContiTech Suspension Air Spring Kit the movement needed on compatible Hendrickson suspensions. A 4.75-inch base and roughly 6-to-19.4-inch working range distinguish the ContiTech AS8709. As the axle rises and falls, the bellows rolls over its piston instead of simply folding, allowing the spring to carry chassis load while softening road shock. Those dimensions make suspension geometry central to choosing this spring, especially where ride height and available travel must agree with the existing Hendrickson setup.
Product Specifications
| Description | 10 10.5-15 P 460 |
| Part Number | 64645 |
| Weight | 13.2 lb |
| Position Number | 9310704 |

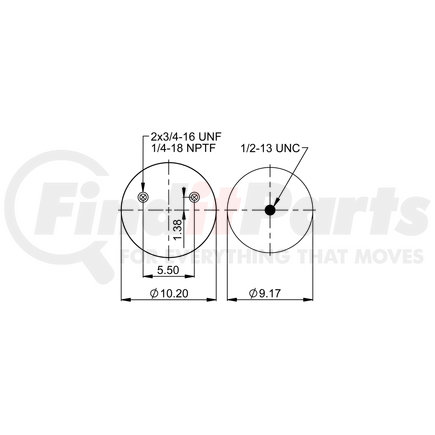

| Torque | 1/4-18 NPTF: max. 22 lbf ft |
| 3/4-16 UNF: max. 50 lbf ft | |
| 1/2-13 UNC: max. 35 lbf ft |
ContiTech Air Spring
The ContiTech air spring ensures safe driving regardless of the loading conditions. It also delivers ride comfort, especially when driving on rough roads.

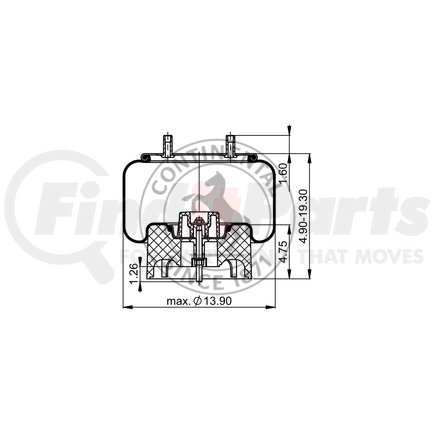

| Base Height | 4.75” |
| Min Max Height | 6.00”– 19.40” |
| Style | Rolling Lobe |
CONTITECH AS8709 Cross References
| Brand | Part Number |
|---|---|
| S21800 , 8709, AS87090 | |
| AUTOMANN | 1DK25A-8709 |
| BLACKTECH | RML78709CP |
| CONTITECH | 64645 |
| FIRESTONE | W01-358-8709 , W01-358-8709 |
| FIRESTONE STYLE | 1T17CA-5 |
| FLEETPRIDE | AS8709 |
| GOODYEAR | 1R13-159 |
| GOODYEAR FLEX | 566263073 |
| HD VALUE | HDV8709 , HDV8709 |
| NEWSTAR | S-26307 |
| PRIMERIDE | AS-PR10C15 |
| TRIANGLE | AS-8460 |
