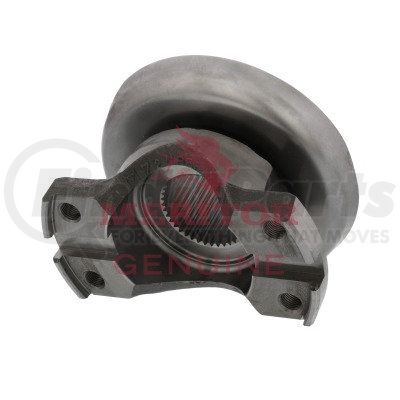

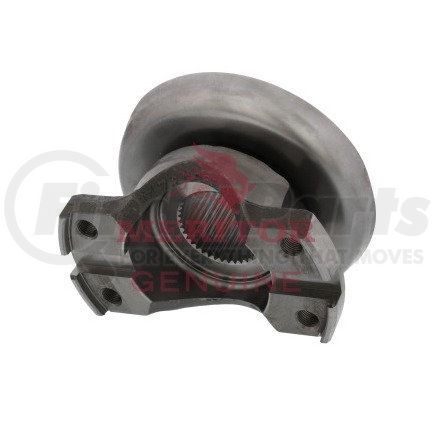

AXLETECH part description
| Counter Bore Depth | 0.09 in. |
| Deflector | DEFR50-7 |
| Face To End | 3.81 in. |
| Hub Diameter | 3.00 in. |
| Kit Mounting Holes: Drilled Or Threaded | TH |
| Pilot Diameter | 5.84 in. |
| Series | 72N |
| Slot Width | 0.63 in. |
| Spline Diameter | 2.024 in. |
| Spline Length | 2.31 in. |
| Spline: Number Of Splines | 39I |
| Use U-Joint Kit | CP72N-DWT, CP72N-HB, CP72N-HWD, or PERMALUBE |
| VMRS Code | 024-001-003 |
Founded in 1919, AxleTech® is a recognized leader in the design and manufacture of powertrain solutions for on- and off-highway heavy-duty commercial vehicles. It’s most widely known for its extensive coverage of axles, with over 1,000 different axle specifications in its current catalog. These axles are designed to meet not just customers’ OE replacement needs but their aftermarket replacement needs as well. Aside from axles, AxleTech also provides brakes, carriers, transfer cases, suspensions and modules, electric vehicle systems, and various replacement components. Headquartered in Troy, Michigan, all AxleTech parts are produced following stringent quality standards for superior performance, maximum efficiency, and reliability.
