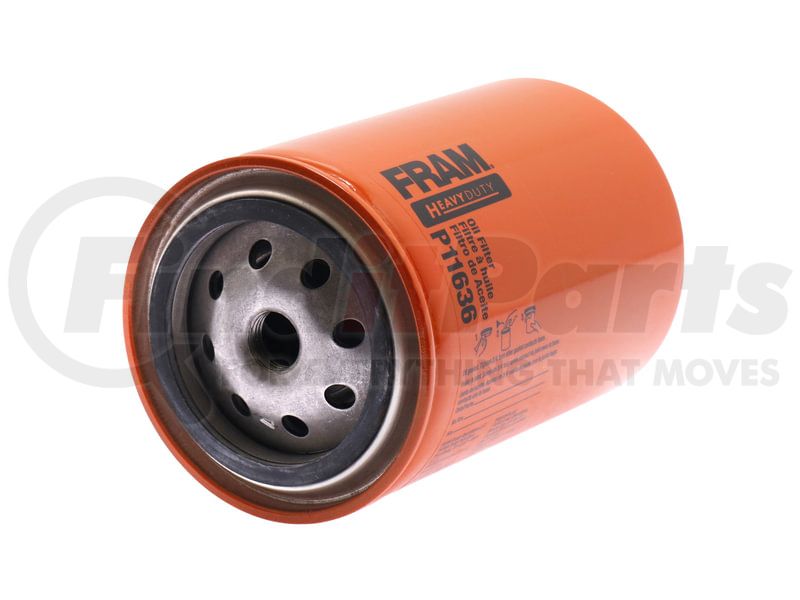

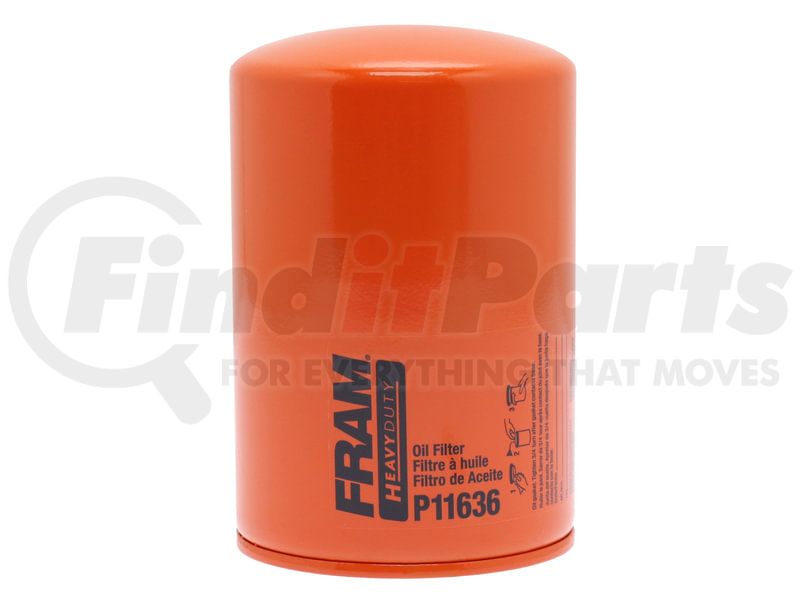

(888) 312-8812 Login SignupFRAM P11636 HD By-Pass Lube Spin-on
Tap to view 1 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM P11636 Part Description
FRAM P11636 Specifications
Product Attributes
| Height | 5.530 IN |
| Gasket Or Seal Included | Yes |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.328 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 2.421 IN |
| Gasket Outside Diameter | 3.651 IN |
| Drain Plug Included | No |
| Gasket Type | Base Gasket |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | 5/8-18 IN |
| Mounting Type | Spin On |
| New Or Remanufactured | New |
| Outside Diameter | 3.651 IN |
| Reusable | No |
| Thread Size | Standard |
| Universal Or Specific Fit | Specific |
| Universal Or Specific Fit | Specific |
| Inner Thread Diameter | 5/8-18 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100554369 |
| UNSPSC | 15121501 |
FRAM P11636 Cross References
| Brand | Part Number |
|---|---|
| Baldwin | B7124 |
| Big A | 92110 |
| Bowes | LFP2262 |
| Carquest | 85110 |
| Champ | FP38 |
| Ditch Witch | 155-929 |
| Donaldson | P550194 |
| Fleetguard | LF3563, LF727 |
| Fleetrite | LFR-8727 |
| General Motors | 94054123, 94054129 |
| Hastings | B7124, LF425 |
| Hino | 15607-1470, 15607-1471, 15607-1471A, 15607-1860 |
| Isuzu | 1132400890, 11324008900, 1132400892, 132400892, 2906548200 |
| Kralinator | L41 |
| LUBER-FINER | LFP2262, LFP2252 |
| Motorcraft | FL-6 |
| NAPA | 1110 |
| Purolator | L30019 |
| United Engine Life | P-4 |
| WIX FILTERS | 57704 |
| Wisconsin | RV38S |
| Wix | 57704 |
FRAM P11636 Fits Vehicles
- Suzuki Aerio (2002)
- Hino FF23 (1992)
- Hino FD20 (1992)
- Hino SG20 (1992)
- Chevrolet W6500 Tiltmaster (1987-1996)
- GMC W6500 Forward (1987-1996)
- GMC W7500 Forward (1984-1996)
- Chevrolet W7500 Tiltmaster (1984-1996)
- Hino FD2218LP (1993-1997)
- Hino GC20 (1992)
- Hino SG3323 (1993-1997)
- Hino FF3018 (1993-1997)
- Hino FD17 (1988-1992)
- Isuzu FVR (1989-1992, 1994-1996)
- Isuzu FSR (1987-1998)
- Hino FE2618 (1993-1997)
- Hino SG231 (1989-1992)
- Hino FG19 (1985-1986)
- Hino SG5523 (1993-1996)
- Hino FF3020 (1993-1997)
- Hino FE20 (1992)
- Hino FF19 (1984-1992)
- Hino SG19 (1986-1992)
- Hino SG3320 (1993-1997)
- Hino FD2218 (1993-1997)
- Hino FF20 (1992)
- Hino SF17 (1989)
- Hino SG23 (1986-1992)
- Hino FE19 (1985-1992)
- Isuzu NRR (1988-1994)
- Isuzu FTR (1988-1996)
- Isuzu EVR (1987-1993)
- GMC W5500 Forward (1988-1998, 2000-2004)
- Chevrolet W5500 Tiltmaster (1988-1998, 2000-2004)
