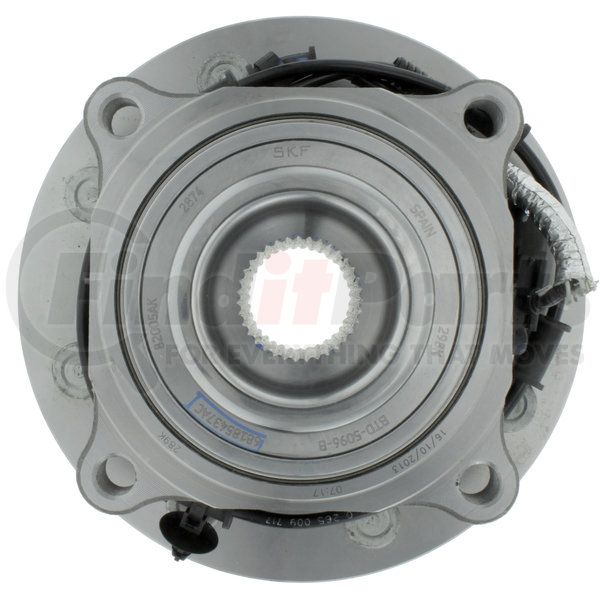

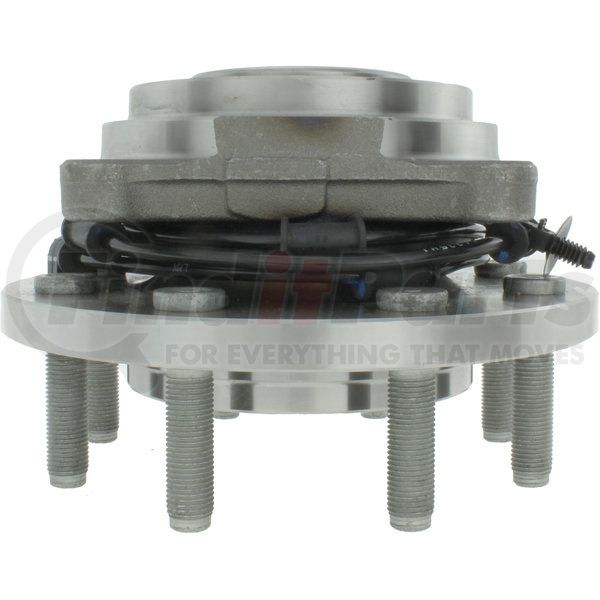

CENTRIC 402.67025 Part Description
Manufacturer
Product Description
Standard Hub Assembly
Features & Benefits
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 402.67025 Specifications
Product Attributes
| Off-set [cntrc] Mm | 2.219 |
| Mounting Thread Pitch [cntrc] Mm | 1.500 |
| Inner Mount Pilot [cntrc] In | 4.721 |
| Notes [cntrc] | Same as 402.67023 with longer (57') ABS Wire & Head Shield material on portion of wire |
| Off-set [cntrc] In | 56.000 |
| Mounting Hole Qty [cntrc] | 4 |
| Bolt Circle Diameter [cntrc] In | 6.500 |
| Inner Mount Pilot [cntrc] Mm | 119.900 |
| Thread Pitch To Wheel Mounting [cntrc] In | 18.000 |
| Bolt Circle Diameter [cntrc] Mm | 165.100 |
| Mouting Thread Size [cntrc] Mm | 14.000 |
| Product Grade [cntrc] | Premium |
| Spline Quantity | 35 |
| Wheel Stud Size | 0.563 IN |
| Wheel Pilot Diameter | 121.700 MM |
| Wheel Pilot Diameter | 4.767 IN |
| Brake Pilot Diameter | 122.100 MM |
| Brake Pilot Diameter | 4.840 IN |
| Wheel Stud Quantity | 8 |
| Wheel Studs Included | Yes |
| Flange Diameter | 8.066 IN |
| Flange Diameter | 205.000 MM |
CENTRIC 402.67025 Cross References
CENTRIC 402.67025 Fits Vehicles
- Ram 2500 (2014-2018)
- Ram 3500 (2013-2018)
