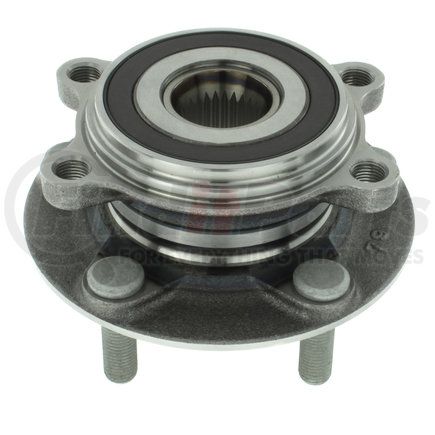

Centric 401.45002 - Centric Premium Hub and Bearing Assembly; With ABS Tone Ring / Encoder
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly; With ABS Tone Ring / Encoder
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Inner Mount Pilot [cntrc] Mm | 90.930 |
| Product Grade [cntrc] | Premium |
| Off-set [cntrc] In | 1.678 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Off-set [cntrc] Mm | 42.620 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Inner Mount Pilot [cntrc] In | 3.580 |
| Mounting Hole Qty [cntrc] | 4 |
| Notes [cntrc] | Similar to 401.45004; different mounting pilot & ABS Encoder Position |
| Spline Quantity | 28 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 66.800 MM |
| Wheel Pilot Diameter | 2.630 IN |
| Brake Pilot Diameter | 67.820 MM |
| Brake Pilot Diameter | 2.670 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.465 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 805890615804 |
Part Interchanges
Fits Vehicles
- Mazda CX-3 (2016-2021)
- Mazda 3 Sport (2014-2016)
- Mazda 3 (2014-2018)
