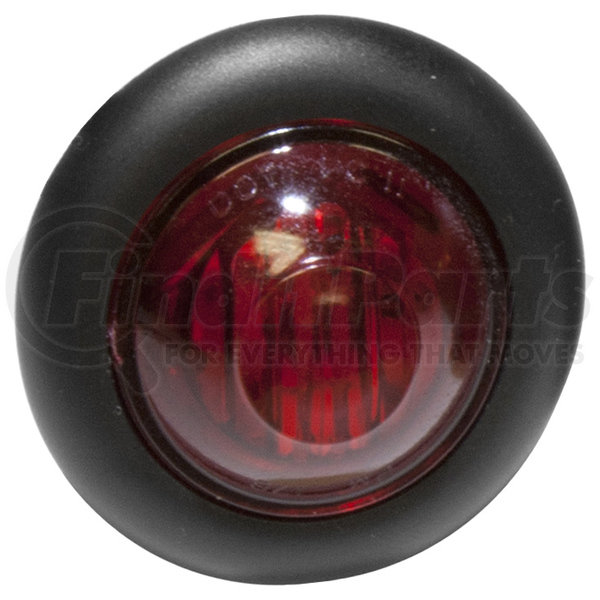

Peterson Lighting M181R-MV - LED Marker/ Clearance, PC-Rated, Round, 0.75", Multi-volt, red, bulk pack
- Part Number
- M181R-MV
- Manufacturer
- PETERSON LIGHTING
- Description
-
LED Marker/ Clearance, PC-Rated, Round, 0.75", Multi-volt, red, bulk pack
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
PETERSON LIGHTING part description
181 LED 3/4" Clearance and Side Marker Lights
Features & Benefits
- Compact single diode design fits 3/4" hole
- Requires “top-mount” positioning to meet DOT requirements for PC rating
- Functions as both clearance and side marker light when mounted at a 45° angle
- Hardwired 8” leads available either stripped, or with .180 bullets
- Available in 12-volt and multi-volt (9-32V) versions
- Includes mounting grommet
- Multi-volt compatibility allows for versatile use with different vehicle electrical systems
- Bright red LED light enhances vehicle visibility, reducing the risk of accidents in low-light conditions
- Compact 0.75-inch round design is suitable for a wide range of vehicle configurations
- LED technology for reduced power consumption, helping to conserve battery life over time
- Sturdy construction ensures reliable performance in various weather conditions
- Quick and easy installation process allows for hassle-free setup and improved vehicle safety
Product Description
LED MARKER/CLEARANCE, PC, ROUND, 0.75", MV
Features & Benefits
- 1 diode.
- 12 volt and multi-volt (9–32V) versions.
- Assembled in USA.
- Available in retail-friendly Viz Pack.
- Compact single diode design fits ." hole.
- Hardwired 8” leads available either stripped, or with .180 bullets.
- Hardwired design.
- Includes rubber mounting grommet.
- Multivolt version available.
- PC rated as both clearance and side marker light when mounted at a 45° angle with optical facets in lens running vertically.
- PC Rated.
grommet - mfg. pack - B177-18 - std qty 100
Product Attributes
| Bulb Technology | LED |
| Bulb/diode Count | 1 |
| California Prop65 Required | Y |
| Container Type | bulk pack |

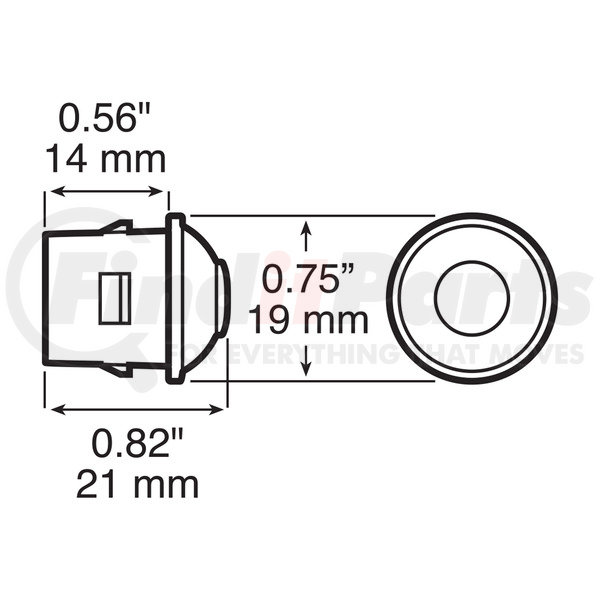

| Diameter | 0.75 IN |
| Height | 0.75 in |
| Integral Reflex | N |
| Length | 0.75 in |
| Lens Color | red |
| Light Color | red |
| Maximum Voltage | 32 Volts |
| Minimum Voltage | 9 Volts |
| Mounting Type | grommet |
| Multi-volt | Y |
| Pc Rated | Y |
| Regulatory Compliance | DOT |
| Shape | 3/4-inch round |
| Submersible | Y |
| Voltage | 12V / 24V |
| Width | 0.82 in |
Additional Information
| Warranty Special | LIMITED LIFETIME WARRANTY See full warranty terms: https://pmlights.com/warranty |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8512202000 |
| UPC | 00044464996714 |
| VMRS Code | 034004462 |
PETERSON LIGHTING M181R-MV Cross Reference
We have 1 alternatives for the M181R-MV by PETERSON LIGHTING:
Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
