PETERSON LIGHTING part description

168A/R Series Piranha® LED Slim-Line Mini Clearance and Side Marker Lights

Peterson Lighting Piranha® LED Slim-Line Mini Clearance & Side Marker Light

The Peterson Lighting Piranha® LED slim-line mini clearance & side marker light offers improved trucking safety as it alerts other road users of your vehicle’s location, position, and dimension in poor visibility situations. It is also a perfect way to add a unique style to your rig while keeping it safe on the road.

Features & Benefits

  • A 2-diode LED light that works either as a side marker or a clearance light
  • Sealed, filament-free design eliminates damage from shock and road vibration
  • Hardwired connectors with separate lead and ground wires allow for mounting various types of surfaces
  • Easily mounts on 1 15/16” centers
  • Product’s operating range is 9 to 16 volts
  • Tested for durability with a 100,000-hour rated operating life
  • Manufactured to meet the highest quality and safety standards

Product Description

LED MARKER/CLEARANCE, P2, OBLONG, 2.6"X0.75"

Features & Benefits

  • 2 diodes.
  • Available in retail-friendly Viz Pack.
  • Hardwired design.
  • Multivolt version available.
  • Clear lens with colored light.
  • 9-16 volt operating range, 9-32 volts for "-MV" multi-volt units.
  • Hardwired with separate lead and ground wires.
  • XA/XR versions include B168-10 chrome bezel, also available separately.

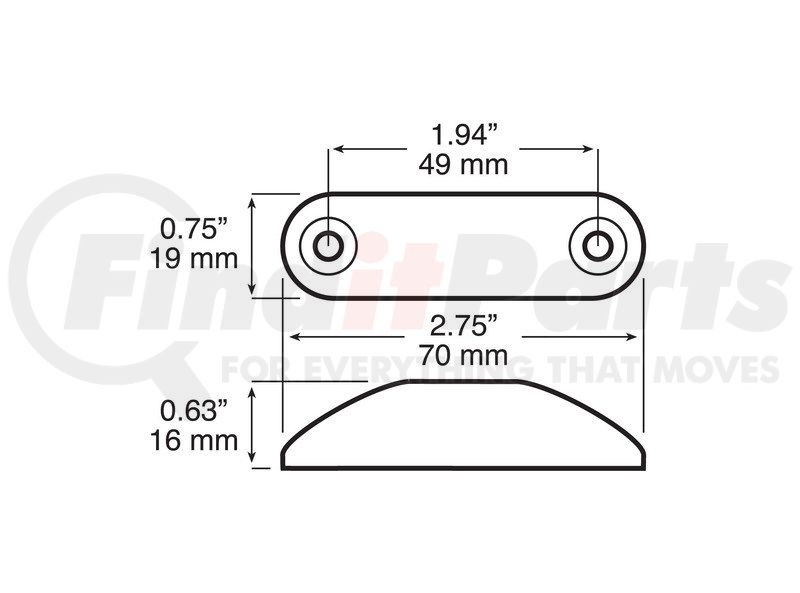

  • Mounts on 1-15/16" centers; optional B168-09 bracket allows for mounting on either 1-15/16" or 1-1/8" centers.
  • 168 series features 5.75" long lead wires.
  • 4484 series features 9.5" long lead wires.

168-09: black bracket (poly pack - std qty 12)

Product Attributes

Bulb Technology LED
Bulb/diode Count 2
California Proposition 65 Required Y
Container Type poly bag
Family PM
Height 0.75 in
Integral Reflex N
Length 2.75 in
Lens Color red
Light Color red
Marine Use Y
Maximum Voltage 16 Volts
Minimum Voltage 9 Volts
Mounting Centers 1.94 IN
Mounting Type surface
Multi-volt N
Pc Rated N
Regulatory Compliance DOT
Shape oval
Termination stripped wire
Voltage 12 Volts
Width 0.63 in

Additional Information

Country of Origin (Primary) TW
Harmonized Tariff Code (Schedule B) 8512202000
UPC 00044464982847
VMRS Code 034004253

Part Interchanges

PETERSON LIGHTING 168R Cross Reference

We have 3 alternatives for the 168R by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
