(888) 312-8812 Login SignupGATES G23830-3232 Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral MAX Pressure)
Tap to view 3 more
$632.99
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES G23830-3232 Part Description
Manufacturer
Product Description
Female British Standard Parallel Pipe O-Ring Swivel (GlobalSpiral MAX Pressure)
Features & Benefits
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
- A flexible, easier-to-route hose assembly to replace 2 in. rigid pipe on crowded equipment platforms
- A stem machined from a single piece of solid steel for greater strength and integrity
- A no-skive design requiring no special equipment and skills, reducing the risk of blow-offs or leaks
GATES G23830-3232 Specifications
Product Attributes
| Coupling Description | GlobalSpiral MAX Pressure Female British Standard Parallel Pipe O-Ring Swivel |
| Industrial Description | 32GSM-32FBSPORX |
| Thread Size | 2-11 |
| Inside Diameter | 2 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15, EFG5K - SAE 100R13 |
| Nut Hex Size | 70 MM |

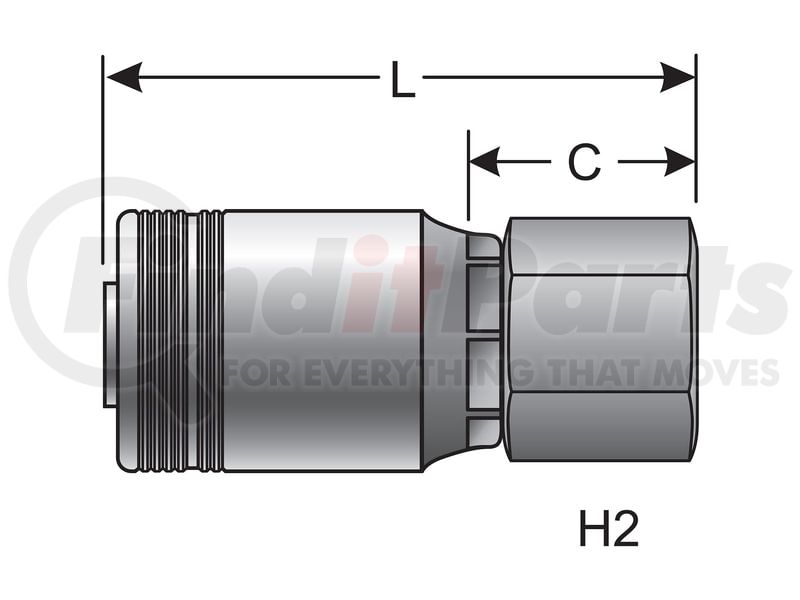

| Cut-Off Length | 2.76 IN |
| Length | 7.24 IN |
| Inside Diameter | 50.8 MM |
| Cut-Off Length | 70 MM |
| Length | 183.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00770075556725 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G23830-3232 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 6S32BF32 |
| N/A | 04031470, 6048-3232 |
| NAPA | G23830-3232 |
