Gates G18170-2020 - Female JIC 37 Flare Swivel (Stainless Steel Spiral)
$33699
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

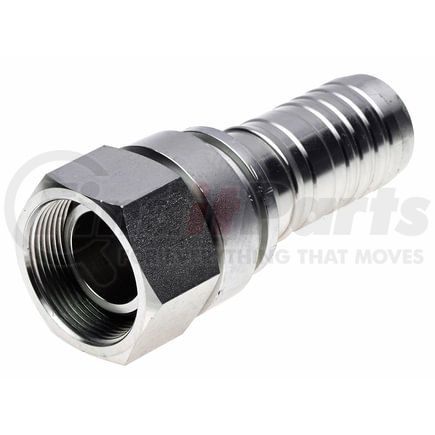

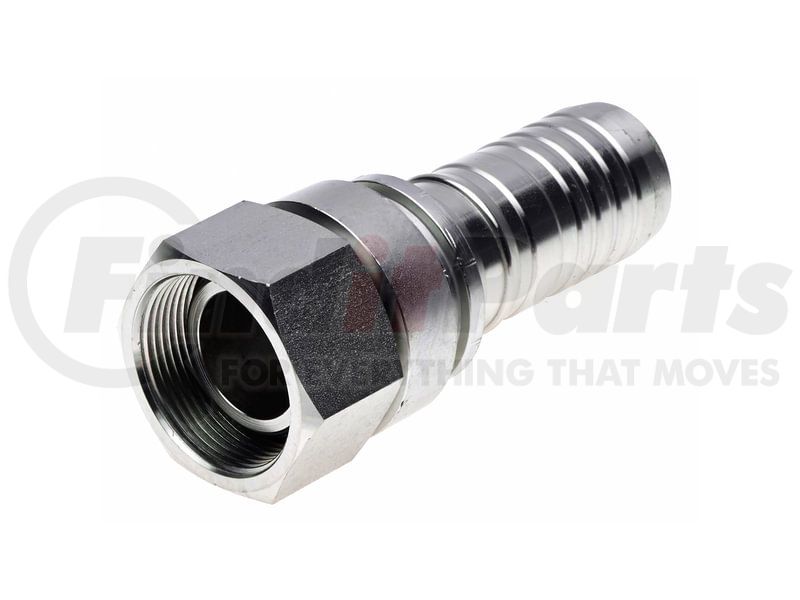

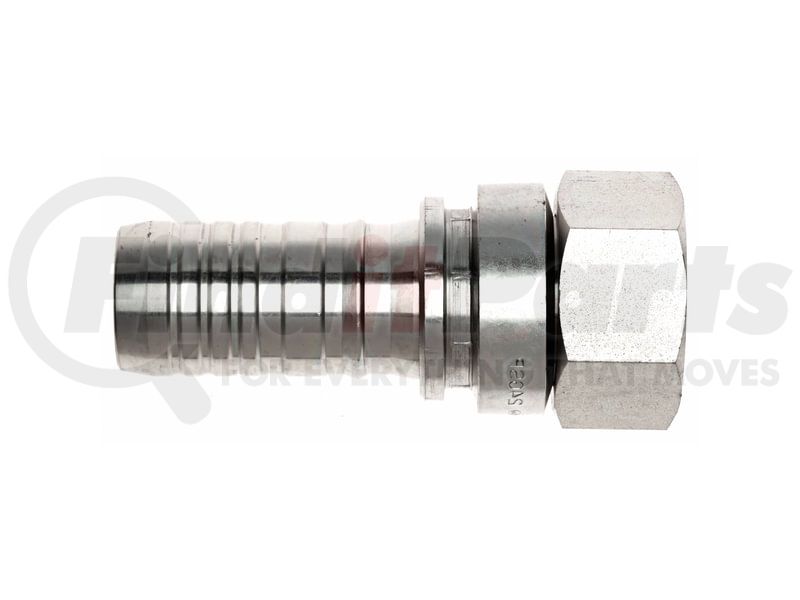

Female JIC 37 Flare Swivel (Stainless Steel Spiral)
Features & Benefits
- Stainless steel couplings last longer than standard couplings so you can avoid replacing an entire assembly before the hose itself needs replacement
- Fortified with 316 grade stainless steel
- Gates Stainless Steel stems are available in the B series for braided hose or the S series for spiral-wire
Product Attributes
| Coupling Description | Stainless Steel Spiral Female JIC 37 Flare Swivel |
| Industrial Description | 20S-20FJX-SS |
| Thread Size | 1 5/8-12 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Gates EFG3K, EFG4K, EFG5K, EFG6K, M4K, M4KL |
| Stem Hex Size | 1.88 IN |
| Nut Hex Size | 2 IN |

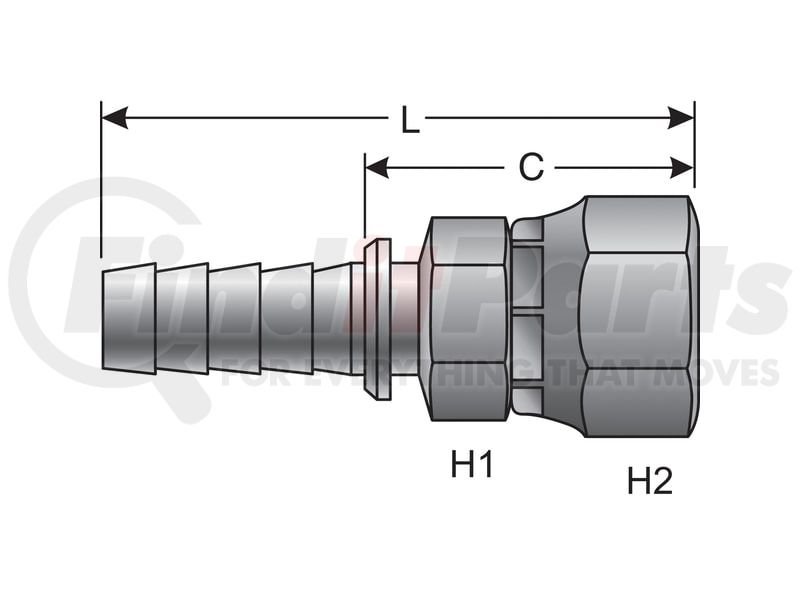

| Cut-Off Length | 2.6 IN |
| Length | 5.11 IN |
| Inside Diameter | 31.8 MM |
| Stem Hex Size | 47.6 MM |
| Nut Hex Size | 50.8 MM |
| Cut-Off Length | 66 MM |
| Length | 129.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075457077 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
