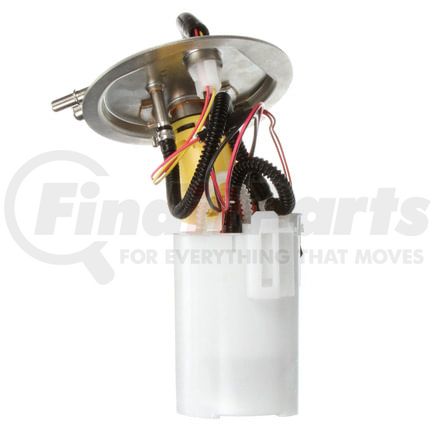

DELPHI FG1437 Fuel Pump Module Assembly

★★★★★ (0)

$681.99

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 18
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI FG1437 Part Description

Manufacturer

DELPHI

Product Description

Fuel Pump Module Assembly

Features & Benefits

  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • Lower amperage draws less load on vehicle's electrical system
  • Part is validated, tested and matched to the right vehicle application
  • Always be sure to check and clean fuel tank to avoid unnecessary returns
  • Lower failure rates due to its innovative design and durability

DELPHI FG1437 Specifications

Product Attributes

Vapor Pressure SensorNo
Item GradeStandard Replacement
Package ContentsFuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Fuel Level Sender Assembly IncludedYes
System Pressure44 psi
Outlet Outside Diameter0.375 IN
Voltage12 2H
Fuel TypeGas
Regulator IncludedYes
Maximum Pressure78 PS
Terminal TypePin
Gasket Or Seal IncludedYes
Terminal Quantity4
Lock Ring IncludedNo
Terminal GenderMale
Strainer IncludedYes
Inlet TypeStrainer
Outlet TypeQuick Connect
Outlet Quantity2
In Tank or ExternalIn Tank
Resistance Ohms Empty15 82
Resistance Ohms Full160 82
Internal Or External StrainerInternal
Pump TypeElectric
Average Current Draw10 68
Average Flow Rating14 GPH
Fuel Sending Unit IncludedYes
Negative GroundNo
Mounting Hardware IncludedNo
Grade TypePremium
Connector Quantity1
Connector ShapeRound
Housing MaterialPlastic
Installation WarningsNo
Connector GenderFemale
Fuel Filter IncludedNo
Gasket Or Seal MaterialNitrile Rubber
Minimum Pressure44 PS
Wire Harness IncludedNo
Pump DesignTurbine
Fuel Tank Pressure Sensor IncludedNo
Universal Or Specific FitSpecific

Additional Information

Harmonized Tariff Code (Schedule B)8413309000
Country of Origin (Primary)TH
Harmonized Tariff Code (HTS)8413309030
Warranty SpecialLimited
Warranty Special UOMLT
UPC00689604239520
VMRS Code044003258
UNSPSC25172409

DELPHI FG1437 Cross References

BrandPart Number
AirtexE2386, E2641M
AutoZoneCFG1437
Bosch69158
CarterP76230, P76876M
EVO DrivelineRE0924S
Ford5C3Z 9H307-BE, 6C3Z 9H307-BA
GMB525-2042
MotorcraftPFS-305
N/A6C3Z9H307BA, C0101M, 4010520
Precision FuelA33204, A43035
Spectra PremiumSP1150, SP2379M

DELPHI FG1437 Fits Vehicles

  • Ford F-250 Super Duty (2005-2007)
  • Ford F-350 Super Duty (2005-2007)
