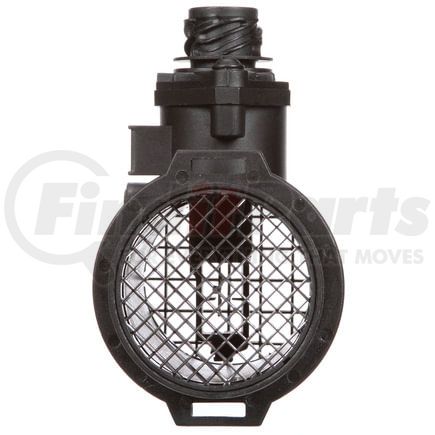

(888) 312-8812 Login SignupDELPHI AF10226 Mass Air Flow Sensor
$17799
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Sep 3
DELPHI AF10226 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10226 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Item Grade | Premium |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 2.748 IN |
| Inlet Connection Diameter | 69.8 MM |
| Outlet Connection Diameter | 2.8 IN |
| Outlet Connection Diameter | 70 MM |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Round |
| Housing Material | Plastic |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Clip |
| Mounting Bracket Included | No |
| Sensor Casing Length | 129 MM |
| Sensor Casing Width | 84 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | No |
| Seal Quantity | 0 |
| Sensor Casing Length | 5.0 IN |
| Sensor Casing Width | 3.3 IN |
| Intake Air Temperature (IAT) Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604238271 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10226 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2133357 |
| BMW | 13 62 1 736 224 |
| BWD | 221120M, MA1216 |
| Beck/Arnley | 158-0944 |
| Blue Streak Electronics New | MF21120N |
| Bosch | 0280217110 |
| CARDONE Reman | 74-10040 |
| Carquest | MQ7336 |
| Dorman | 917-881 |
| Duralast | DL-3039, DL-6033 |
| GLOBAL PARTS DISTRIBUTORS | 1813254 |
| N/A | 13621736224, 213-3357, 245-1219, 245-2219 |
| NAPA Reman Computers | XTP410040 |
| NGK SPARK PLUGS | MG0134 |
| NTK | MG0134 |
| Richporter | MA110 |
| STANDARD IGNITION | MAS0384 |
| Spectra Premium | MA110 |
| Standard Motor Products | MF21120, MAS0384 |
| VEMO | V20725148 |
| WAI | MAF10226T |
| WALKER PRODUCTS | 245-1219 |
DELPHI AF10226 Fits Vehicles
- BMW Z3 (1996-1998)
- BMW 850Ci (1995-1997)
- BMW 750iL (1995-2001)
- BMW 318ti (1996-1999)
- BMW 318is (1996-1997)
- BMW 318i (1996-1998)
