APSCO part description

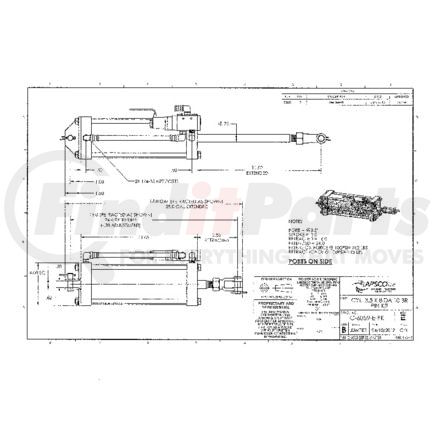

Hydraulic Cab Air Control Valve - Cylinder, 3.5 x 8 DA 10 Br Pin Kit

Type Tie Rod
Retracted Length 16.00”
Extended Length 24.00”
Type Tie Rod
Retracted 16.00”
Extended 24.00”

Product Description

3.5 x 8 Tailgate

Product Attributes

Application Tailgate Latch
Bore Diameter 3.5 in.
Stroke Length 8 in.
Cylinder Type Double Acting
Mounting Type Bracket End
Pin Kit Included Yes
Seal Kit Part No. SK-1779
Force Rating 962 LB Force at 100 PSI
Push Rod Thread Diameter 5/8"-18
Port Diameter 1/4"-18 NPT
Port Quantity 2
Bracket Length 10 in.
Notes with Electric Solenoid

APSCO® is a proud manufacturer of pneumatic cylinders, controls, and valves for the mobile, truck equipment, and automotive industries since 1964. The company continuously evolves to meet industry challenges and the changing needs of customers. But providing innovative solutions need not compromise quality, and that's APSCO's commitment since day one. The company makes use of the highest quality materials and the latest technology in manufacturing its products. And it rigorously tests them before shipment to ensure only safe and reliable APSCO products reach their customers. These stringent manufacturing processes and tests have earned them an ISO 9001:2001-certified company, beginning in 2004.
