(888) 312-8812 Login SignupNGK SPARK PLUGS ILTR6F9 NGK Laser Iridium Spark Plug
Tap to view 1 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS ILTR6F9 Part Description
Manufacturer
Product Description

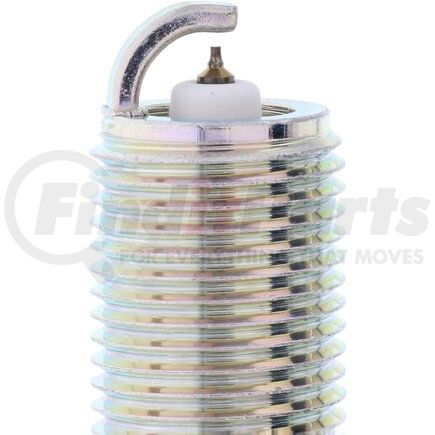

NGK Laser Iridium Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
NGK SPARK PLUGS ILTR6F9 Specifications
Product Attributes
| Part Number | ILTR6F9 |
| Stock Number | 90656 |
| Short Style Spark Plug | No |
| Service Number | ILTR6F9 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | No |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .036 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.07 IN |
| Manufacturer Heat Range | 6 |
| Seat Type | Tapered |
| Reach | 0.984 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.14 IN |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Iridium Platinum |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.9 MM |
| Insulator Height | 52.5 MM |
| Reach | 25.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 3.5 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295906569 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS ILTR6F9 Cross References
NGK SPARK PLUGS ILTR6F9 Fits Vehicles
- Ford Focus (2012)
