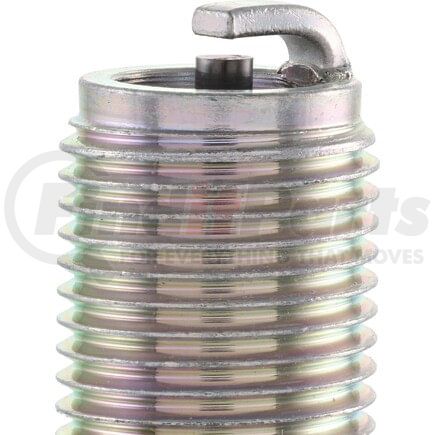

NGK SPARK PLUGS BR9ES S25 Part Description
Manufacturer
Product Description
NGK Standard Spark Plug Shop Pack
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BR9ES S25 Specifications
Product Attributes
| Stock Number | 714 |
| Part Number | BR9ES S25 |
| Short Style Spark Plug | No |
| Service Number | BR9ES S25 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.20 IN |
| Manufacturer Heat Range | 9 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Insulator Height | 56.0 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 1.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295007143 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR9ES S25 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | S40XLR, R41CXL, S41XLR, R41XL |
| Aprilia | 8206915 |
| Autolite | 3702, 4063, 3703, 4062 |
| Bosch | WR3CC, 7529 |
| Champion Spark Plug | 818, 8902-2, QN2C, QN2, 818C, RN2, 8902-1, 8902, RN2C |
| DENSO Auto Parts | W27ESR, W27ESR-U, 4045 |
| E3 Spark Plugs | E3.31 |
| Harley Davidson | HD7-8 |
| Honda | 98079-59816, 98079-59847, 98079-59876 |
| John Deere | TY26717, TY26718 |
| Kawasaki | 92070-1109, 92070-1053, 92070-1157 |
| N/A | BR9ES S25 |
| NGK | 714 |
| Peugeot | 754050, 801755 |
| Piaggio | AP8206915 |
| Robin | 065-01402-50 |
| Suzuki | 09482-00098, 09482-00127, 09482-00349 |
| Yamaha | 94701-00188, 94702-00188, 94703-00188 |
NGK SPARK PLUGS BR9ES S25 Fits Vehicles
- Arctic Cat Jag AFS Long Track (1990)
- Arctic Cat Jag AFS Deluxe (1990)
