PETERSON LIGHTING part description

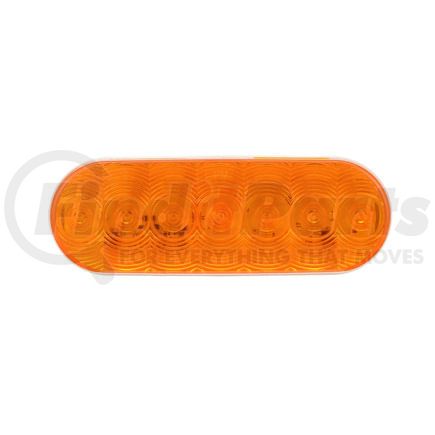

821A-7/822A-7 LumenX® Oval LED Front and Rear Turn Signal, PL3

Features & Benefits

  • New white diodes behind amber lens
  • 7-Diodes, Oval LED Amber Front & Rear Turn Signal
  • Advanced optics fully illuminate lens
  • Includes both turn signal and low intensity marker light circuits
  • Meets DOT standard for both front and rear turn signal and side marker requirements
  • Industry-standard PL3 socket integrated into housing
  • 822-7 has flange welded to light, forming a single unit
  • 9–16 volt operating range
  • Regulated design provides voltage protection and consistent light output over entire voltage range
  • Meets FMVSS 108 requirements in horizontal, vertical or any 360° position.
  • 821 kit includes light, grommet and 421-491 plug
  • 822 kit includes light and 421-491 plug

Product Description

LED TURN SIGNAL, FRONT & REAR, OVAL, GROMMET-MOUNT 6.5"X2.25"

Features & Benefits

  • 7 diodes.
  • Available in retail-friendly Viz Pack.
  • Lumenx® lens and circuitry.
  • Made in USA.
  • Voltage Regulated.
  • Meets DOT standards for both FRONT and REAR turn signal use.
  • White diodes behind amber lens.
  • Advanced optics fully illuminate lens.
  • Includes both turn signal and low intensity marker light circuits.
  • Meets DOT side marker requirements.
  • Industry-standard PL3 socket integrated into housing.
  • 822-7 has flange welded to light, forming a single unit.
  • 9–16 volt operating range.
  • Regulated design provides voltage protection and consistent light output over a wide voltage range.
  • Meets FMVSS 108 requirements in horizontal, vertical or any 360° position.
  • 821 kit includes light, grommet and 421-491 plug.
  • 822 kit includes light and 421-491 plug.

421-18: grommet (poly pack - std qty 12)

Product Attributes

Length 6.5 IN
Bulb Technology LED
Bulb/diode Count 7
California Proposition 65 Required Y
Container Type poly bag
Family LumenX
Height 2.31 in
Integral Reflex N
Lens Color amber
Light Color amber
Marine Use Y
Maximum Voltage 16 Volts
Minimum Voltage 9 Volts
Mounting Type grommet
Multi-volt N
Regulatory Compliance DOT
Shape oval
Termination AMP
Voltage 12 Volts
Width 1.62 in

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512204000
UPC 00044464993195
VMRS Code 034003191

Part Interchanges

PETERSON LIGHTING 821A-7 Cross Reference

We have 1 alternatives for the 821A-7 by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
