GATES G25234-0806 Part Description
Manufacturer
Product Description

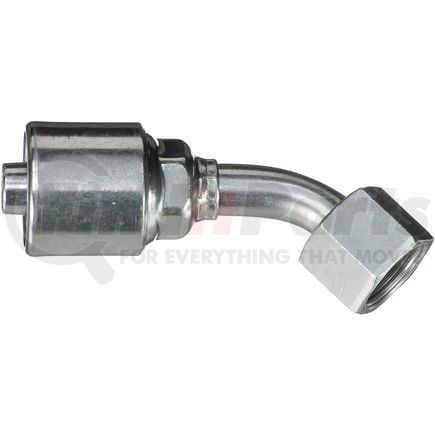

Female Flat-Face O-Ring Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25234-0806 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 8G-6FFORX45S |
| Thread Size | 11/16-16 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 22 MM |
| Drop Length | .43 IN |
| Cut-Off Length | 2.09 IN |
| Length | 3.57 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Bulkhead | No |
| Inside Diameter | 12.7 MM |
| Drop Length | 11 MM |
| Cut-Off Length | 53.2 MM |
| Length | 90.7 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00770075168980 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
