(888) 312-8812 Login SignupGATES G25504-1010 SAE Male Inverted Swivel - 90 Bent Tube (MegaCrimp)
Tap to view 3 more
MSRP: $47.57
$4149
Save $6.08
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
GATES G25504-1010 Part Description
Manufacturer
Product Description

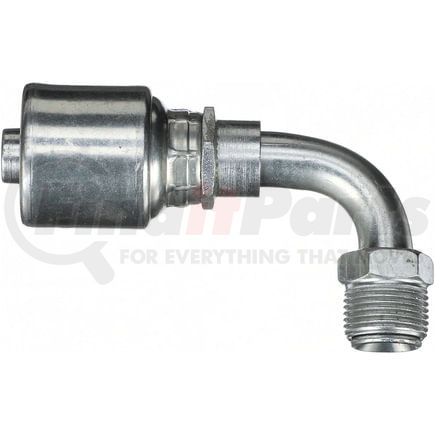

SAE Male Inverted Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25504-1010 Specifications
Product Attributes
| Coupling Description | MegaCrimp SAE Male Inverted Swivel - 90 Bent Tube |
| Industrial Description | 10G-10MIX90 |
| Thread Size | 7/8-18 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | .875 IN |
| Drop Length | 1.81 IN |
| Cut-Off Length | 2.41 IN |
| Length | 3.89 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 45 |
| Gender | Male |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Drop Length | 46 MM |
| Cut-Off Length | 61.3 MM |
| Length | 98.7 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | N |
| UPC | 00770075294634 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25504-1010 Cross References
| Brand | Part Number |
|---|---|
| Caterpillar | 147-1713 |
| N/A | 04032469 |
| NAPA | G25504-1010 |
