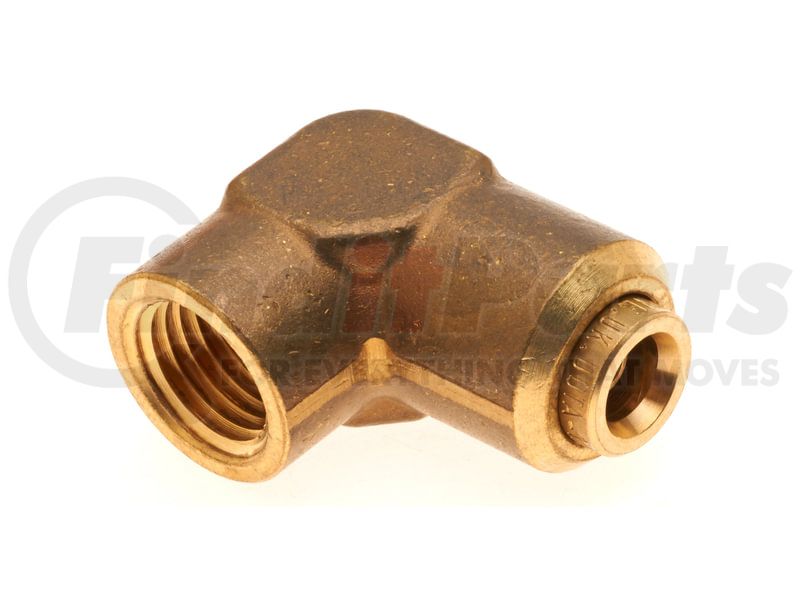

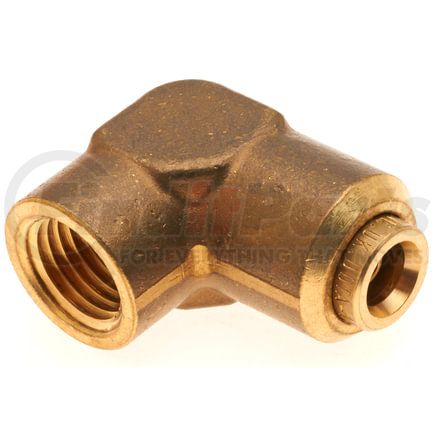

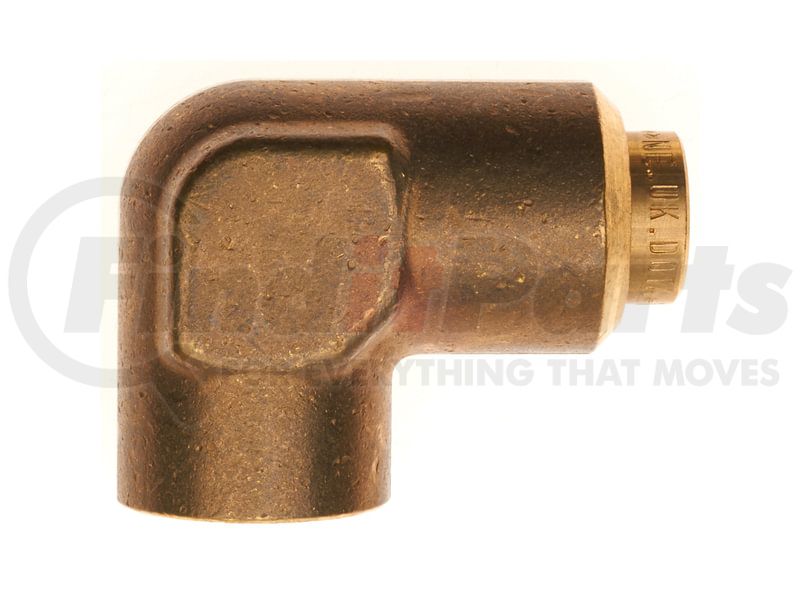

(888) 312-8812 Login SignupGATES G31154-0804 Air Brake to Female Pipe - 90 (SureLok)
Tap to view 1 more
$37.46
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES G31154-0804 Part Description
Manufacturer
Product Description
Air Brake to Female Pipe - 90 (SureLok)
Features & Benefits
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
GATES G31154-0804 Specifications
Product Attributes
| Coupling Description | SureLok Air Brake to Female Pipe - 90 |
| Industrial Description | 8AB-4FP90 |
| Thread Size | 1/4-18 |
| Outside Diameter | .5 IN |
| Stem Hex Size | 18 MM |
| Drop Length | .94 IN |
| Length | 1.16 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | 360 Brass |
| Seal Material | Ethylene Propylene |
| Drop Length | 23.9 MM |
| Length | 29.5 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 7412200015 |
| Stock Status | N |
| UPC | 00029769156735 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
GATES G31154-0804 Cross References
| Brand | Part Number |
|---|---|
| 725001755 | |
| N/A | 04034478 |
| NAPA | G31154-0804 |
| Weatherhead | 1870X8X4 |
