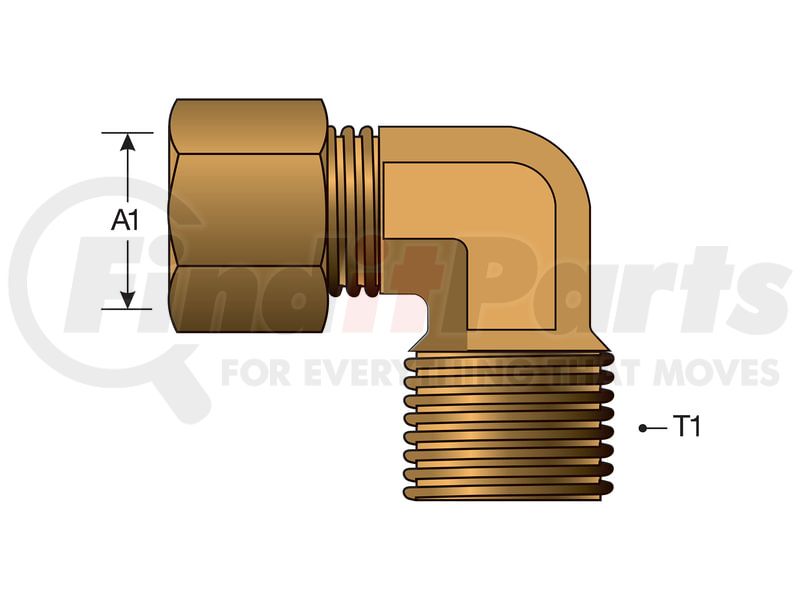

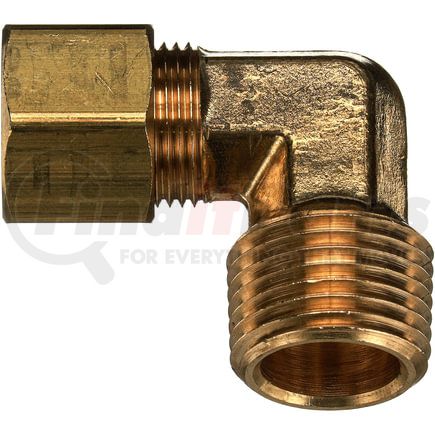

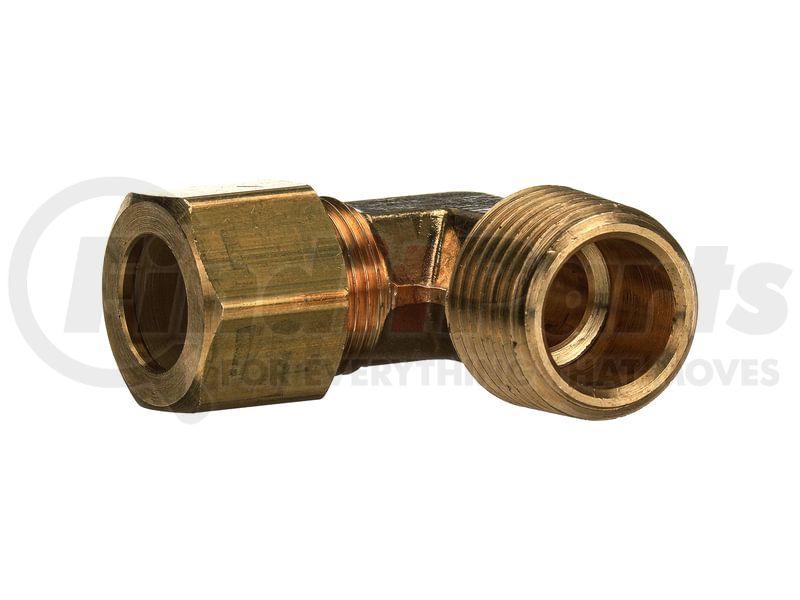

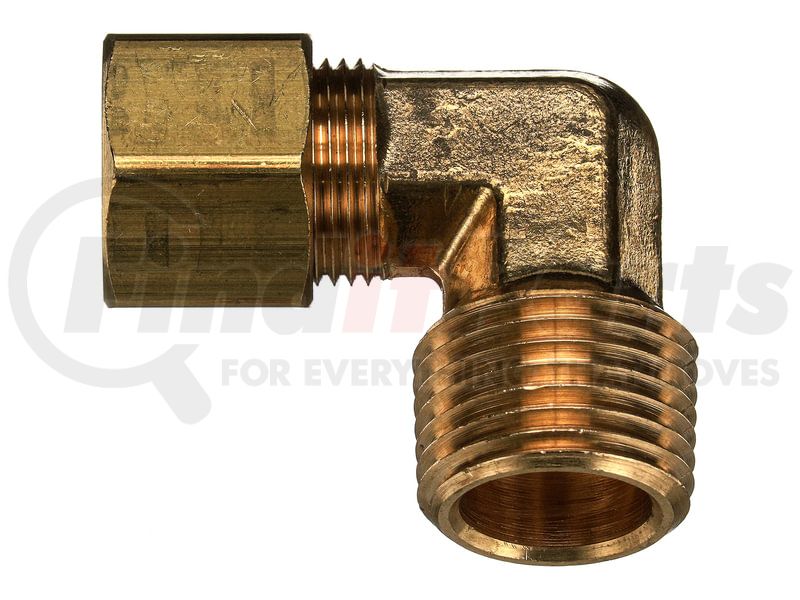

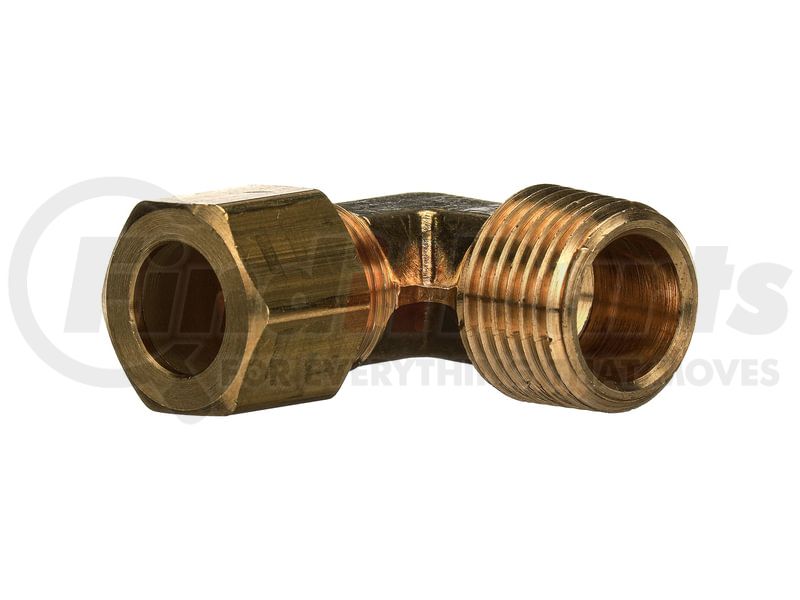

Gates G55104-0806 - Copper Tubing Industrial to Male Pipe - 90 (Compression)
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
Copper Tubing Industrial to Male Pipe - 90 (Compression)
Features & Benefits
- Used with copper, aluminum and plastic tubing
- Working pressure up to 2,800 psi depending on the tube size
- Temperature Range: -65 Deg. F to +250 Deg. F (-53 Deg. C to +121 Deg. C)
Product Attributes
| Hydraulic Fitting Type | Copper Tubing Industrial Compression - Copper Tubing Industrial to Male Pipe - 90 |
| Industrial Description | 8CTI-6MP90 |
| Thread Size | 3/8-18 |
| Outside Diameter | .5 IN |
| Maximum Working Pressure | 2000 PS |
| Temperature Rating | -65 Deg. F to +250 Deg. F (-53 Deg. C to +121 Deg. C) |
| Material | 360 Brass |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7412200085 |
| Country of Origin (Primary) | US |
| UPC | 00029769162699 |
| VMRS Code | 059032012 |
| UNSPSC | 27121700 |
Part Interchanges
