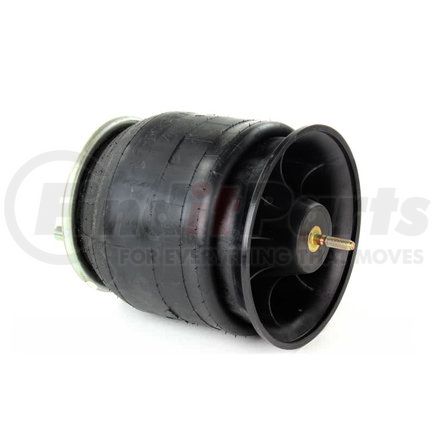

W013589780 by FIRESTONE

W013589780 by FIRESTONE

Number:W013589780
Manufacturer:FIRESTONE
Description:

SPRING-AIR HEAVY-DUTY

$134.53

MSRP: $206.97



Save: $72.44

Shipping Information

This item qualifies toward free domestic Ground shipping when ordered online. Only orders with an item total over $100.00 are eligible for this offer. This offer not valid for freight, LTL, or any express shipping or international orders. To ship same day, orders must be placed by 2pm EST (11am PST) during the business week. See more

See if you qualify for express

or

FIRESTONE part description

Order Number:

W01-358-9780

Bellows #:

1T15ZR-6

Assembly Weight:

16.6 lbs

Design Height:

13-15.5 inches

Minimum Jounce Height:

N/A inches

Maximum Rebound Height:

N/A inches

Loading Capacity at 20 psig:

1,600 lbsf

Loading Capacity at 60 psig:

4,800 lbsf

Loading Capacity at 90 psig:

7,200 lbsf

Natural Frequency:

Hz

Maximum Diameter:

12.7 inches

Material Type:

Natural Rubber

Operating Temperature:

57Cº to-54Cº

Remarks: ZR-8 ON TRIANGLE PISTON

TR: B-4329

Cross References
AS9780, 1R12-303 Firestone 1T15ZR6 FREIGHTLINER 1613810000 FREIGHTLINER 1613810002 FREIGHTLINER 1614377000 Freightliner 161673000 Airtech 32303 C ContiTech 1DK23K9780 Airtech 32303K ContiTech 910S16A382 ContiTech 910S16P382 Brake & Wheel M3550 W013775779 W013779784 W013779785
