(888) 312-8812 Login SignupA reversible sleeve design built into the Firestone Suspension Air Spring rolls smoothly in either compression direction, distributing bellows wear more evenly than a bellows restricted to a single rolling direction. That even wear distribution extends service life particularly on applications with frequent, full-range suspension travel rather than small, consistent movements. The Firestone W013588997 is built to the 1T14CB design, matching the piston diameter and bead seat that particular suspension application needs. Evenly distributed wear across the full bellows surface delays the point at which any single section becomes a failure point.

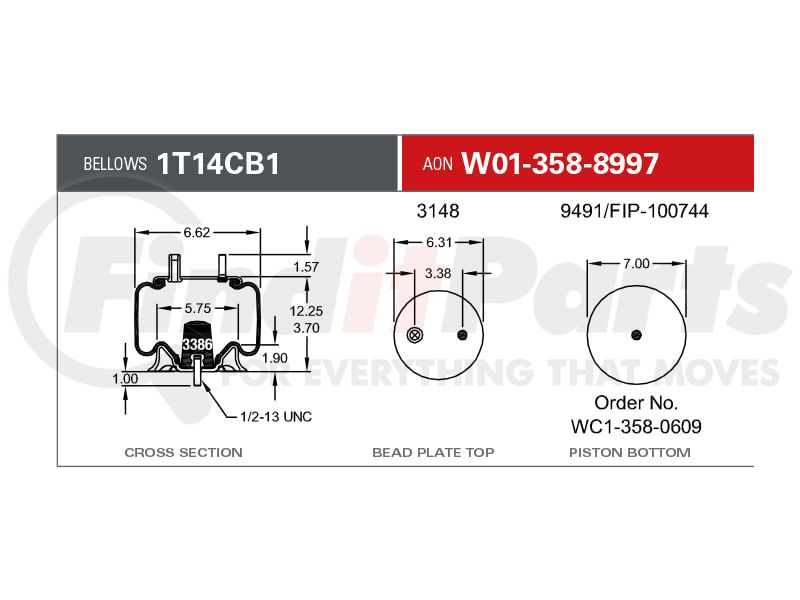

TECHNICAL DATA -
|
Order Number: |
W01-358-8997 |
|
Bellows #: |
1T14C-1 |
|
Assembly Weight: |
6.6 lbs |
|
Design Height: |
6.25-7 inches |
|
Minimum Jounce Height: |
3.71 inches |
|
Maximum Rebound Height: |
N/A inches |
|
Loading Capacity at 20 psig: |
720 lbsf |
|
Loading Capacity at 60 psig: |
2,160 lbsf |
|
Loading Capacity at 90 psig: |
3,240 lbsf |
|
Natural Frequency: |
Hz |
|
Maximum Diameter: |
8.9 inches |
|
Material Type: |
Natural Rubber |
|
Operating Temperature: |
57Cº to-54Cº |
|
Remarks: |
|
|
TR: 8104 |
| Brand | Part Number |
|---|---|
| W013588997, 566183003, FIW013588997 | |
| BLUE BIRD | 1263581 |
| CONTITECH | 665B11S525, AS8997, 68119 |
| DAYTON PARTS | 452-8997L |
| ELDORADO BUS | 71040301 |
| FIRESTONE | 1T14CB-1 |
| FLXIBLE | 6336196 |
| GOODYEAR | 1R9019, 1R9065 |
| GOODYEAR PART | 1R9-065 |
| MERITOR | FS8997 |
| PISTON | 9491 |
| RIDEWELL | 1003588997C |
| TOP PLATE | 3148 |
| TRIANGLE SUSPENSION | AS-8525 |
| WORLD AMERICAN | WA01-8997C |
Be the first to review this product!
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
