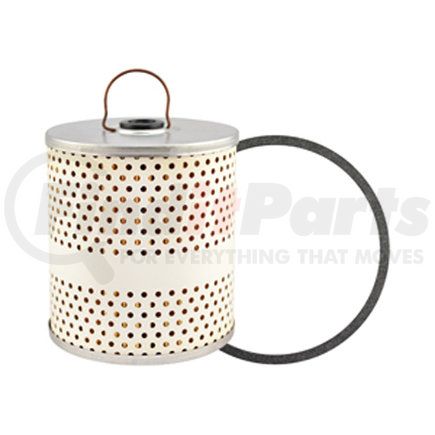

(888) 312-8812 Login SignupBALDWIN PF809 Fuel Filter - with Bail Handle used for Various Truck Applications
$26988
Package Price for 12 Units
@ $22.49 per unit
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
BALDWIN PF809 Part Description
Manufacturer
Product Description
Fuel Element with Bail Handle
Application Summary
Al-Chalm, Case, Cat, Euclid, Oliver Equip
Fuel Element with Bail Handle
BALDWIN PF809 Specifications
Product Attributes
| Related to | {P41} (By-Pass Lube Version) |
| Fits | Allis Chalmers, Case, Caterpillar, Continental, Euclid, Massey Ferguson, Oliver Equipment |
| Furnished Gasket | [1] Included |
| Grommets | [2] Attached |
| Height | 4.875 |
| Height (mm) | 123.8 |
| Inside Diameter 1 | 2-Jan |
| Inside Diameter 1 (mm) | 12.7 |
| Outside Diameter 1 | 4 7/32 |
| Outside Diameter 1 (mm) | 107.2 |
| Replaces | Allis Chalmers 43711640; Case 73220; Massey Ferguson 1006589-M92 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00791440008748 |
BALDWIN PF809 Cross References
| Brand | Part Number |
|---|---|
| BLDPF809 | |
| ACDELCO | TP527 |
| ALLIS-CHALMERS | DE64477, DE64472, 4371764, 43711640, 4371164, 43711630, 4371163, 43644974, 4364497, 43644776, 4364477, 24938 |
| AMERICAN PARTS | 95104, 479 |
| AP LOCKHEED | FG371, 574371 |
| B & W LATHROP | P1841, P1719 |
| BALDWIN FILTERS | PF809, F809P |
| BIG A FILTER | 95104 |
| BUDA | DE64477, DE64472, 4371764, 43711640, 4371164, 43711630, 4371163, 43644974, 4364497, 43644776, 4364477, 24938 |
| CARQUEST | 86104 |
| CASE | SD802F3030, 73220, 72320 |
| CHAMPION LABORATORIES | 1104F |
| COCKSHUTT | TO19109 |
| CONTINENTAL AG | SD802F3030 |
| COOPERS | G573, AZF044 |
| CROSLAND | 550 |
| DELUXE | FF213, 213 |
| DIAMOND REO | 4371164 |
| DONALDSON | P779373, P551164 |
| EATON | 2042048 |
| FAIRBANKS-MORSE | 12002744, 1104 |
| FIAT | DE64477, DE64472, 74371764, 74371164, 74371163, 74364497, 74364477, 70024938, 4371164, 4371163, 4364497 |
| FILT | G1036 |
| FLEETGUARD | FF129 |
| FLEETRITE | FFR8129 |
| FRAM | F1104, C1104 |
| GENERAL ELECTRIC | 1104 |
| GM GENERAL MOTORS | 5573618 |
| GRAINGER | 4ZJC8 |
| GUD FILTERS | G573 |
| HASTINGS | PF809, FF871 |
| HASTINGS OLD NUMBER | FF871 |
| HERCULES | 180261B, 180256CS |
| HILL DIESELS | RC3181 |
| HYSTER | 5091, 4091 |
| KNECHT | EH358 |
| KRALINATOR | F55 |
| LETOURNEAU | 4371164 |
| LUBER-FINER | L3570F, L1104F |
| MANN+HUMMEL | H10151N, H10151 |
| MASSEY FERGUSON | 1006589M92, 1006589M91, 1006589M2, 1006543M91, 1006543M1, 1006534M1 |
| MICRO PORE | PM1104 |
| MOTORCRAFT | FL199, FD199 |
| NAPA GOLD | 3104 |
| OHIO LOCOMOTIVE CRANE | 1104 |
| ONAN | 149P847, 1490847 |
| P&H PAWLING & HARNISCHFEGER | 41941, 1046Z116 |
| PERRY | PF213 |
| PUROLATOR | T16 |
| RYCO | R1104P, R1104, R101 |
| SAVARA | 92412117 |
| SHEPPARD | 902, 310252, 310233, 1104 |
| STAY READY | SRP1104 |
| TOWMOTOR | 637898 |
| TRACTOMOTIVE | DE64477, DE64472, 4371764, 43711640, 4371164, 43711630, 4371163, 43644974, 4364497, 43644776, 4364477, 24938 |
| UNIVERSAL FILTERS | 1104 |
| WABCO | 4371164 |
| WAUKESHA | 951746 |
| WESTERN TOOL CO. | P1104 |
| WGB | S165CC |
| WHITE | TO19109, TO18469 |
| WINSLOW | WFF4, FWF4 |
| WIX | CW1104M, 33104, 533104 |
| WIX FILTERS | 33104 |
| WOODGATE | WGF129 |
| YALE | 2042048 |
BALDWIN PF809 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN PF809 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
