PERFORMANCE FRICTION part description

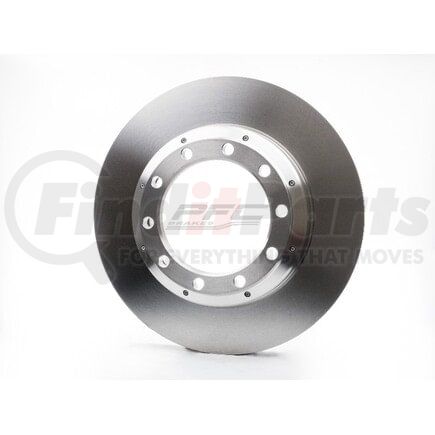

Front One-Piece Rotors (Smooth): Medium Truck Retrofit Disc w/isolated ABS ring for Chevrolet GMC C5500,C6500,C7500

Product Description

Medium Duty Retrofit Rotor

Product Attributes

Rust Resistant Coating None
Unspsc 25171715
ABS Sensor Ring Included Yes
Bolt Pattern 10x7.25in / 10x184.15mm
Center Hole Size (in) 6.00
Center Hole Size (mm) 152.5
Construction Full cast
Cross Drilled No
Discard Thickness (in) 1.417
Discard Thickness (mm) 36.0
Inner Bearing Included None
Number of Bolt Holes 10
Number of Studs None
Outside Diameter (In) 15.35
Outside Diameter (MM) 390
Overall Height (in) 3.38
Overall Height (MM) 86.0
Rotation Direction Non-directional
Slotted No
Solid Or Vented Vented
Studs Included None
Style OE Replacement
Surface Finish Non-directional
Part Type Code 1896

PERFORMANCE FRICTION 39008620 Cross Reference

We have 3 alternatives for the 39008620 by PERFORMANCE FRICTION:

Fits Vehicles

  • Isuzu FXR (2007-2009)
  • GMC T7500 (2004-2009)
  • GMC T6500 (2004-2009)
  • Chevrolet T7500 (2004-2009)
  • Chevrolet T6500 (2004-2009)
  • Hino 268 (2005-2011)
  • Hino 238 (2005-2012)
  • GMC C7500 Topkick (2003-2009)
  • GMC C6500 Topkick (2003-2009)
  • GMC C5500 Topkick (2003-2009)
  • Chevrolet C7500 Kodiak (2003-2009)
  • Chevrolet C6500 Kodiak (2003-2009)
  • Chevrolet C5500 Kodiak (2003-2009)
  • GMC C4500 Topkick (2003-2009)
  • Chevrolet C4500 Kodiak (2003-2009)

Headquartered in Clover, South Carolina, Performance Friction® is a leading brake manufacturer worldwide. It traces its roots to 1984 when it first launched its revolutionary brake pads made of non-asbestos friction material under the CarbonMetallic© brand. Ten years after its founding, it began developing iron brake discs using unique dynamic symmetry properties. Since then, the company has constantly been evolving, launching new product lines and gaining even more recognition in the racing world. PFC Brakes continues to live up to its promise of creating products with “No Compromises.” Whether severe duty or motorsport brakes, PFC Brakes delivers consistent quality in any condition.
