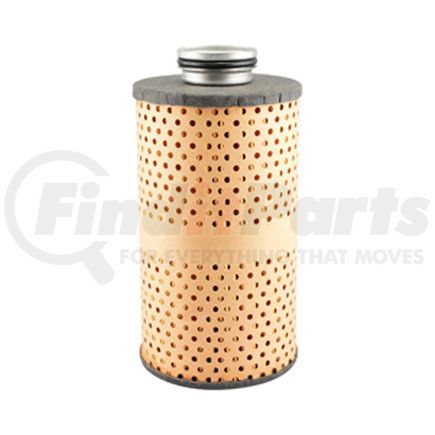

(888) 312-8812 Login SignupBALDWIN PF226 Fuel Filter - Secondary Fuel Element used for Various Truck Applications
$3349
Limited availability at this price!
In Stock
Get as soon as Tuesday, Nov 17
BALDWIN PF226 Part Description
Manufacturer
Product Description
Secondary Fuel Element
Application Summary
Int'l Engines
Features & Benefits
- Element media captures fine particles in the fuel
- Protects injector nozzles from abrasive particles in the fuel
- Secondary-stage position suits the final filter in the fuel line
- Slides into an existing filter housing for service
Secondary Fuel Element
Baldwin Secondary Fuel Filter Element
Secondary fuel filtration is the last guard before the injectors, and the Baldwin Secondary Fuel Filter Element is a replaceable secondary element for many trucks. A secondary element catches the finest particles that slip past the primary filter, protecting the injectors' tight clearances. Because the element is the part that fills with debris, it is replaced while the housing stays in service. The Baldwin PF226 gives the fuel system a clean final filter between the lift pump and the injectors.
BALDWIN PF226 Specifications
Product Attributes
| Remark 2 | & |
| Replaces | International 266839-R91 |
| Outside Diameter 1 (mm) | 88.1 |
| Outside Diameter 1 | 3.46875 |
| Optional Gasket | {G241} |
| O-Ring | [1] Attached |
| Inside Diameter 2 (mm) | 25.4 |
| Inside Diameter 2 | 1 |
| Inside Diameter 1 (mm) | 14.3 |
| Inside Diameter 1 | 16-Sep |
| Height (mm) | 171.5 |
| Height | 6.75 |
| Grommets | [1] Attached |
| Fits | Adams, Austin-Western, Galion, International, Link-Belt Equipment; International Engines, Equipment |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| UPC | 00791440002876 |
BALDWIN PF226 Cross References
| Brand | Part Number |
|---|---|
| BLDPF226 | |
| ACDELCO | TP521 |
| AMERICAN PARTS | 95148, 452 |
| AP LOCKHEED | FH286, FG386, AP697A, 574386, 574286 |
| BALDWIN FILTERS | PF226, F226F |
| BIG A FILTER | 95148, 452 |
| BOWSER-BRIGGS | B117 |
| BRIGGS | B117 |
| BRIGGS & STRATTON | B117 |
| CARQUEST | 86148 |
| CASE | 279980R91, 266839R91, 259710R91, 259479R93, 259479R92 |
| CENEX | CO208 |
| CHAMPION LABORATORIES | L633F, 663F |
| CLEVELAND | 266839R91, 259479R92, 259479R91 |
| CO-OP | FF663 |
| COOPERS | G188, FEM4050 |
| CROSLAND | 437 |
| CYCLONE | PM79 |
| DELUXE | FF208, 208 |
| DIEXA | DXTC663 |
| DONALDSON | P779270 |
| FIAAM | FA4198 |
| FILGA | FF663 |
| FILT | G1044 |
| FLEETGUARD | FF126 |
| FLEETRITE | FFR8126 |
| FRAM | C1161PL, C1161 |
| GALION | D89850, D88469 |
| GM GENERAL MOTORS | 6438494, 5574591 |
| GONHER | G1161M |
| GOULD | P79 |
| GRAINGER | 4ZGU8 |
| GUD FILTERS | G188, G103 |
| HASTINGS | FF903 |
| HASTINGS OLD NUMBER | 903 |
| IHC INTERNATIONAL HARVESTER | 266840R92, 266839R92, 266839R91, 266838R91, 259710R91, 259701R91, 259479R96, 259479R94, 259479R92, 259479R91, 258655R92, 258655R91, 250351R91, 250332R92, 250332R91, 2250332R91, 841379R91, 279980R91 |
| KNECHT | EK496 |
| KRALINATOR | F819 |
| LUBER-FINER | LP663F, L663F |
| MANN+HUMMEL | H931O |
| MICRO PORE | PM1161 |
| MOBIL 1 | MTC663 |
| MOTORCRAFT | FL207, FD207 |
| NAPA GOLD | 3148 |
| NELSON | 88205A |
| NELSON-WINSLOW | FIH736 |
| PERRY | PF208 |
| PUROLATOR | R8, PR66, F60008 |
| REFILCO | 266839M |
| RYCO | R403P |
| SAVARA | 92048317, 212610 |
| SOPARIS | CANP133 |
| STAY READY | SRP1161 |
| UNITED ENGINE LIFE | P259479 |
| WESTERN TOOL CO. | P79, PIH91 |
| WGB | S141CP |
| WINSLOW | WFXIH736O, WFIH736, FIH736, F736, F6310, F1H736 |
| WIX | CW148MP, 533148, 33148 |
| WIX FILTERS | 33148 |
| WOODGATE | WGF126 |
BALDWIN PF226 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN PF226 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
BALDWIN PF226 Questions & Answers
No questions yet
Be the first to ask a question about this product!
