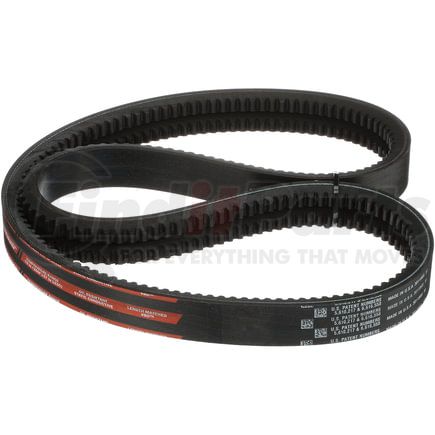

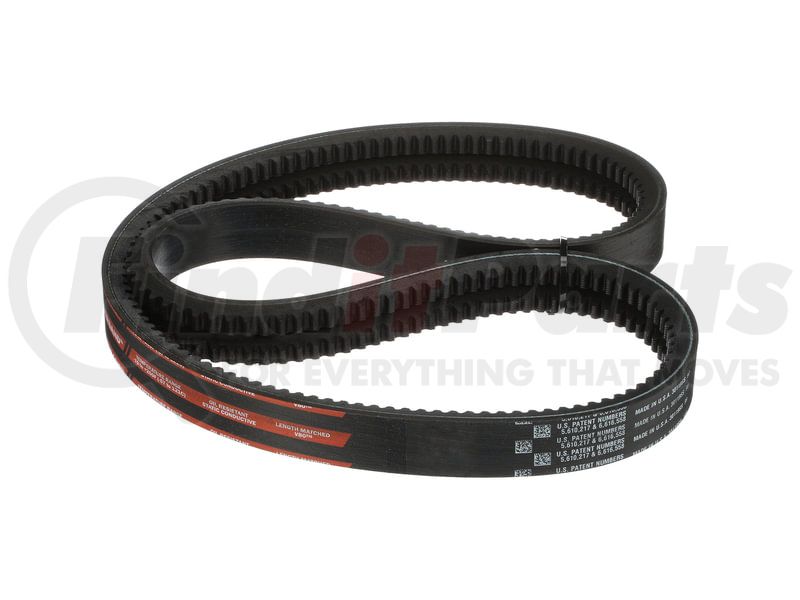

(888) 312-8812 Login SignupGATES 2/5VX1075 Super HC PowerBand Narrow Section Molded Notch Joined V-Belt
Tap to view 1 more
SHIPS TODAY
$23399
Limited availability at this price!
In Stock
Get it by Monday, Aug 10
GATES 2/5VX1075 Part Description
Manufacturer
Product Description
Super HC PowerBand Narrow Section Molded Notch Joined V-Belt
Application Summary
2003-02 MCI, G4500, Detroit Diesel 6-Cyl. 12.7 L Diesel, A.C.
Features & Benefits
- Tie Band construction assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
- Highly resistant to tensile and flexing forces, fatigue and shock loads offering high stability and smooth running on the toughest drives
- Strong band controls belt-to-belt distance and prevents sideways bending
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Meets or exceeds RMA standards for static conductivity and heat and oil resistance
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in 3V, 3VX, 5V, 5VX and 8V cross-sections
GATES 2/5VX1075 Specifications
Product Attributes
| Type | Narrow Section Molded Notch Joined V-Belt |
| Cross Section Designation | 5VX |
| Strand Quantity | 2 |
| Top Width | 1.25 in |
| Top Width Per Strand | .62 IN |
| Outside Circumference | 108.125 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | Ethylene Elastomer (EE) |
| Cord Material | Polyester |
| Top Width | 32 mm |
| Top Width Per Strand | 16 MM |
| Outside Circumference | 2746 mm |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4010391000 |
| Stock Status | N |
| UPC | 00770075147794 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 2/5VX1075 Cross References
| Brand | Part Number |
|---|---|
| 829352493434, 93490002 | |
| Alliance Truck Parts | GT2/5VX1075 |
| CARQUEST | 2/5VX1075 |
| Motor Coach Industries | 08276028 |
| NAPA | 2/5VX1075 |
| NAPA Belts/Hose | 2/5VX1075 |
