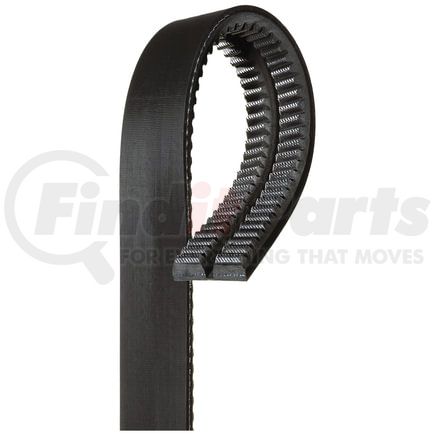

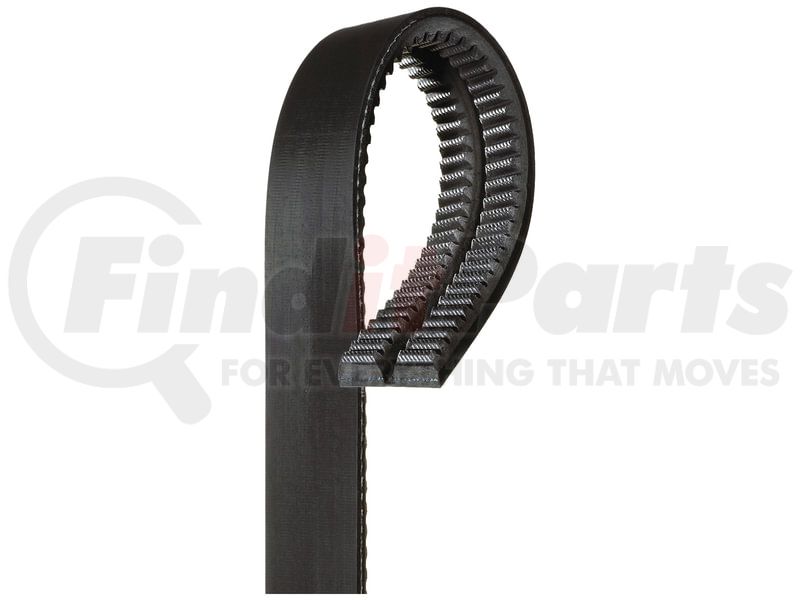

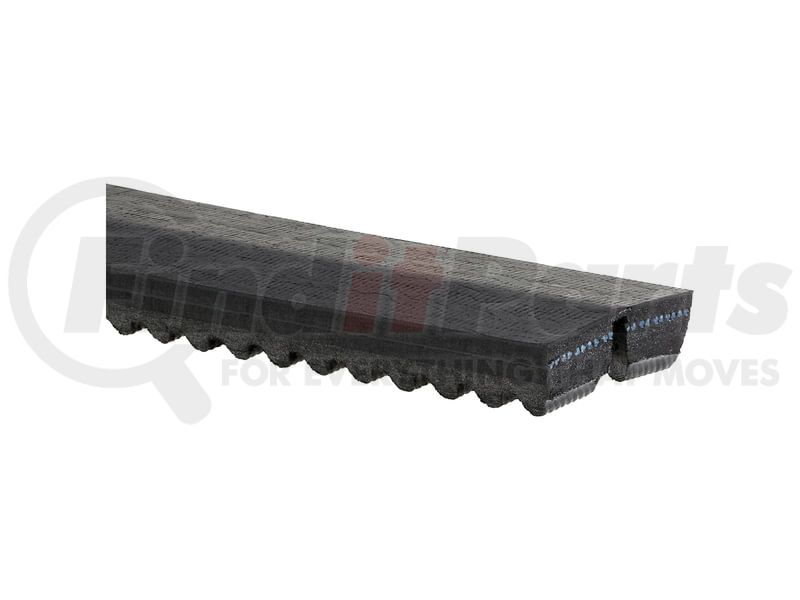

Gates 2/9720PB - Green Stripe PowerBand Heavy-Duty Joined V-Belt
$8599
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Green Stripe PowerBand Heavy-Duty Joined V-Belt
Application Summary
1997 Mack, CH Series, Mack 6-Cyl. 12.0 L Diesel, Fan & Alt.
Features & Benefits
- Unique tensile cord design gives belt extra strength, added flexibility and shock-load resistance
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- Even load distribution between strands provides better shock-load absorption
- Eliminates belt turnover or belts jumping off the drive
- Meets or exceeds SAE J636 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
Product Attributes
| Type | High Capacity Joined V-Belt |
| Cross Section Designation | HC50 |
| Angle | 36 |
| Strand Quantity | 2 |
| Top Width | 1.125 in |
| 2000 | .5 IN |
| Outside Circumference | 72.85 in |
| Effective Length | 71.97 in |
| Construction | Notched |
| 9837 | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 28 mm |
| 2000 | 13 MM |
| Outside Circumference | 1850 mm |
| Effective Length | 1828 mm |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4010343000 |
| UPC | 00072053199437 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
Fits Vehicles
- Mack CH (1997)
- Mack CL (1992-1997)
