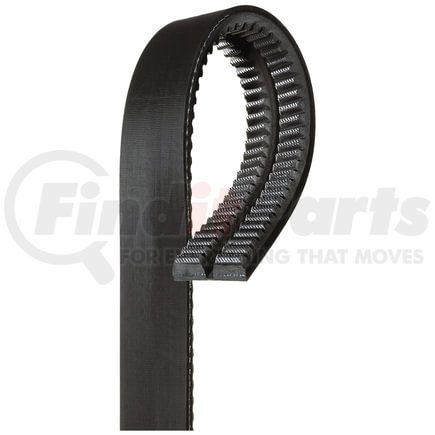

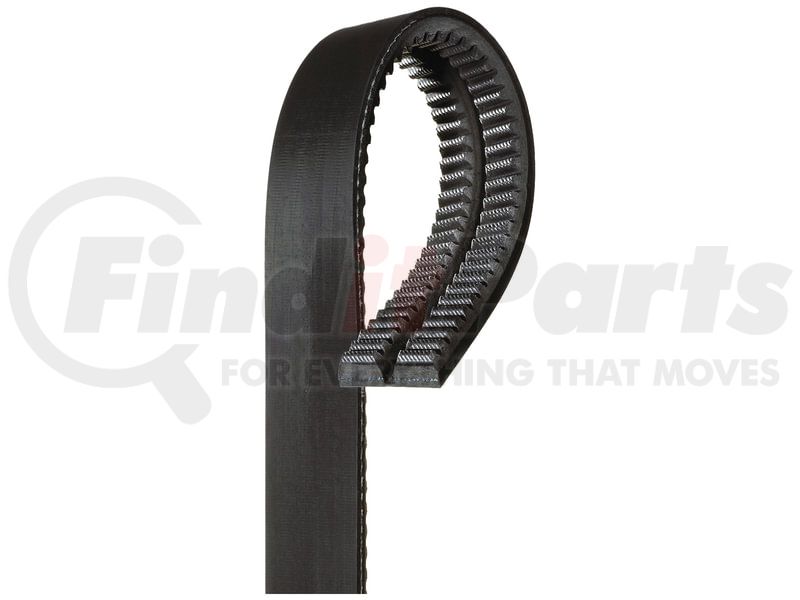

Gates 2/9463PB - Green Stripe PowerBand Heavy-Duty Joined V-Belt
$2049
MSRP: $72.93
Save: $52.44
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Green Stripe PowerBand Heavy-Duty Joined V-Belt
Application Summary
1996-1987 Kenworth, T800, Caterpillar 3406 Diesel, Alt.
Features & Benefits
- Unique tensile cord design gives belt extra strength, added flexibility and shock-load resistance
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- Even load distribution between strands provides better shock-load absorption
- Eliminates belt turnover or belts jumping off the drive
- Meets or exceeds SAE J636 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
Product Attributes
| Type | High Capacity Joined V-Belt |
| Cross Section Designation | HC50 |
| Angle | 36 |
| Strand Quantity | 2 |
| Top Width | 1.125 in |
| Top Width Per Strand | .5 IN |
| Outside Circumference | 47.05 in |
| Effective Length | 46.17 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 28 mm |
| Top Width Per Strand | 13 MM |
| Outside Circumference | 1195 mm |
| Effective Length | 1173 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| UPC | 00072053416664 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
Fits Vehicles
- Kenworth W900 (1995-1996)
- Freightliner FLB (1994-1996)
- International 9900 (1999)
- Freightliner FLA086 (1990-1994)
- International 9900ix (2000)
- International 9900i (2000-2003)
- Freightliner FLD120 (1990-1996)
- Freightliner FLC112 (1990-1996)
- Volvo WI (1996-1998)
- Volvo WG (1996-1997)
- Peterbilt 379 (1988-1999)
- Peterbilt 377 (1988-1995, 1997-1999)
- Peterbilt 362 (1990-1996)
- Peterbilt 375 (1990-1996)
- Peterbilt 320 (1992-1995)
- Peterbilt 357 (1990-1997)
- Kenworth T600A (1987-1996)
- Peterbilt 378 (1988-1999)
- Kenworth T800 (1987-1996)
- International 9400i SBA (2000-2003)
- International 8100 (1998-1999)
- International 9200i SBA (2000-2003)
- International 9200 SBA (1995-2000)
- International 9600 (1994-1995)
- International 9400 (1991, 1994-1995, 1997)
- International 9300 (1991, 1994-1997)
- White/GMC WHS (1990)
- White/GMC WHEB (1991-1994)
- White/GMC WHLB (1991-1994)
- White/GMC WIA (1994-1995)
- White/GMC WHR (1990-1994)
- White/GMC WHL (1990-1994)
- White/GMC WG (1990-1995)
