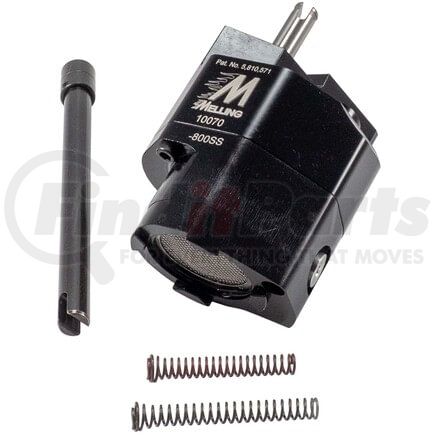

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS 10070-800SS 10070-800SS High Performance, High Volume, High Pressure, Billet Steel Oil Pump
Tap to view 4 more
$67199
Limited availability at this price!
In Stock
Get as soon as Tuesday, Nov 10
MELLING ENGINE PRODUCTS 10070-800SS Part Description
Manufacturer
Product Description
High Performance Oil Pump
Features & Benefits
- Aluminum billet high volume oil pump for street and strip applications with 8" deep pan.
- 25% increase in volume over stock oil pump.
- Lightweight billet 6061-T6 aluminum housing and cover with a durable anodized hardcoat and high volume billet steel gears.
- Pump shafts have been extended into the cover for support.
- Pickup screen has been integrated into the pump body and features a stainless steel wire mess.
- Multiple pressure settings and CNC manufactured to exacting tolerances and surface finishes.
- Supercharged inlet allows for improved performance at high RPM's.
- Includes 12770 chrome moly intermediate shaft and +10 psi and -10 psi relief springs.
- The chrome moly drive shaft has been extended.
MELLING ENGINE PRODUCTS 10070-800SS Specifications
Product Attributes
| Title | High Performance Oil Pump |
| Gear Material | Billet Steel |
| Width | 4.250 IN |
| Width | 108.00 MM |
| Height | 6.000 IN |
| Height | 152.00 MM |
| Grade Type | Performance |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 1 |
| Drive Type | Drive Shaft |
| Oil Pump Type | Gear |
| Pickup Screen Diameter | 1.650 IN |
| Pickup Screen Diameter | 40.00 MM |
| Drive Shaft Included | Yes |
| Mounting Hole Diameter | 0.450 IN |
| Mounting Hole Diameter | 11.00 MM |
| Adjustable Bypass Pressure | Yes |
| Additional Cover Shaft Support | Yes |
| Alternate Pressure Springs Included | Yes |
| Gear Type | Spur Gear |
| Anti-Cavitation | No |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | High Volume |
| Additional Volume Over Stock Percentage | 25% |
| Upgrade for Pump Number | M-77HV |
| Optional Spring Pressure 1 | (Red) 60 PSI |
| Manufactured For | GM SBC |
| Manufactured Pressure | (Pink) 70 PSI |
| Optional Spring Pressure 2 | (Brown) 80 PSI |
| Screen Information | Screen Included 8" |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Cover Material | Billet Aluminum |
| Gears Included | Yes |
| Governor Spinner Included | No |
| Guide Included | Yes |
| Hardware Included | No |
| Inlet Size (in) | Not Applicable |
| Intermediate Shaft Included | Yes |
| O-Ring Included | No |
| Inlet Size (mm) | Not Applicable |
| Nylon Bushing Included | No |
| Pump Cover Included | Yes |
| Spacer Included | No |
| Pickup Screen Included | Yes |
| Shaft Material | Chromoly Steel |
| Timing Cover Included | No |
| Washers Included | No |
| Housing Material | 6061-T6 Billet Aluminum |
| Housing Finish | Anodized |
| Pickup Tube Diameter | 1.650 IN |
| Pickup Tube Diameter | 40.00 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309060 |
| Country of Origin (Primary) | US |
| UPC | 00729295103868 |
MELLING ENGINE PRODUCTS 10070-800SS Cross References
| Brand | Part Number |
|---|---|
| MELLING ENGINE PRODUCTS | 10070-800SS |
| Melling Select Performance | 10070-800SS |
| Milodon | 18910 |
| Moroso | 22163 |
MELLING ENGINE PRODUCTS 10070-800SS Fits Vehicles
- Chevrolet Bel Air (1965-1975)
- Chevrolet Biscayne (1965-1972)
- Chevrolet Blazer (1973-1974)
- Chevrolet Brookwood (1969-1972)
- Chevrolet C10 (1975-1980)
- Chevrolet C10 Pickup (1968-1974)
- Chevrolet C10 Suburban (1968-1980)
- Chevrolet C1500 (1990-1993)
- Chevrolet C20 (1975-1986)
- Chevrolet C20 Pickup (1968-1974)
- Chevrolet C20 Suburban (1968-1986)
- Chevrolet C2500 (1991-1994)
- Chevrolet C2500 Suburban (1992-1994)
- Chevrolet C30 (1975-1986)
- Chevrolet C30 Pickup (1968-1974)
- Chevrolet C3500 (1988-1994)
- Chevrolet C3500HD (1991-1994)
- Chevrolet C50 (1986)
- Chevrolet C60 (1985)
- Chevrolet Camaro (1967-1972)
- Chevrolet Caprice (1966-1976)
- Chevrolet Chevelle (1965-1973)
- Chevrolet Chevy II (1968)
- Chevrolet Corvette (1965-1974)
- Chevrolet El Camino (1966-1975)
- Chevrolet Estate (1969-1970)
- Chevrolet G10 Van (1973-1974)
- Chevrolet G20 (1976)
- Chevrolet G20 Van (1973-1974)
- Chevrolet G30 (1975-1976, 1988-1994)
- Chevrolet G30 Van (1973-1974)
- Chevrolet GP3500 (1993-1994)
- Chevrolet Impala (1965-1976)
- Chevrolet K10 (1976, 1980)
- Chevrolet K10 Pickup (1968-1974)
- Chevrolet K10 Suburban (1968-1974)
- Chevrolet K20 (1976-1978)
- Chevrolet K20 Pickup (1968-1974)
- Chevrolet K20 Suburban (1968-1974, 1985)
- Chevrolet K2500 (1991-1994)
- Chevrolet K2500 Suburban (1992-1994)
- Chevrolet K30 (1977, 1980-1986)
- Chevrolet K30 Pickup (1968-1974)
- Chevrolet K3500 (1988-1994)
- Chevrolet K5 Blazer (1976-1978)
- Chevrolet Kingswood (1969-1972)
- Chevrolet Laguna (1973-1975)
- Chevrolet Malibu (1965-1967, 1973-1975)
- Chevrolet Monte Carlo (1970-1975)
- Chevrolet Nova (1969-1972)
- Chevrolet P10 Van (1973)
- Chevrolet P20 (1976, 1979)
- Chevrolet P20 Van (1970-1971, 1973)
- Chevrolet P30 (1975-1994)
- Chevrolet P30 Van (1970-1974)
- Chevrolet R20 (1987-1988)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R2500 (1989)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R3500 (1989-1991)
- Chevrolet Townsman (1969-1972)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V2500 Suburban (1990)
- Chevrolet V30 (1987-1988)
- Chevrolet V3500 (1989-1991)
- GMC C15 (1975-1978)
- GMC C15 Suburban (1975-1978)
- GMC C15/C1500 Pickup (1968-1974)
- GMC C15/C1500 Suburban (1968-1974)
- GMC C1500 (1979-1980)
- GMC C1500 Suburban (1979-1980)
- GMC C25 (1975-1978)
- GMC C25 Suburban (1975-1978)
- GMC C25/C2500 Pickup (1968-1974)
- GMC C25/C2500 Suburban (1968-1974)
- GMC C2500 (1979-1986, 1991-1994)
- GMC C2500 Suburban (1979-1986, 1992-1994)
- GMC C35 (1975-1978)
- GMC C35/C3500 Pickup (1968-1974)
- GMC C3500 (1979-1986, 1988-1994)
- GMC C3500HD (1991-1994)
- GMC C6000 (1985)
- GMC G25 (1975-1976)
- GMC G35 (1976)
- GMC G35/G3500 Van (1973-1974)
- GMC G3500 (1988-1994)
- GMC Jimmy (1973-1974, 1976)
- GMC K15 (1976)
- GMC K15/K1500 Pickup (1968-1974)
- GMC K15/K1500 Suburban (1968-1974)
- GMC K1500 (1980)
- GMC K25 (1976-1978)
- GMC K25 Suburban (1976-1977)
- GMC K25/K2500 Pickup (1968-1974)
- GMC K25/K2500 Suburban (1968-1974)
- GMC K2500 (1991-1994)
- GMC K2500 Suburban (1992-1994)
- GMC K35/K3500 Pickup (1968-1974)
- GMC K3500 (1979-1986, 1988-1994)
- GMC P1500 (1979)
- GMC P25/P2500 Van (1970-1971)
- GMC P35 (1975-1978)
- GMC P35/P3500 Van (1970-1971, 1973-1974)
- GMC P3500 (1979-1994)
- GMC R2500 (1987-1989)
- GMC R2500 Suburban (1987-1991)
- GMC R3500 (1987-1991)
- GMC Sprint (1971-1975)
- GMC V3500 (1987-1991)
