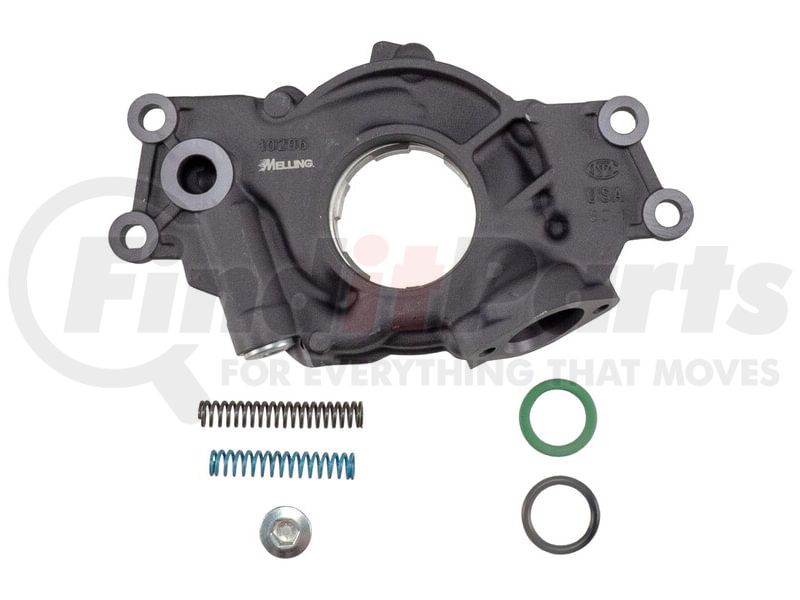

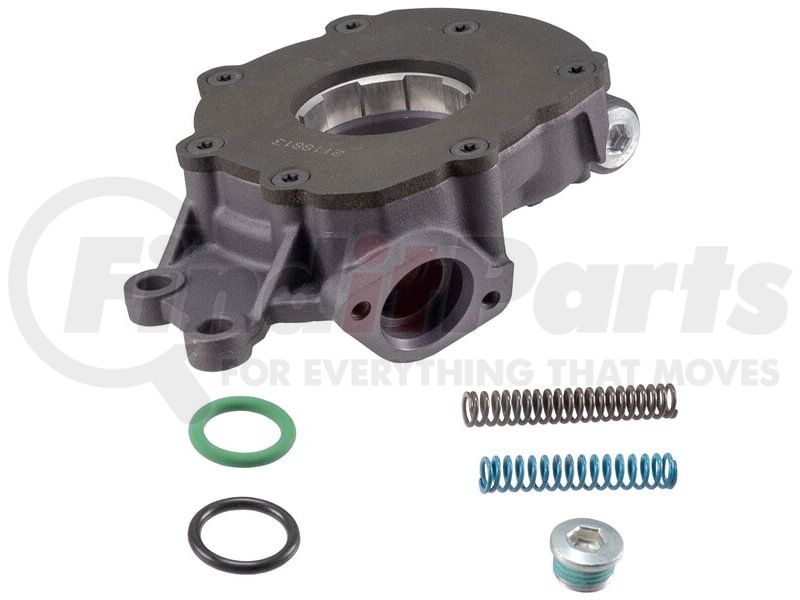

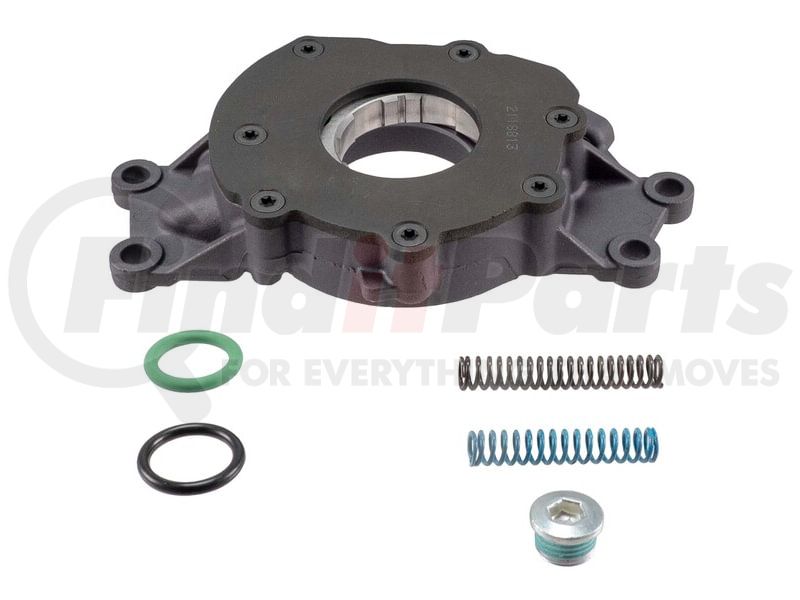

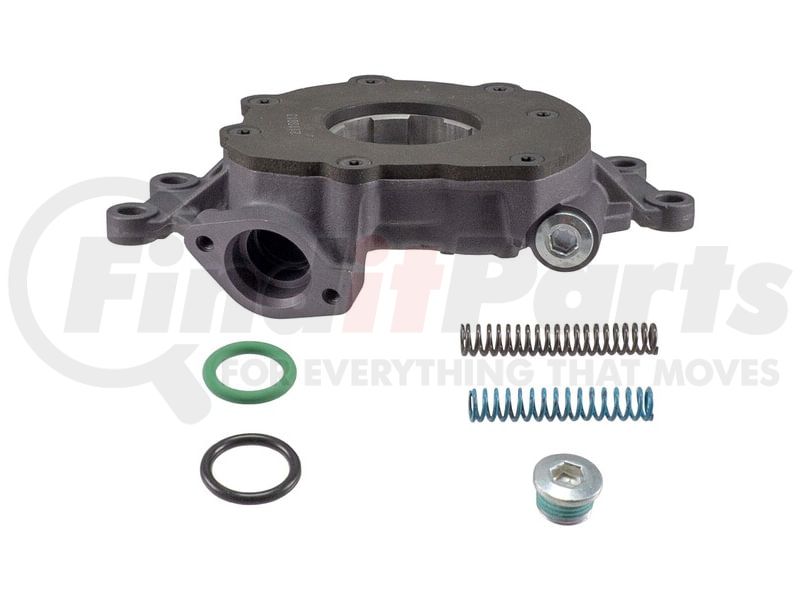

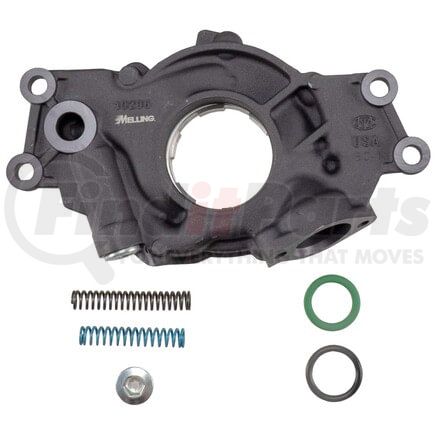

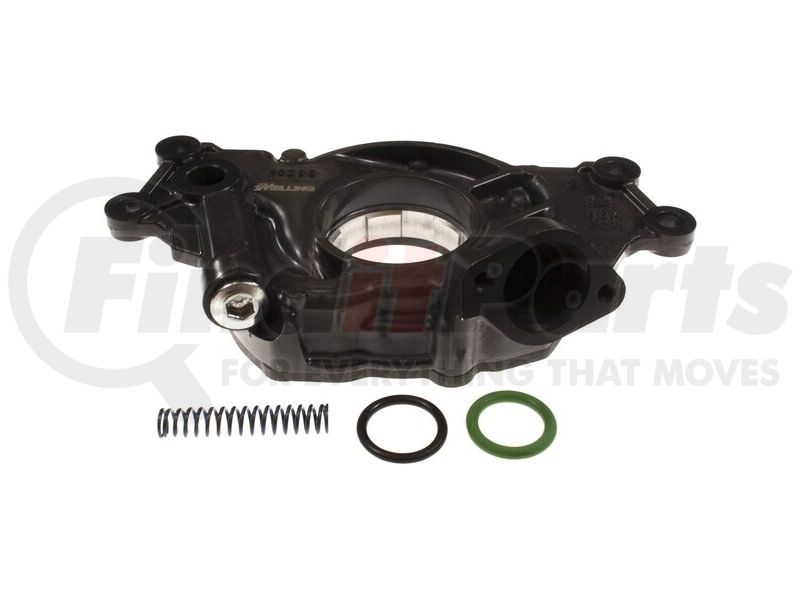

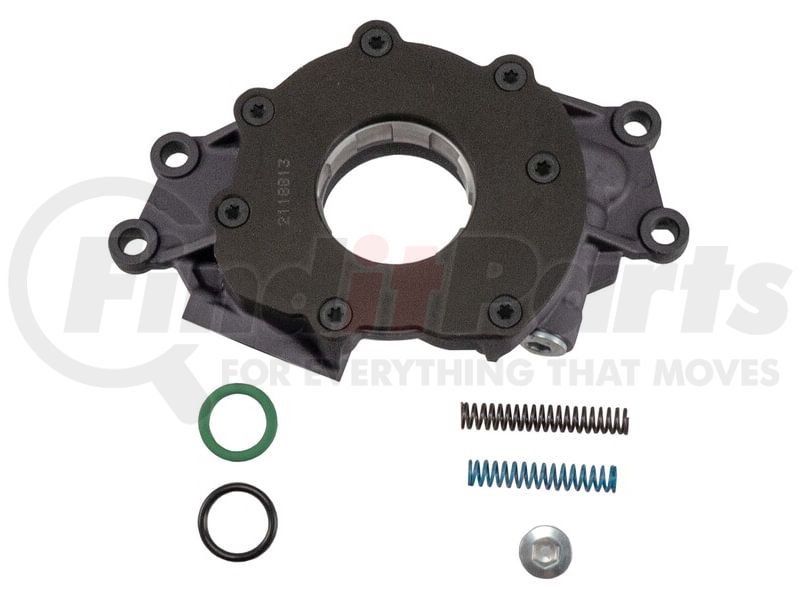

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS 10296 10296 High Performance, High Volume, Standard Pressure, Anodized Hardcoat Oil Pump With Gasket
Tap to view 6 more
$27399
Limited availability at this price!
In Stock
Get as soon as Wednesday, Nov 18
MELLING ENGINE PRODUCTS 10296 Part Description
Manufacturer
Product Description
High Performance Oil Pump
Features & Benefits
- High volume performance upgrade for M295HV.
- 18% increase in volume over M295 and 10295 oil pump.
- Cast aluminum housing is CNC machined and hardcoat anodized.
- Cast iron cover is CNC machined and phosphate coated.
- Cast aluminum housing is CNC machined and phosphate coated.
- The relief valve features a screw in valve plug.
- Includes installed +10 psi higher pressure relief spring and optional lower standard pressure relief spring.
- Uses 7/8" diameter standard bolt on screen.
- Includes O-rings for screen assembly installation.
MELLING ENGINE PRODUCTS 10296 Specifications
Product Attributes
| Title | High Performance Oil Pump |
| Width | 8.250 IN |
| Width | 210.00 MM |
| Height | 4.250 IN |
| Height | 108.00 MM |
| Grade Type | Performance |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Housing Material | Cast Aluminum |
| Drive Type | Crankshaft |
| Oil Pump Type | Rotary |
| Pickup Tube Diameter | 0.875 IN |
| Pickup Tube Diameter | 22.00 MM |
| Mounting Hole Diameter | 0.360 IN |
| Mounting Hole Diameter | 9.00 MM |
| Adjustable Bypass Pressure | Yes |
| Alternate Pressure Springs Included | Yes |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | High Volume |
| Additional Volume Over Stock Percentage | 18% |
| Upgrade for Pump Number | M295HV |
| Optional Spring Pressure 1 | (Blue) 60 PSI |
| Manufactured For | GM LS |
| Manufactured Pressure | (Red) 70 PSI |
| Optional Spring Pressure 2 | COPO 85 PSI |
| Screen Information | 7/8" Bolt On |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Cover Material | Cast Iron |
| Gears Included | Not Applicable |
| Governor Spinner Included | No |
| Guide Included | Not Applicable |
| Inlet Size (mm) | 30.50 |
| Nylon Bushing Included | No |
| Hardware Included | No |
| Inlet Size (in) | 1.200 |
| Intermediate Shaft Included | Not Applicable |
| Pickup Screen Included | No |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Spacer Included | No |
| Washers Included | No |
| Rotor Material | Steel |
| Housing Finish | Anodized |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295513254 |
MELLING ENGINE PRODUCTS 10296 Cross References
| Brand | Part Number |
|---|---|
| MELLING ENGINE PRODUCTS | 10296 |
| Melling Select Performance | 10296 |
MELLING ENGINE PRODUCTS 10296 Fits Vehicles
- Avanti II (2001-2004)
- Buick Rainier (2004)
- Cadillac CTS (2004-2007)
- Cadillac Escalade (2002-2006)
- Cadillac Escalade ESV (2003-2006)
- Cadillac Escalade EXT (2002-2006)
- Chevrolet Avalanche (2007-2012)
- Chevrolet Avalanche 1500 (2002-2006)
- Chevrolet Camaro (1998-2002, 2010-2015)
- Chevrolet Corvette (1997-2007, 2010)
- Chevrolet Express 1500 (2003-2012)
- Chevrolet Express 2500 (2003-2015)
- Chevrolet Express 3500 (2003-2016)
- Chevrolet Express 4500 (2009-2015)
- Chevrolet SSR (2003-2006)
- Chevrolet Silverado 1500 (1999-2013)
- Chevrolet Silverado 1500 Classic (2007)
- Chevrolet Silverado 1500 HD (2001-2003, 2005-2006)
- Chevrolet Silverado 1500 HD Classic (2007)
- Chevrolet Silverado 2500 (1999-2004)
- Chevrolet Silverado 2500 HD (2001-2016)
- Chevrolet Silverado 2500 HD Classic (2007)
- Chevrolet Silverado 3500 (2001-2006)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Silverado 3500 HD (2007-2016)
- Chevrolet Suburban 1500 (2000-2012)
- Chevrolet Suburban 2500 (2000-2011)
- Chevrolet Tahoe (2000-2014)
- Chevrolet Trailblazer (2006-2009)
- Chevrolet Trailblazer EXT (2003-2004)
- Chevrolet W3500 Tiltmaster (2004-2008)
- Chevrolet W4500 Tiltmaster (2003-2010)
- GMC Envoy XL (2003-2004)
- GMC Envoy XUV (2004)
- GMC Savana 1500 (2003-2012)
- GMC Savana 2500 (2003-2015)
- GMC Savana 3500 (2003-2016)
- GMC Savana 4500 (2009-2015)
- GMC Sierra 1500 (1999-2013)
- GMC Sierra 1500 Classic (2007)
- GMC Sierra 1500 HD (2001-2003, 2005-2006)
- GMC Sierra 1500 HD Classic (2007)
- GMC Sierra 2500 (1999-2004)
- GMC Sierra 2500 HD (2001-2011)
- GMC Sierra 2500 HD Classic (2007)
- GMC Sierra 3500 (2001-2006)
- GMC Sierra 3500 Classic (2007)
- GMC Sierra 3500 HD (2007-2011)
- GMC W3500 Forward (2004-2008)
- GMC W4500 Forward (2003-2010)
- GMC Yukon (2000-2014)
- GMC Yukon XL 1500 (2000-2014)
- GMC Yukon XL 2500 (2000-2011)
- Hummer H2 (2003-2007)
- Hummer H3 (2008-2010)
- Hummer H3T (2009-2010)
- Isuzu Ascender (2003-2004)
- Pontiac Firebird (1998-2002)
- Pontiac GTO (2004-2006)
- Saab 9-7x (2008-2009)
