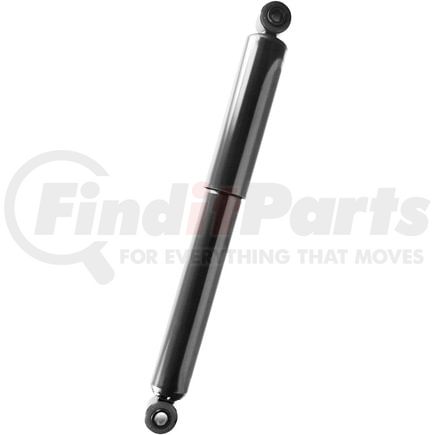

(888) 312-8812 Login SignupMagnum Suspension Shock Absorber
| Lower Mount Code | LS54 |
| Upper Mount Code | LS68 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Internal Construction Type | Twin Tube |
| Adjustable Damping | No |
| Color | Black |
| Finish | Painted |
| Shock Absorber Bore Size | 1-3/4 IN |
| Foam Cell Design | No |
| Shaft Diameter | 18 MM |
| Compressed Length | 15.5625 IN |
| Dust Shield Material | Metal |
| Extended Length | 25.2031 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 9.64 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.7/8" Sleeve OAL |
| Compressed Length | 395.3 MM |
| Extended Length | 640.2 MM |
| Travel Length | 244.9 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Bore Size | 44.5 MM |
| Shock Absorber Bore Size | 1.75 IN |
| Adjustable Damping | No |
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598019806 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| 65166MM, MAE65166 | |
| BLUE BIRD | 88035, 47170000464 |
| BULLDOG HD SHOCKS | HD1215-0122 |
| Dayton Parts | 44185090 |
| GABRIEL | 85090 |
| KYB | 345602, 345604, KG6006, 6460006 |
| NAPA Shocks | 65166 |
| NAVISTAR | AMS65166 |
| OEM | 88035 |
| ROADMASTER | 471700000464 |
| SACHS NORTH AMERICA | 471700000464, 315389 |
| Sachs | 471700000464, 315389, 47170000464 |
