Gates 70983 - M500 Wire Braid Hose - XtraTuff
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description

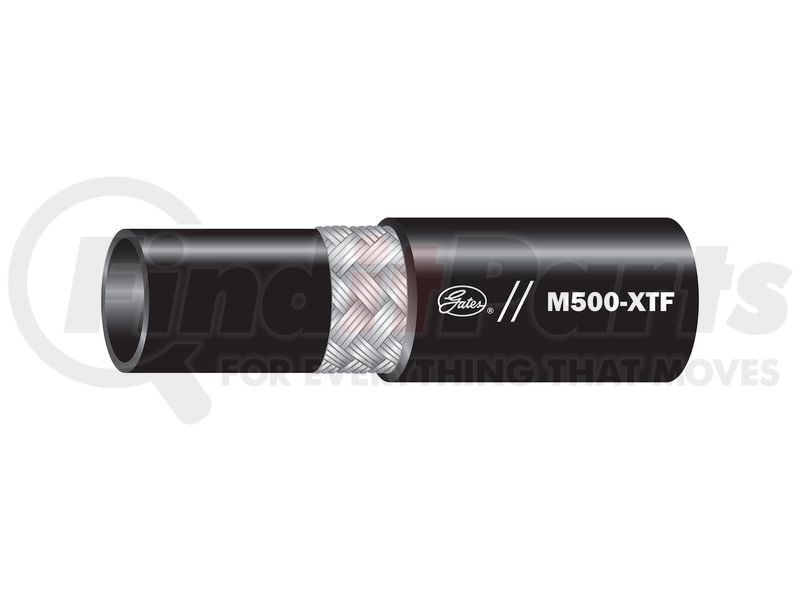

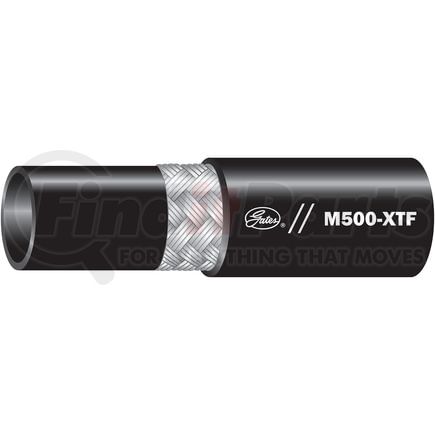

M500 Wire Braid Hose - XtraTuff
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series] and MegaCrimp Couplings [G25 Series]
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Product Attributes
| Product Type | M500 Wire Braid Hose - XtraTuff |
| Industrial Description | 12M500-XTFXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 500 PS |
| Burst Pressure | 2000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 220 FT |
| 9941 | 12 |
| Inside Diameter | .75 IN |
| Outside Diameter | 1.09 IN |
| 9879 | 4.7 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | NBR |
| Reinforcement Material | One Braid, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber |
| Cover Type | Oil, Abrasion Resistant & Flame Resistance - XtraTuff Cover |
| Cover Color | Black |
| 9856 | GlobalSpiral, MegaCrimp |
| 9453 | N/A |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| UPC | 00770075226444 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
