ADVICS A6R041 Part Description
Manufacturer
Product Description

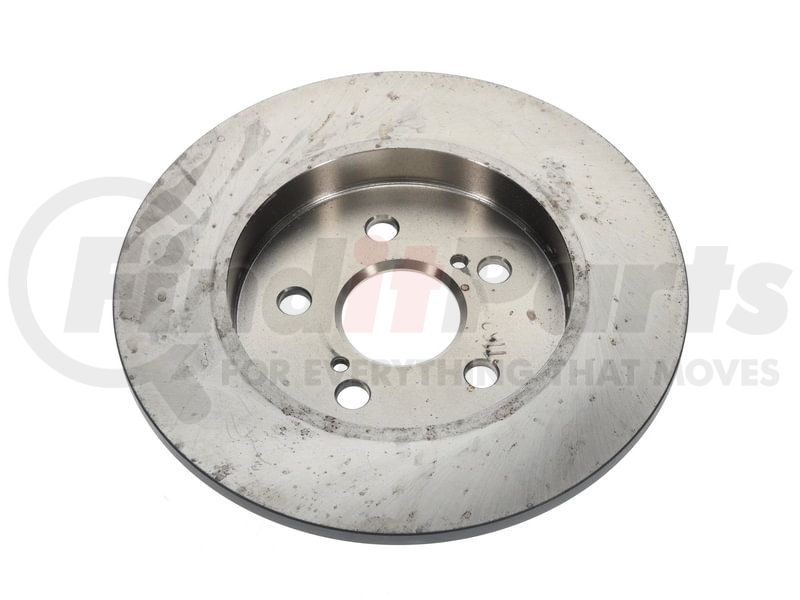

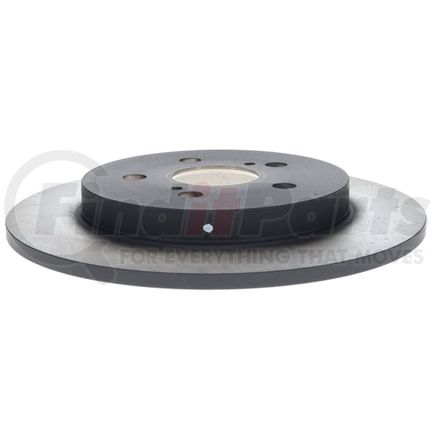

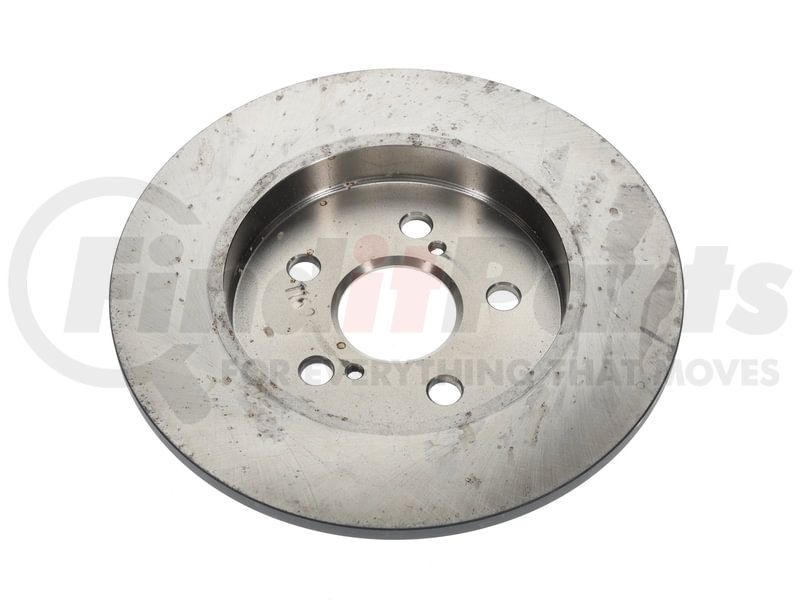

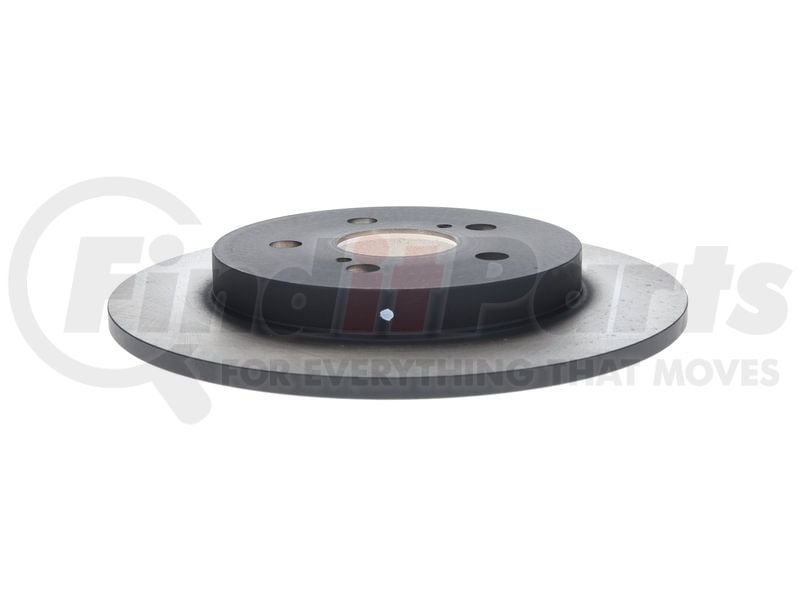

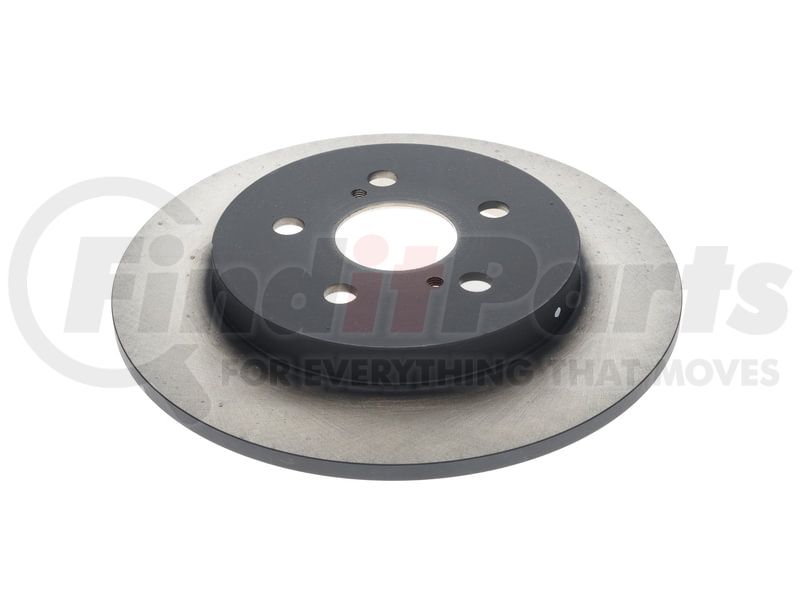

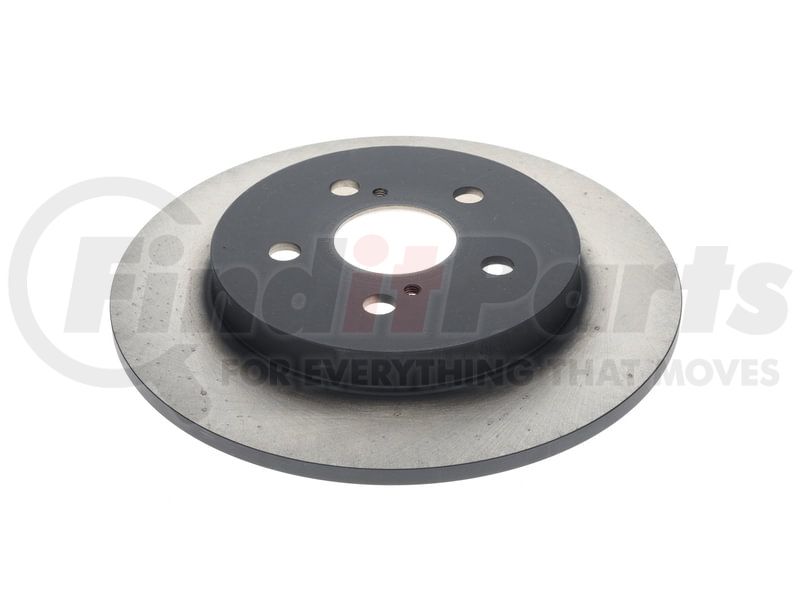

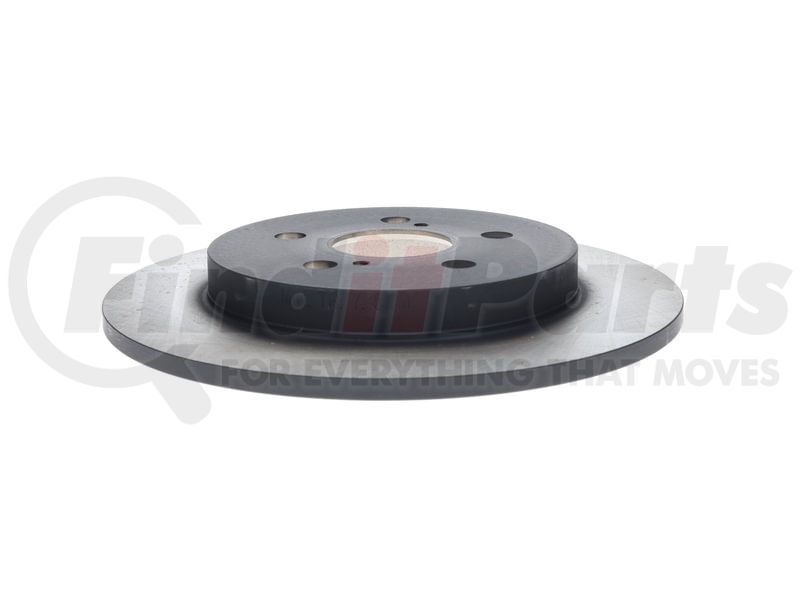

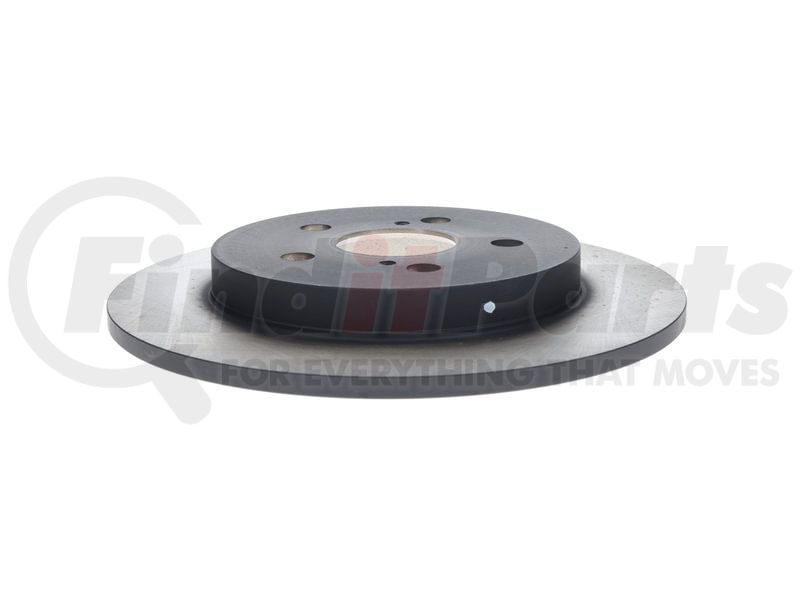

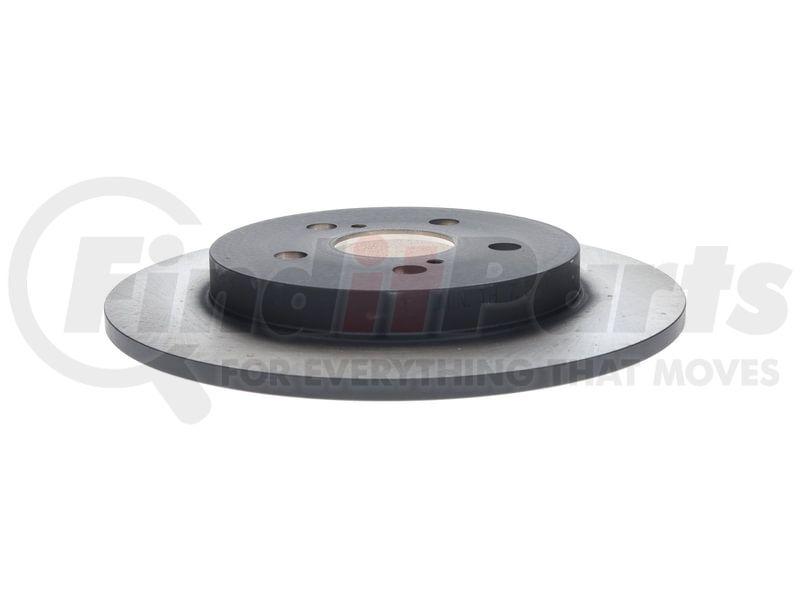

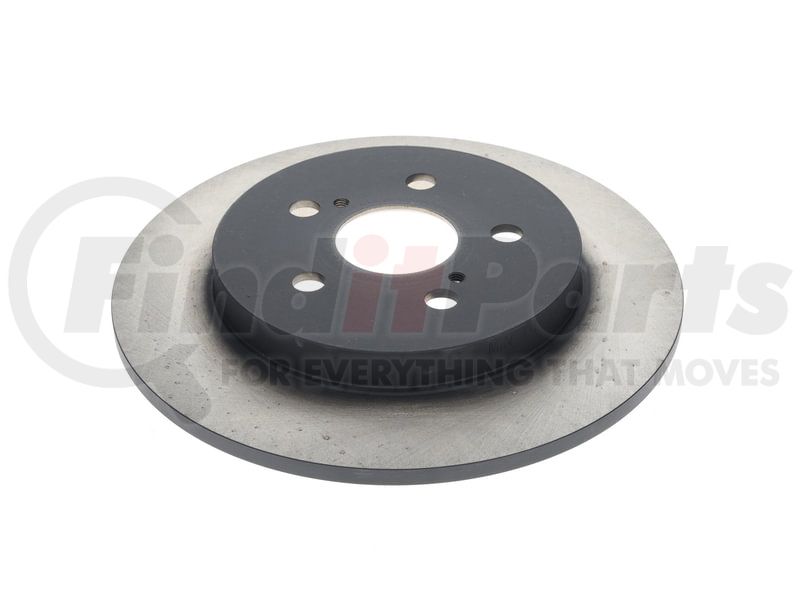

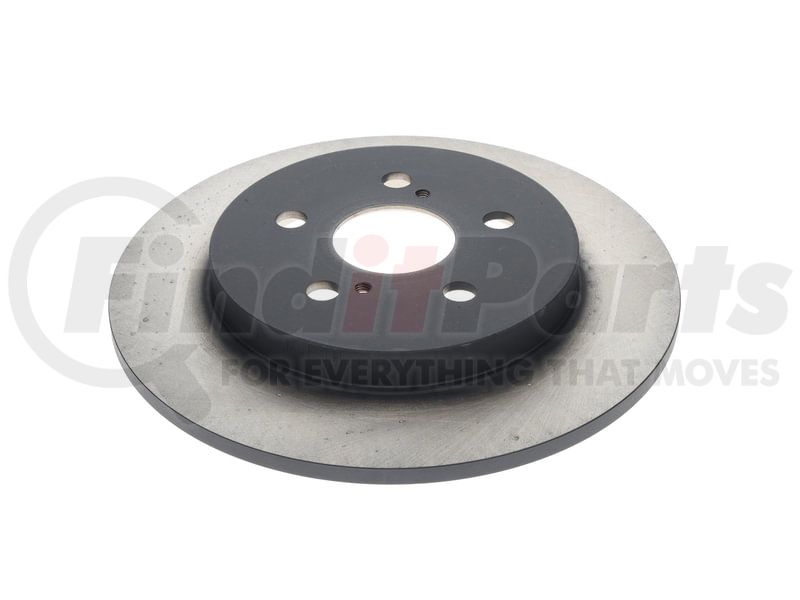

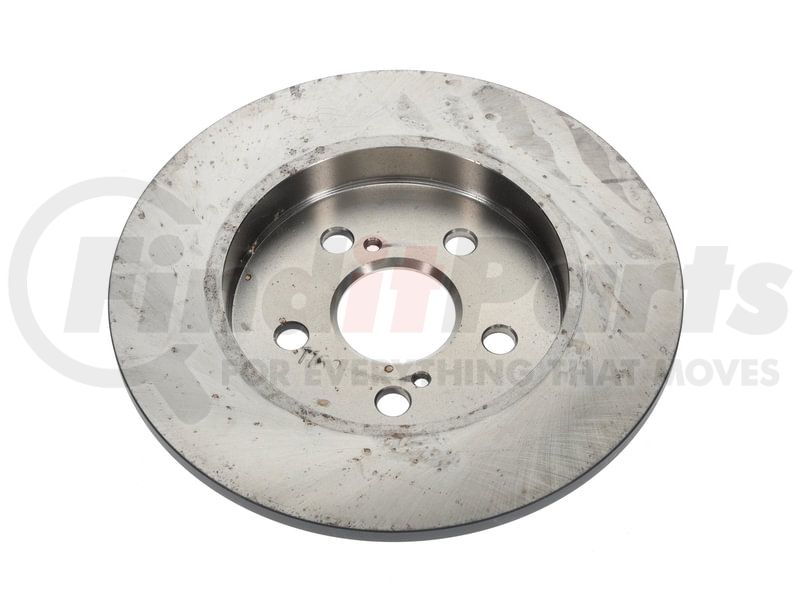

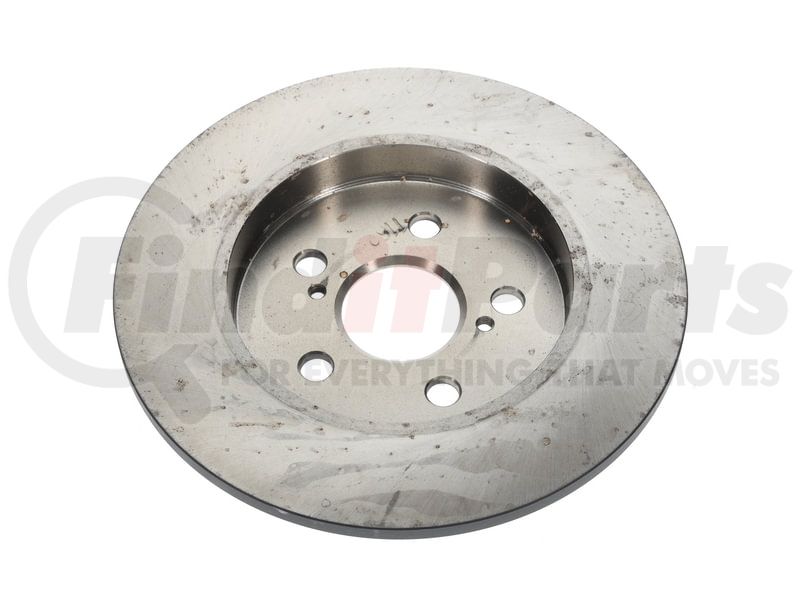

ADVICS OE Disc Brake Rotor
Features & Benefits
- Constructed to OEM weight, vane count and air gap using high carbon metallurgy to maintain thermal stability reducing opportunities for warping while providing longer pad and rotor life. Corrosion protection coating applied to match OEMs.
ADVICS A6R041 Specifications
Product Attributes
| Diameter | 259mm |
| Material | High Carbon |
| Discard Thickness | 7.5 MM |
| Nominal Thickness | 9 MM |
| Disc Finish | Non-Directional |
| Hat Finish | Coated |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Inside Diameter | 156 MM |
| Overall Height | 30 MM |
| Outside Diameter | 259 MM |
| Mounting Bolt Hole Quantity | 5 |
| Grade Type | Premium |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Center Hole Diameter | 55 MM |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 14.3 MM |
| 9448 | 5 EA |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309930 |
| UPC | 04562372092596 |
ADVICS A6R041 Cross References
| Brand | Part Number |
|---|---|
| ADVICS | A6R041 |
| AISIN | A6R041 |
| Bendix | PRT5854 |
| Centric Parts | 120.44165, 125.44165 |
| Dura Corp | BR900756 |
| General Motors | 19184534 |
| IMC | A6R041 |
| N/A | 580704, BR900756, YH274780P, A6R041, 604-76083, 320.44165F |
| Raybestos Brakes | 580704 |
| Toyota | 42431-02200, 42431-12310 |
| WORLDPAC | A6R041 |
| Wagner Brake | BD126558 |
ADVICS A6R041 Fits Vehicles
- Toyota Prius Plug-In (2012-2015)
- Toyota Prius AWD-e (2019-2022)
- Toyota Prius Prime (2017-2022)
- Lexus CT200h (2011-2017)
- Toyota Prius (2010-2022)
- Pontiac Vibe (2009-2010)
- Toyota Matrix (2009-2014)
- Toyota Corolla (2009-2021)
