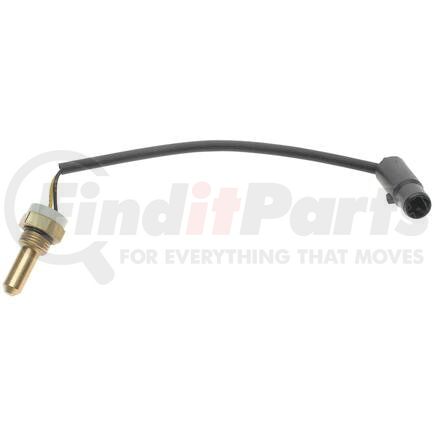

(888) 312-8812 Login SignupSTANDARD IGNITION TX116 Coolant Fan Switch
Tap to view 2 more
$56.32
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
STANDARD IGNITION TX116 Part Description
Manufacturer
Product Description
Coolant Fan Switch
Features & Benefits
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
- In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller
- In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
- In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point
- Robust design and high grade materials meet the stringent demands of today's service professional
- The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
STANDARD IGNITION TX116 Specifications
Product Attributes
| Open at Idle | Yes |
| Terminal Quantity | 2 |
| Overall Width (MM) | 14.478 |
| Switch Actuation Style | Toggle |
| Switch Shape | Rectangular |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Thread Size | 16MMX1.50 |
| Voltage | 12 |
| Width - Inches | 0.57 |
| Wire Quantity | 2 |
| Wiring Harness Included | Yes |
| Housing Material | Plastic, Metal |
| Harness Length - mm | 203.2 |
| Harness Length - inches | 8 |
| Hardware Included | No |
| Finish | Plastic |
| Connector Shape | Rectangular |
| Connector Quantity | 1 |
| Connector Gender | Female |
| Color/Finish | Black, Gold |
| Bulb Included | No |
| Attachment Method | Plug In |
| Mounting Bracket(s) Included | No |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| Warranty Distance UOM | MI |
| Warranty Distance | 36000 |
| Harmonized Tariff Code (HTS) | 8536509065 |
| Country of Origin (Primary) | KR |
| UPC | 00091769700669 |
STANDARD IGNITION TX116 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 19146246, 213-4074, 88923759, E1865A |
| Airtex | 1S1118 |
| BWD | WT5127 |
| BWD Intermotor | WT5127 |
| CARQUEST Premium By WELLS | 53-13704 |
| Duralast | SW1120 |
| Echlin | TS5727 |
| Hyundai | 2536033011, 2536033101 |
| Import Direct | 17-1283 |
| MTE-THOMSON | 816 |
| N/A | 0320001 |
STANDARD IGNITION TX116 Fits Vehicles
- Hyundai Elantra (1993)
- Hyundai Sonata (1992-1993)
