CENTRIC 103.01540 Part Description
Manufacturer
Product Description

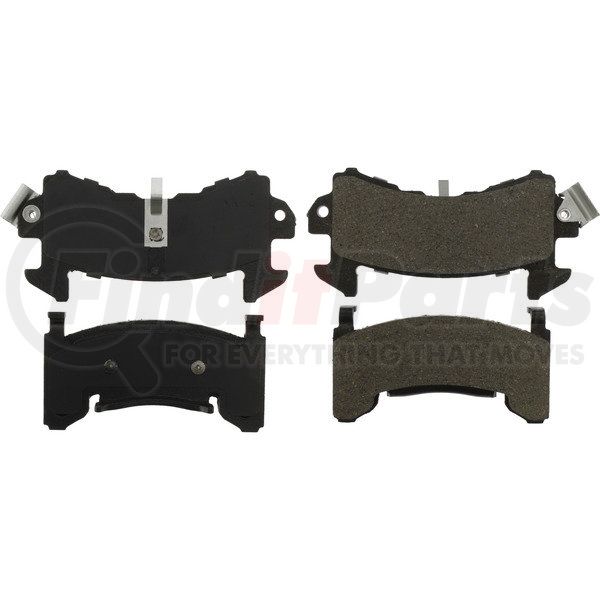

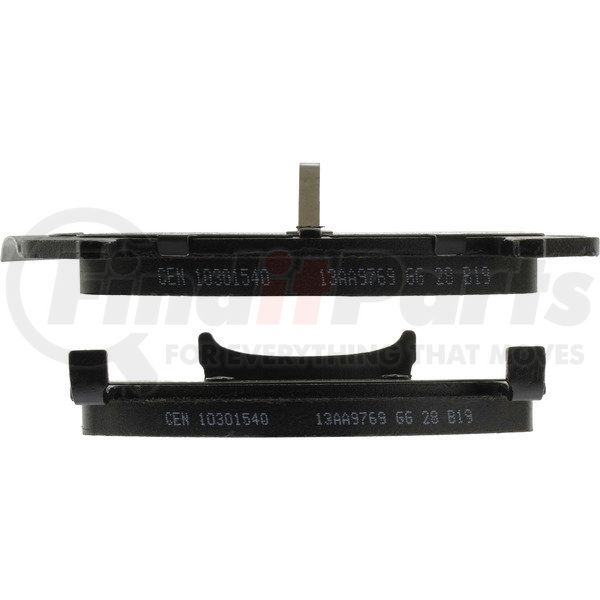

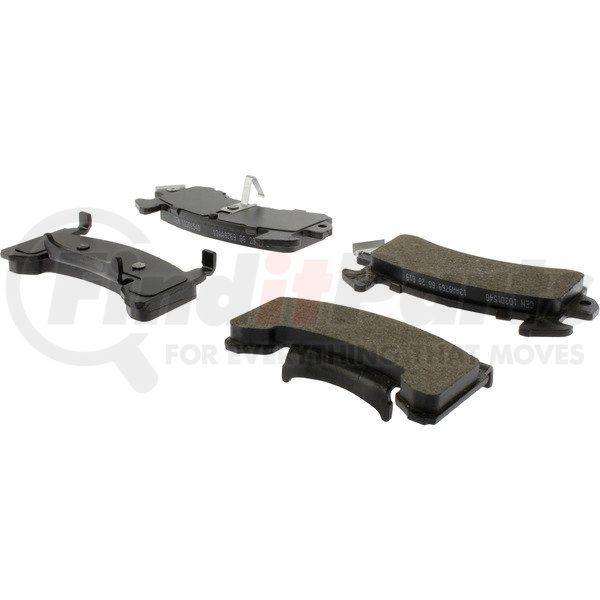

C-Tek Ceramic Brake Pads with Shims
Features & Benefits
- Shimmed to eliminate noise and vibration. Formulated for reduced noise. Advanced Ceramic compounds. Post cured for consistent performance throughout the service life of the brake pad. 100% Asbestos free. Scorched for easy bed-in.
- C-TEK® brake pads are OE matched providing consistent stopping power
- C-TEK(R) brake pads are OE matched providing consistent stopping power
- OE Matched
- Vibration Damping Shims
- For optimal noise control over a wide temperature range
- OE Matched Slots and Chamfers
- Slots & chamfers match OE design, allowing for less noise, vibration, and harshness.
CENTRIC 103.01540 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Notes01 [cntrc] | 2 Pads with 1 Wear Sensor |
| Hardware Kit Number [cntrc] | 117.62014 |
| Product Grade [cntrc] | Standard |
| Weight [cntrc] Kgs | 1.55 |
| Weight [cntrc] Lbs | 3.40 |
| Pad Wear Sensor Included | Yes |
| Friction Material Composition | Ceramic |
| Mounting Hardware Included | No |
| Pad Shims Included | Yes |
| Friction Material Attachment | Integrally Molded |
| Pad Quantity | 4 |
| Prepared For Pad Wear Sensor | Yes |
| Outer Pad Height | 64.800 MM |
| Outer Pad Height | 2.551 IN |
| Inner Pad Height | 73.200 MM |
| Inner Pad Height | 2.882 in |
| Outer Pad Width | 123.100 MM |
| Outer Pad Width | 4.846 IN |
| Inner Pad Width | 152.700 MM |
| Inner Pad Width | 6.012 in |
| Outer Pad Overall Thickness | 13.300 MM |
| Outer Pad Overall Thickness | 0.524 in |
| Inner Pad Overall Thickness | 14.700 MM |
| Inner Pad Overall Thickness | 0.579 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305090 |
| UPC | 00805890888390 |
CENTRIC 103.01540 Cross References
| Brand | Part Number |
|---|---|
| BRAKE PRO | BKP154CH |
| MAGMA PRODUCTS | MXD154C |
| N/A | TS7070A, D202, D138, D154, 7480AD202, 7480AD767, 7070AD138, 7070AD154, 7070AD202, 7070D138, 7070D154, 7634D767, D767, 7890D988, D988, SGD154C, SGD988C |
| RAYBESTOS | ATD154C, SGD154M, ST44R154T14, SP154TRH, SP154XPH, ST45R154T14, EHT154, SGD154C, ST38R154T14, ST42R154T14, MGD154CH, MGD154MH, PG-D154M, ST43R154T14, 86-SGD154ME |
| VORTEX | VXD154CH |
CENTRIC 103.01540 Fits Vehicles
- Oldsmobile Toronado (1979-1985)
- Chevrolet S10 (1982-2003)
- Chevrolet Blazer (1995-1997)
- Oldsmobile Cutlass Supreme (1978-1988)
- Oldsmobile Cutlass Cruiser (1980-1983)
- Chevrolet S10 Blazer (1983-1994)
- Buick Riviera (1979-1985)
- Buick Regal (1978-1987)
- Oldsmobile Cutlass Calais (1978-1984)
- Oldsmobile Cutlass Salon (1978-1980, 1985-1987)
- Oldsmobile Bravada (1991-1994, 1996)
- Chevrolet Monte Carlo (1978-1988)
- Chevrolet Malibu (1978-1983)
- Chevrolet LLV (1987-1995)
- Buick Century (1978-1981)
- Pontiac Sunburst (1985-1986)
- Pontiac Acadian (1982-1986)
- Isuzu Hombre (1996-2000)
- GMC Typhoon (1992-1993)
- GMC Syclone (1991)
- GMC Sonoma (1991-2003)
- GMC S15 (1982-1990)
- GMC Jimmy (1992-1997)
- GMC S15 Jimmy (1983-1991)
- Chevrolet El Camino (1978-1987)
- Chevrolet Camaro (1982-1992)
- GMC Caballero (1978-1987)
- Pontiac LeMans (1978-1981)
- Pontiac Grand Prix (1975, 1978-1987)
- Pontiac Grand LeMans (1978-1983)
- Pontiac Grand Am (1978-1980)
- Cadillac Seville (1980-1985)
- Oldsmobile Cutlass (1978-1981, 1985-1987)
- Pontiac Firebird (1975, 1982-1992)
- Pontiac Bonneville (1982-1986)
- Cadillac Fleetwood (1981-1982)
- Cadillac Eldorado (1979-1985)
- Cadillac DeVille (1978-1981)
