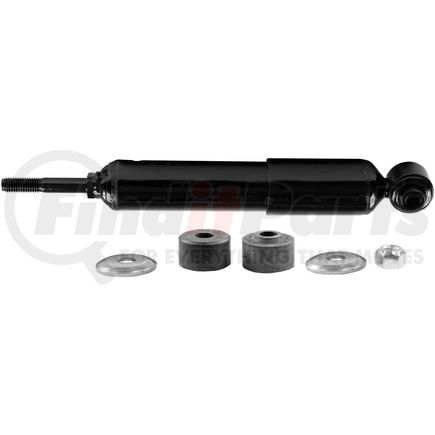

MONROE 66202 Part Description
Manufacturer
Features & Benefits
- INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient and consistent control (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
MONROE 66202 Specifications
Product Attributes
| Compressed Length | 9.32 IN |
| Compressed Length | 236.7 MM |
| Extended Length | 12.85 in |
| Extended Length | 326.4 MM |
| Travel Length | 3.53 in |
| Travel Length | 89.7 MM |
| Lower Mount Type | Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Lower Mount Type | Stem |
| Lower Mount Code | S6 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2.7/16" Sleeve OAL |
| Upper Mount Code | LS77 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01482 |
| Body Color | Gray |
| Color | Gray |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598126672 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 66202 Cross References
| Brand | Part Number |
|---|---|
| 66202MM, G3GZ2021702AA | |
| Gold Shock Absorber | 9161064 |
| International | 2605839C1, 2605839C91 |
| LINK CAB | 12019025 |
| Link | 12019025 |
| NAPA Shocks | 66202 |
MONROE 66202 Fits Vehicles
- International 7600 (2003-2007, 2009-2017)
- International 7400 (2002-2020)
- International WorkStar 7400 (2015-2020)
- International WorkStar 7300 (2015-2016)
- International WorkStar 7600 (2008-2019)
