CENTRIC 120.67078 Part Description
Manufacturer
Product Description

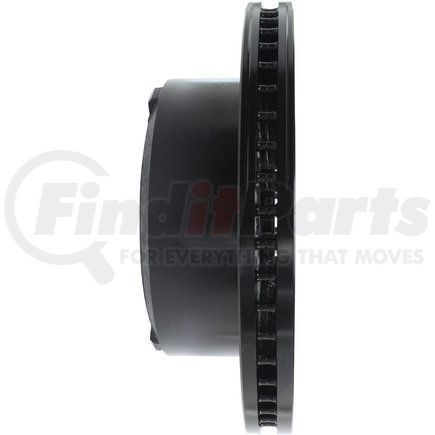

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.67078 Specifications
Product Attributes
| Misc Holes [cntrc] | 5 |
| Max Pb Drum Dia [cntrc] In | 9.575 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] Mm | 243.200 |
| OEM Vane Count [cntrc] | 51 |
| Vane Style [cntrc] | Straight |
| Hat Id [cntrc] In | 9.528 |
| Weight [cntrc] Lbs | 43.150 |
| Disc Mounting [cntrc] | Behind the Hub |
| Hat Id [cntrc] Mm | 242.000 |
| Weight [cntrc] Kgs | 19.610 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 37.400 MM |
| Discard Thickness | 1.472 IN |
| Nominal Thickness | 39.000 MM |
| Nominal Thickness | 1.535 IN |
| Hat Finish | Painted |
| Overall Height | 124.000 MM |
| Overall Height | 4.882 IN |
| Outside Diameter | 390.000 MM |
| Outside Diameter | 15.354 IN |
| Mounting Bolt Hole Quantity | 10 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 241.000 MM |
| Nominal Drum Diameter | 9.488 IN |
| Bearings Included | No |
| Center Hole Diameter | 5.488 IN |
| Center Hole Diameter | 139.400 MM |
| Mounting Bolt Hole Circle Diameter | 163.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.421 IN |
| Mounting Bolt Hole Diameter | 12.860 MM |
| Mounting Bolt Hole Diameter | 0.506 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890621775 |
CENTRIC 120.67078 Cross References
| Brand | Part Number |
|---|---|
| 52013843AA, 52013843AB, 5C3Z2C026CA, 6011139C1, 68174125AA, 68174125AB, 780777, 781830 | |
| N/A | BD126443, E125-72-083, 843AB, 141394, 3C342C026C, 158932, BR900359, YH145731, 42250, 27421, 53060, 42250G, 52013843AA, 52013843AB, 0053466225, 0053466225001, 53466225, 6011139C1, 68174125AA, 68174125AB, 68415393AA, 5C3Z2C026CA, 2608016C1, 780777, 850300, 54138, 880374, 880374CR, 90040116, E12570120, E12572083 |
| PRONTO | BR90138202 |
| RAY | 680374 |
| RAYBESTOS | 781830, 781830R |
| Raybestos Brakes | 680374, 781830, 781830R |
| WAGNER | BD126443 |
CENTRIC 120.67078 Fits Vehicles
- International TerraStar (2010-2015)
- International CF600 (2005-2010)
- International CF500 (2005-2010)
- IC Corporation AC Commercial Bus (2012-2015)
- Dodge Ram 5500 (2008-2010)
- Ford LCF (2006-2010)
- IC Corporation AE School Bus (2015)
- Ford F-550 Super Duty (2005-2016)
- Dodge Ram 4500 (2008-2010)
- Ford F-450 Super Duty (2005-2016)
- Ram 5500 (2011-2023)
- Ram 4500 (2011-2022)
- Sterling Truck Bullet 55 (2008-2009)
- Sterling Truck Bullet 45 (2008-2009)
