RAYBESTOS 781830 Part Description
Manufacturer
Product Description

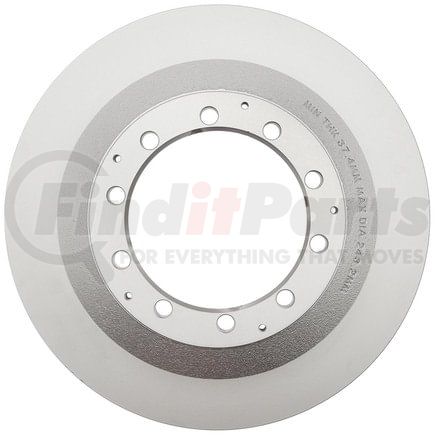

Raybestos Specialty - Truck Coated Brake Rotor
Application Summary
2023-2013 Ram 5500 Rear, 2023-2013 Ram 4500 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 781830 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5.488 IN |
| Center Hole Diameter | 139.4 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.472 IN |
| Discard Thickness | 37.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 10.622 IN |
| Inside Diameter | 269.8 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 6.417 IN |
| Mounting Bolt Hole Circle Diameter | 163 MM |
| Mounting Bolt Hole Diameter | 0.512 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.535 IN |
| Nominal Thickness | 39 MM |
| Outside Diameter | 15.354 IN |
| Outside Diameter | 390 MM |
| Overall Height | 4.886 IN |
| Overall Height | 124.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 10 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213211634 |
RAYBESTOS 781830 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH517076C, YH517076P, YH524453P |
| AUTOZONE | 42250DL |
| BRAKEBEST | 772358RGS, 781830, 781830R |
| CENTRIC | 120.67078, 121.67078, 126.67078CSL, 126.67078CSR, 126.67078SL, 126.67078SR, 127.67078L, 127.67078R, 320.67078F |
| CHRYSLER | 68174125AA, 68174125AB, 68415393AA |
| Centric Parts | 120.67078, 121.67078, 126.67078CSL, 126.67078CSR, 126.67078SL, 126.67078SR, 127.67078L, 127.67078R, 320.67078F, 320.67078 |
| DURA CORP | BR901382 |
| DuraGo | 60415, 900359, BR60415, BR900359, BR901382, BR901382-01, BR901382-02 |
| Dynamic Friction Company | 600-40116 |
| Parts Master | 901382 |
| Performance Friction | 388.125.01 |
| PowerStop | PSR6620813 |
| Qualis | 42250, 53060 |
| Ram | 68415393AA |
| WORLDPAC | 1407-524453 |
| Wagner Brake | BD180839E |
RAYBESTOS 781830 Fits Vehicles
- International TerraStar (2010-2015)
- International CF600 (2005-2010)
- International CF500 (2005-2010)
- Sterling Truck Bullet 55 (2008-2009)
- Sterling Truck Bullet 45 (2008-2009)
- IC Corporation AE School Bus (2015)
- IC Corporation AC Commercial Bus (2012-2015)
- Ford LCF (2006-2010)
- Ford F-550 Super Duty (2005-2016)
- Ford F-450 Super Duty (2005-2016)
- Dodge Ram 5500 (2008-2010)
- Dodge Ram 4500 (2008-2010)
- Ram 5500 (2011-2023)
- Ram 4500 (2011-2023)
