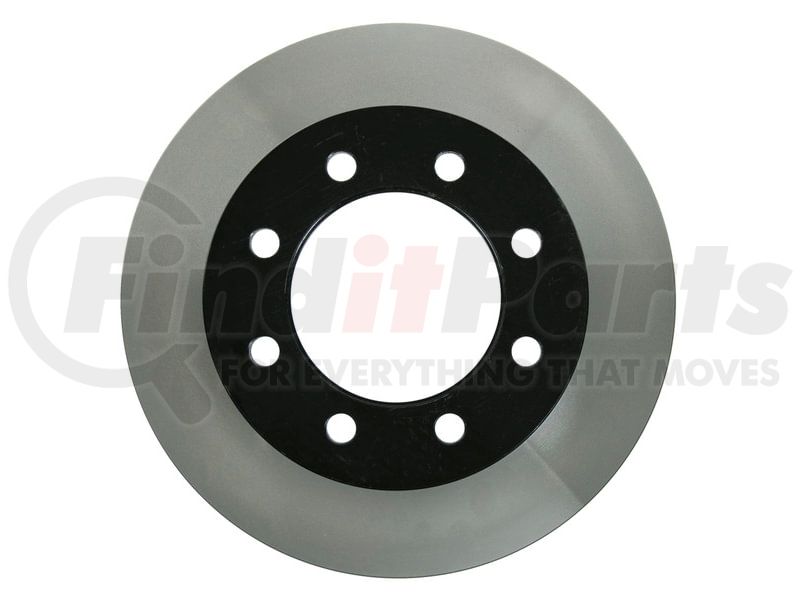

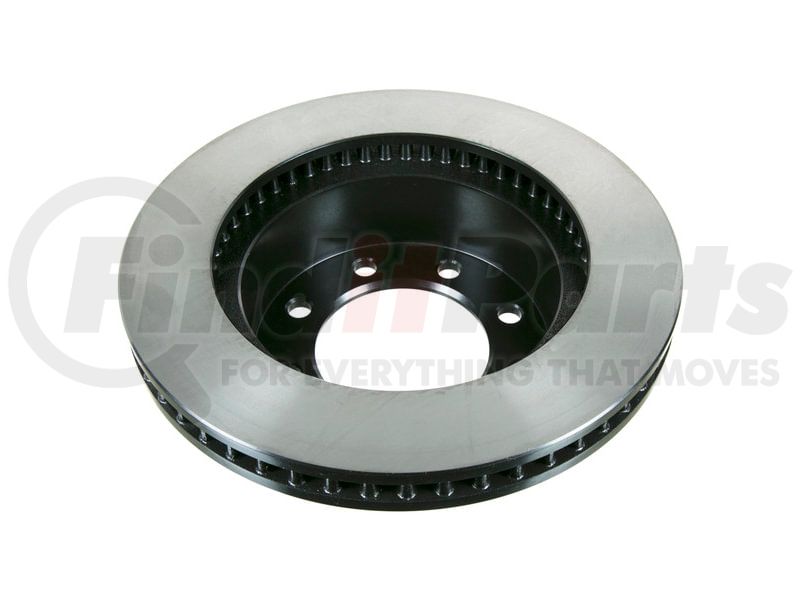

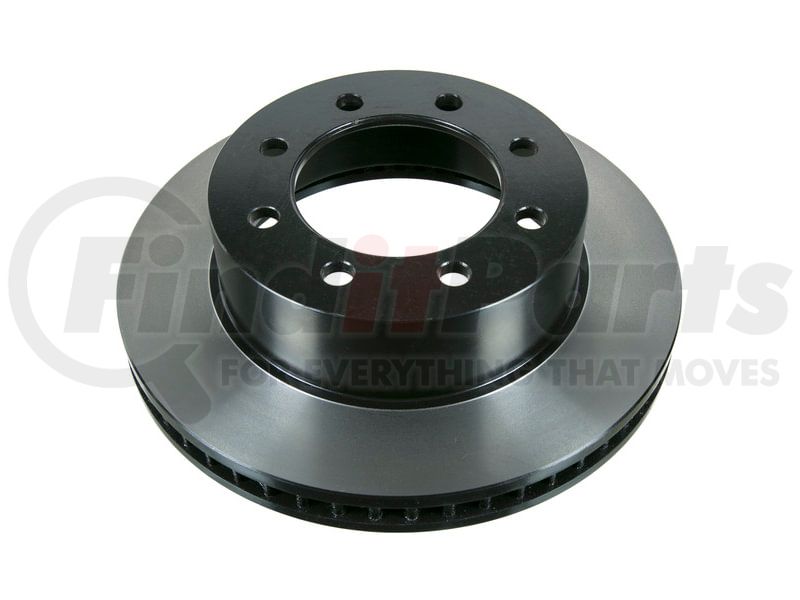

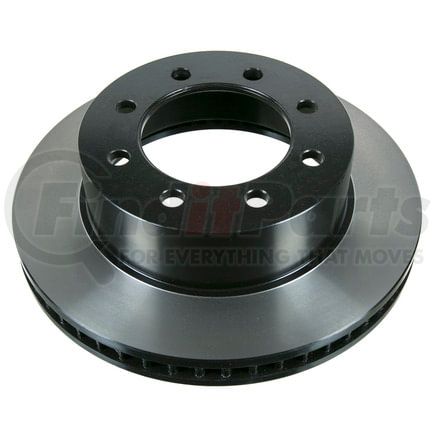

(888) 312-8812 Login SignupWAGNER BD126045E Wagner Brake BD126045E Disc Brake Rotor
Tap to view 2 more
MSRP: $157.82
$11499
Save $42.83
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 18
WAGNER BD126045E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2006-2008 Dodge Ram 1500 (Front) (Body: Extended Crew Cab Pickup / Qualifier: 8 Stud Wheel, with 353 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2003-2008 Dodge Ram 2500 (Front) (Qualifier: 8 Stud Wheel, with 353 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2003-2008 Dodge Ram 3500 (Front) (Qualifier: 8 Stud Wheel, with 353 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2005-2008 Dodge Ram 4000 (Front) (Qualifier: 8 Stud Wheel, with 353 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD126045E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 1.398 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 13.898 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 4.012 in |
| Part Description | Disc Brake Rotor |
| Height | 101.9 MM |
| Stud/Lug Hole Quantity | 8 |
| Outside Diameter | 353.0 MM |
| Overall Height | 101.9 MM |
| Overall Height | 4.012 IN |
| Nominal Thickness | 35.5 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536711124 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD126045E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A1482, 18A1482SD, 18A1482A, 18A1482AC |
| Aimco | 53012 |
| Autospecialty | AR8771 |
| Bendix | 145456 |
| Bosch | 16010169 |
| BrakeBest Select Drum/Rotor | 780143RGS, 780143PRM |
| Brembo | 27384 |
| CENTRIC | 120.67061 |
| Carquest | 53012 |
| Carquest Platinum Plus Coated Rotors | YH145456C |
| Carquest Wearever | YH145456 |
| Centric Parts | 120.67061, 121.67061, 12067061, 12167061, 120.67061CRY, 320.67061F |
| Chrysler | 5083697AA, 52121050AA |
| DuraGo | BR53012, BR53012-01, BR53012-02 |
| Duralast | 53012 |
| Dynamic Friction Company | 600-40102, 604-40102 |
| NAPA | 48880143, 880143 |
| NAPA BRAKES | 880143CR, RA880143, 48880143, 248880143 |
| PowerStop | AR8771, AR8771EVC |
| Pro-Series | PS53012, C26045 |
| RAYBESTOS | 780143, 780143R |
| Raybestos Brakes | 780143, 780143R, 780143FZN, 780143R2, 780143PER |
| Winhere | UR000982 |
| Worldparts Synergy | WS1153012 |
WAGNER BD126045E Fits Vehicles
- Dodge Ram 4000 (2005-2008)
- Dodge Ram 1500 (2006-2008)
- Dodge Ram 3500 (2003-2008)
- Dodge Ram 2500 (2003-2008)
